Bonn CM-1043T Owner's Manual

Commercial microwave ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CM-1052T
CM-1043T
1000 watts
1200 watts
(CM-1052T)
(CM-1043T)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-1043T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bonn CM-1043T

Summary of Contents for Bonn CM-1043T

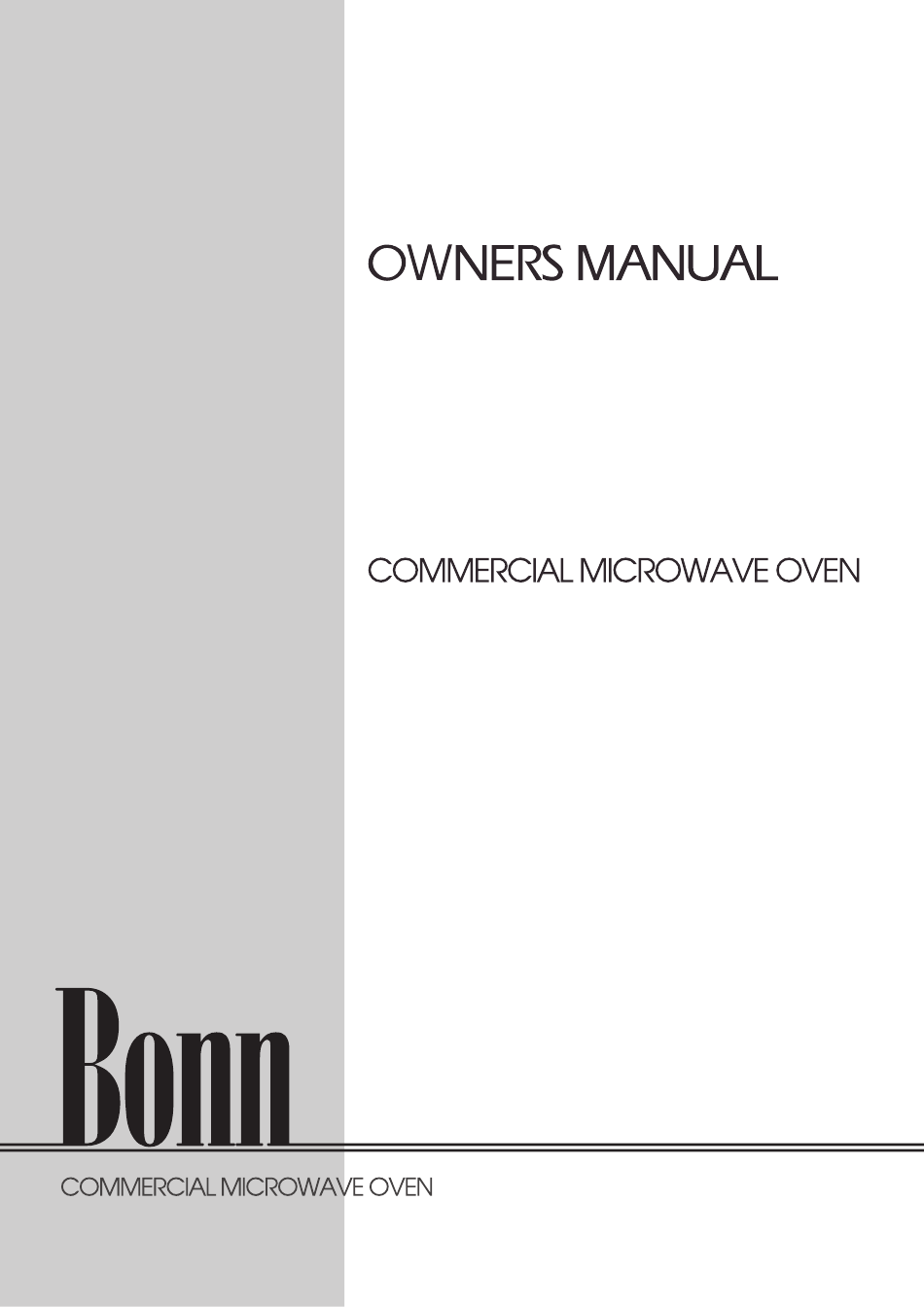

  • Page 1 CM-1052T CM-1043T 1000 watts (CM-1052T) 1200 watts (CM-1043T)

  • Page 2: Table Of Contents

    Using this Instruction Booklet You have just purchased a Bonn microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven: • Safety precautions • Suitable accessories and cookware • Useful cooking tips At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily.

  • Page 3: Features Diagram

    FEATURES DIAGRAM CM-1052T CM-1043T ① ③ ② ④ ⑨ ⑥ PROGRAM - Used to save cooking data. START /+30 SEC - Used to start the oven and also used to set a reheat time. DEFROST - Used to defrost foods for time.

  • Page 4: Operation Procedure

    OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3- pronged 240V AC 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the plate tray. 3.

  • Page 5: Controls

    CONTROLS TIME DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch The DEFROST indicator lights and indicator) is displayed. STANDBY 2. Touch number pads for the The display will show the numbers you desired defrosting time.
  • Page 6 COOKING IN ONE STAGE 1. Touch pad. The MICROWAVE and % indicators light. (Select desired power level.) The display will show what you touched. 2. Touch the number pads for the This example shows power level 60. cooking time. The display will show the numbers you pressed in the order you touched.

  • Page 7: Memory Function

    MEMORY FUNCTION This microwave oven has 10 programmable pads (1~10). 1. Touch # pad. The display will show “MEMOY ”. 2. Touch the number pads. ex)5 The display will show “PROG-05”. 3. Touch POWER pad. (Select The MICROWAVE, % and Stage 1 indicators desired power level.) light.
  • Page 8 +30 SEC +30 SEC allows you to reheat for 30 seconds at 100% (full power) by simply touching the +30 SEC pad. By repeatedly touching the +30 SEC pad, you can also extend reheating time to 5 minutes by 30 second increments.
  • Page 9 POWERSAVE FEATURE The oven feature as an automatic power save function. At any time the oven is not in operation for more than 10 seconds the oven display will become blank. Opening the door or touching the keypad will re activate the display. TO STOP THE OVEN WHILE THE OVEN IS OPERATING 1.

  • Page 10: Safety Precautions

    SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

  • Page 11: Specifications

    SPECIFICATIONS SPECIFICATIONS Model Bonn CM-1052T Model Bonn CM-1052T Bonn CM-1043T Power Input 230V/50Hz 1560 watts Power Input 230V/50Hz, 1560 watts 230V/50Hz, 1860 watts Current Input 7 amps Current Input 7.0 amps 8.5 amps Power Output 1000 watts Power Output 1000 watts...

  • Page 12: Warranty

    Warranty This Bonn Commercial Microwave Oven is supplied with a 13 month back to base warranty from the date of purchase. This warranty covers the cost of parts for 13 months from the date of purchase. It also covers the cost of labour for the first 13 months from date of purchase.

  • Page 13: Contact

    TESTING INDIVIDUAL COMPONENT S...
  • Page 14 COMPONENTS TEST PROCEDURE RESULTS c::::i----Antenna J------3==,.-- Gasket Chassis Filament NOTE: When testin g the magnetron, be sure to install the magnetron gasket in the correct position and be sure that the gasket is in good condition. HIGH VOLTAGE Measure the resistance. Normal: Momentarily indicates CAPACITOR (Ohm-meter scale: Rx1000)
  • Page 15 COMPONENTS TEST PROCEDURE RESULTS FUSE Check f or c ontinuity of the fuse with an Normal Abnormal multi-meter. NOTE: If the fuse is blown, check the primary, the secondary, and the monitor switches, H.V.D. and H.V.C. before replacing the fuse. If the fuse is blown by improper switch operation replace the defective switch and the fuse at the same time.
  • Page 16 TROUBLE SHOOTING...
  • Page 17 (TROUBLE 2) Oven does not operate at all ; Display window does not display any figures and no input is accepted. REMEDY CONDITION CHECK Replace primary Check continuity 1. Fuse blows . and monitor of monitor switches . s witch (with door clos ed).
  • Page 18 (TROUBLE 3) Display shows all figures set, but oven does not start cooking wh ile desired pr ogram times are set and START pad is touched. CONDITION CHECK RESULT CAUSE REMEDY Replace De · f ective Check continuity 1.Setting time does No continuity.
  • Page 19 CONTACT For additional information and details of your nearest service agent authorised by FSM contact: FSM (Food Service Machinery) Pty Ltd 21-23 Agosta Drive Laverton North VIC 3026 Australia Phone (03) 9368 2300 sales@fsm-pl.com.au www.fsm-pl.com.au...
