Pyxis LSR-801 Series User Manual

Level sensors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

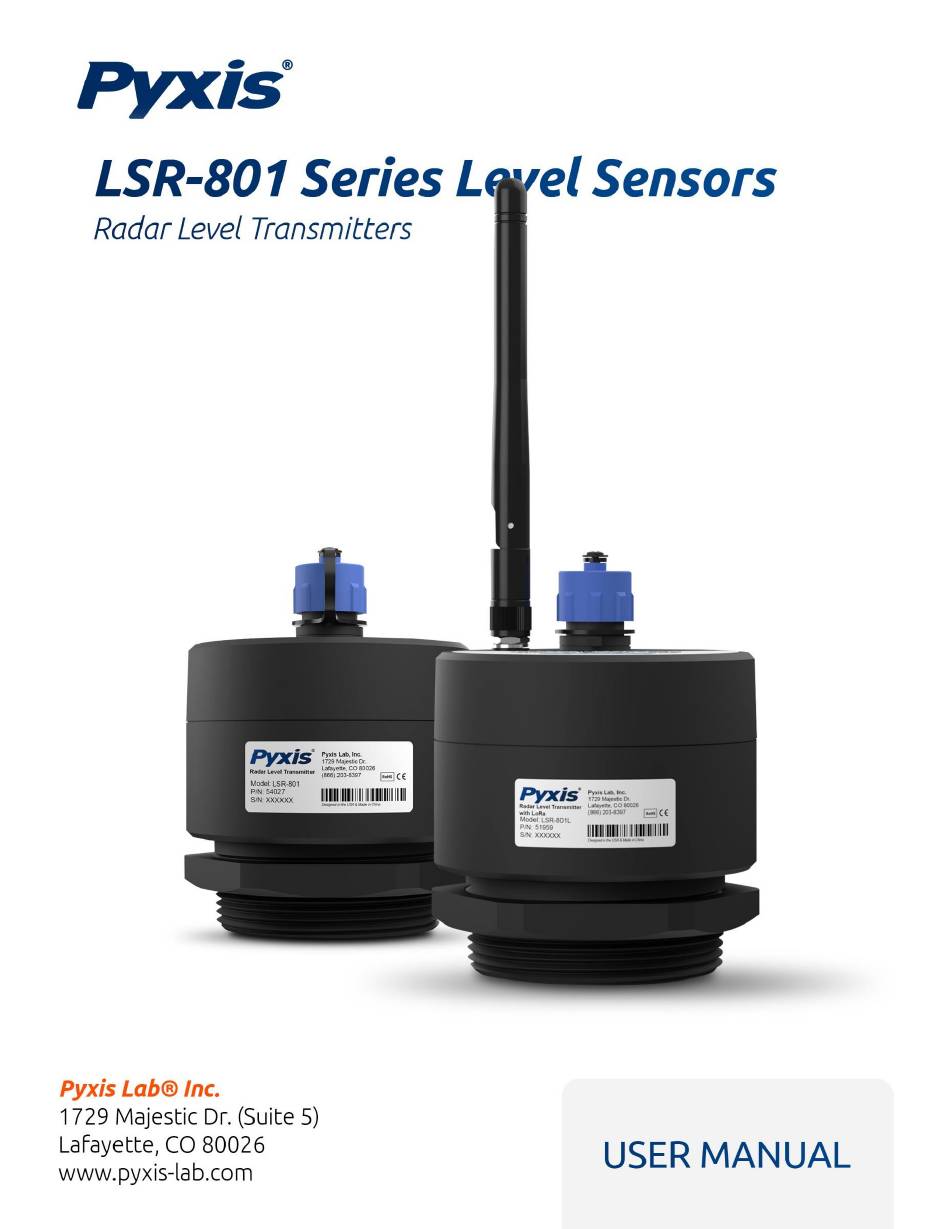

LSR-801 Series Sensor
Operation Manual
March 22, 2023
Rev. A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSR-801 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyxis LSR-801 Series

  • Page 1 LSR-801 Series Sensor Operation Manual March 22, 2023 Rev. A...
  • Page 2 A Repair Material Authorization Number (RMA) must be obtained from Pyxis Technical Support before any product can be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products back to the customer. The customer shall pay freight charges for returning products to Pyxis. To receive an RMA you can generate a request on our website at https://www.pyxis-lab.com/request-return-...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................4 Specifications ............................4 Unpacking Instrument ........................... 5 Standard Provided Accessories ....................5 Optional Accessories ......................... 5 Installation ............................. 6 Wiring ............................6 Tank Top Installation and Precautions ..................6 Instrument Overview ..........................8 LED Indicators ........................... 8 Setup with uPyxis 2.0 Mobile &...

  • Page 4: Introduction

    RS485, BlueTooth 5.0®. The LSR-801L is also equipped with LoRa (Long Range Radio) digital output for long-distance wireless level sensor data access. The LSR-801 Series can be wirelessly configured via the Pyxis uPyxis® app for Mobile or Desktop devices enabling rapid integration and deployment in the field.

  • Page 5: Unpacking Instrument

    Remove the instrument and find the standard accessories from the shipping container as listed below. Inspect each item for any damage that may have occurred during shipping. Verify that all accessory items are included. If any item is missing or damaged, please contact Pyxis Lab Customer Service at service@pyxis-lab.com or by phone at 1-866-203-8397.

  • Page 6: Installation

    4 Installation 4.1 Wiring The LSR-801 Series level sensors should be powered by a 24V DC power supply from any standard controller, PLC or DCS. The sensors offer both 1x 4-20mA and 1x RS-485 Modbus outputs. The 24V DC negative (black wire) and 4-20mA- wire are internally connected from the LSR-801 Series sensor therefor it is unnecessary to connect the green to the 4-20 mA negative terminal in the controller.
  • Page 7 Top of Tank Installation Suggestions Figure 1. LSR-801 Series Installation Illustration LSR-801 Dimension LSR-801L Dimension Figure 2. LSR-801 Series Dimensions, inch (mm)

  • Page 8: Instrument Overview

    5 Instrument Overview 5.1 LED Indicators The LED indicators on the top of the sensor (Figure 3) are used to indicate power status and BlueTooth 5.0® connection status. LED Status Green LED Power Supply is on Power Supply is off Blue LED BlueTooth 5.0®...

  • Page 9: Setup With Upyxis 2.0 Mobile & Desktop Apps

    Turn on the BlueTooth 5.0® on in your mobile device. *NOTE* Do not pair the phone’s BlueTooth 5.0® to the LS-801 series sensor, the uPyxis 2.0 APP will do the pairing. Open uPyxis 2.0 Mobile App. The App will start to search for Pyxis sensors automatically. Click on the LS-801L Sensor Picture to connect to the Pyxis Radar sensor.

  • Page 10: Parameter Setting Via Upyxis Mobile App

    Parameter Setting via uPyxis Mobile App There are three-tab pages on the main screen as showed below. After connected, Mobile App will display Trend Chart screen. User can click on Overview tab to check more measurement information. And Configuration Tab is for user to change the settings of the sensor if needed. Figure 5.

  • Page 11: Install Upyxis Desktop App

    Figure 6. Sensor Configuration 6.4 Install uPyxis Desktop App Download the latest version of uPyxis Desktop software package from: https://www.pyxis- lab.com/upyxis-app/ this setup package will download and install the Microsoft.Net Framework 4.5 (if not installed on the PC before), the USB driver for the USB-BlueTooth 5.0® adapter, and the main uPyxis Desktop application.

  • Page 12: Connecting To The Upyxis Desktop App

    On uPyxis Desktop, click menu Device -> Connect via USB-BlueTooth 5.0® as shown in Figure 8. If the connection is successful, the LSR-801 Series image and its Serial Number will be displayed in the left pane of the uPyxis window as shown in Figure 9.

  • Page 13: Parameter Setting Via Upyxis Desktop App

    *NOTE* Please make sure that the difference between the installation height and the maximum level height is greater than 1.97 inches, the sensor dead zone. For horizontal or other tanks that have a non-uniform cross section, please contact Pyxis Technical Support team (service@pyxis-lab.com) for assistance.
  • Page 14 Figure 10. Illustration of terms and tank capacity setup Figure 11. Display Unit Dropdown Selecion...
  • Page 15 Figure 12. Click apply settings button to save the settings Definitions of Terms See table below providing definition of terms as used in figures 7 – 9. *NOTE* After entering any setup parameter, click the Set button to save the setting. Term Definition Volume...
  • Page 16 Reading menu to display real-time measurement data in a trend chart (Figure 13). Figure 13. Level Trend Chart Click System to upgrade firmware as shown in Figure 14. Contact service@pyxis-lab.com for the latest LSR-801 series firmware. Figure 14. Firmware Upgrage...

  • Page 17: Ma Output Setup

    6.7 4-20 mA Output Setup The 4-20 mA output of the LSR-801 series sensor will be scaled as outlined below following user configuration via uPyxis. 4 mA = (Tank is Empty) = (Level is 0) = (Distance is Installation Height), 20 mA = (Tank is Full) = (Level is maximum height) = (Distance is Installation Height –...

  • Page 18: Communication Using Modbus Rtu

    The LoRa gateway acts as a bridge between the sensor and the Internet or Controller, and it can communicate with many sensors at the same time. Pyxis Lab LoRa embedded 4G Gateway is currently in the final stages of development. Contact service@pyxis-lab.com...

  • Page 19: Regulatory Appoval

    L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible Contact Us Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com / service@pyxis-lab.com...
