BQT Solutions BT95X Installation Manual

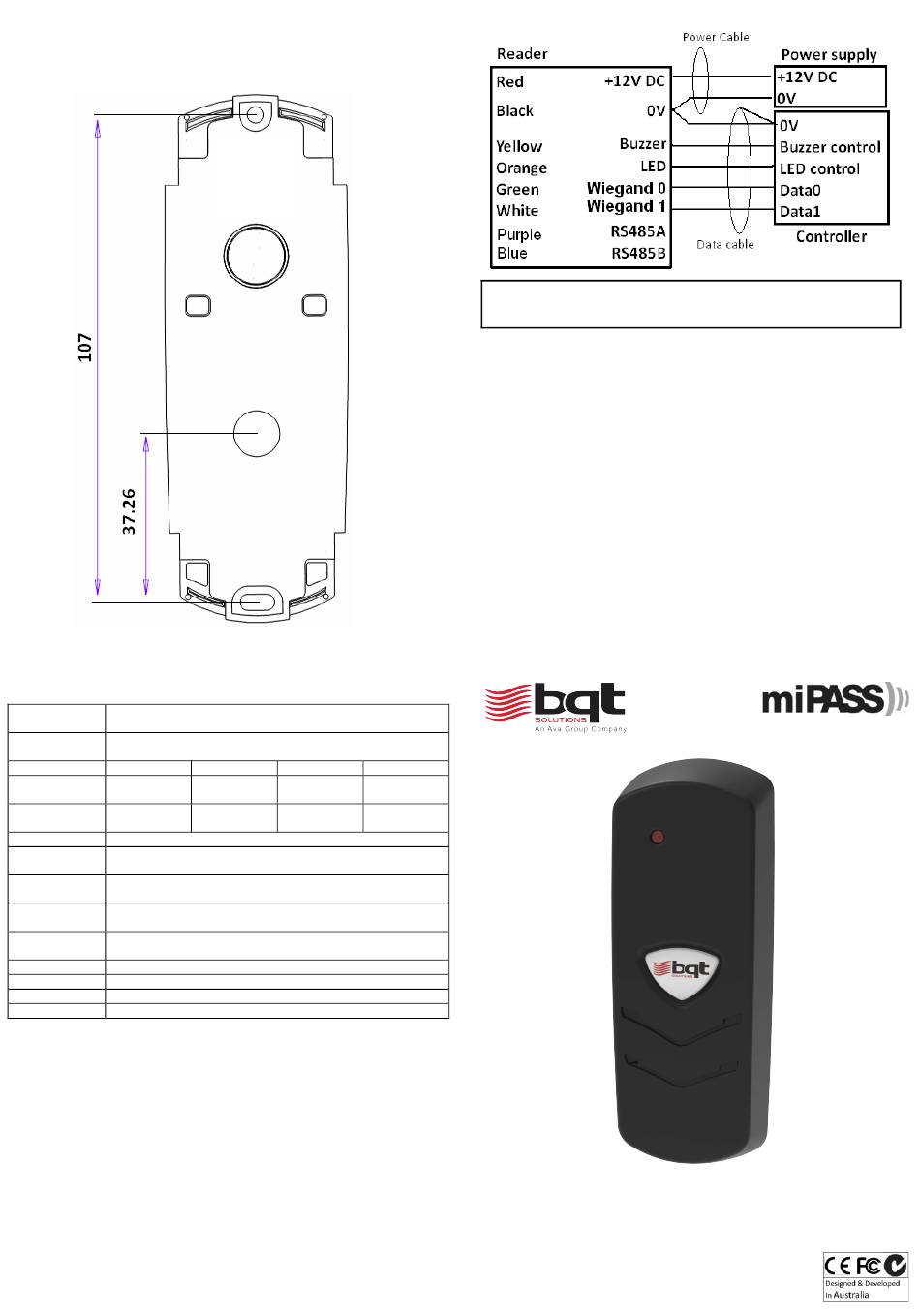

Drilling template
•
10mm (0.39") diameter hole for wire entry
•
2 x 3.6mm (0.14") diameter holes for mounting screws
Specifications
Output
Wiegand or RS485
protocols
Power
8VDC to 16VDC (nominal operating voltage 12VDC)
requirement
Model BT950
Current 80mA (Avg)
Consumption 160mA (Peak)
Frequency 13.56MHz
Relay Rating 80mA
20mm to 40mm (0.8" to 1.6") at 12VDC for physical credentials
Read range
Approximately 900mm (3") for BQT mobile credentials (BT955 Only)
Operating
-25°C to +65°C (-13°F to +149°F)
temperature
Relative
90% max, operating non-condensing
humidity
Reader
119mm(L) x 43mm(W) x 21mm (D) (4.69"x1.69"x0.83")
dimensions
Status LED Green & Red
Audible tone Internal and external buzzer control
Colour finish Charcoal
IP rating IP65
© 2015 BQT Solutions (Australia) Pty Limited. All rights reserved.
BQT Solutions (Australia) Pty Limited will not be liable for any direct, indirect, incidental or
consequential loss or damage in any way related to this product. BQT Solutions (Australia)
Pty Limited reserves the right to upgrade or change this product or instruction manual
without prior notice. BQT Solutions (Australia) Pty Limited assumes no liability for damages
incurred directly or indirectly from errors, omissions or discrepancies between the product
and the manual.
The product is designed by BQT Solutions (Australia) Pty Limited.
For more information and contact details please visit,
www.bqtsolutions.com
BT951 BT953 BT955
120mA (Avg) 120mA (Avg) 80mA (Avg)
300mA (Peak) 300mA (Peak) 160mA (Peak)
125kHz FSK 125kHz PSK BLE 2.45GHz
13.56MHz 13.56MHz 13.56MHz
Wiring diagram
For BT955 Only: Do not cut separate white wires with black header connection,
this is a reset header used for setting up or resetting the BQT Mobile functionality.
Guidance provided on the BQT miPASS Mobile App and supporting documentation.
Note:
• A shielded cable is recommended to be used. The shield is connected to controller 0V reference
• Maximum wiegand data cable length: 150 meters (500 feet)
• Buzzer and LED are low activated.
• RS485 lines and Relay lines are only for optional use
• Insulate all un-used wires (do not terminate).
Regulatory Information
C-Tick: This device is C-Tick complied.
CE: The device has passed all relevant tests and obtained CE approval.
FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device
may not cause harmful interference and 2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressively approved by BQT Solutions could void the user's authority to operate this
equipment.
BT95X
INSTALLATION GUIDE
Rev 003
