Summary of Contents for Keji KEJILAMA3

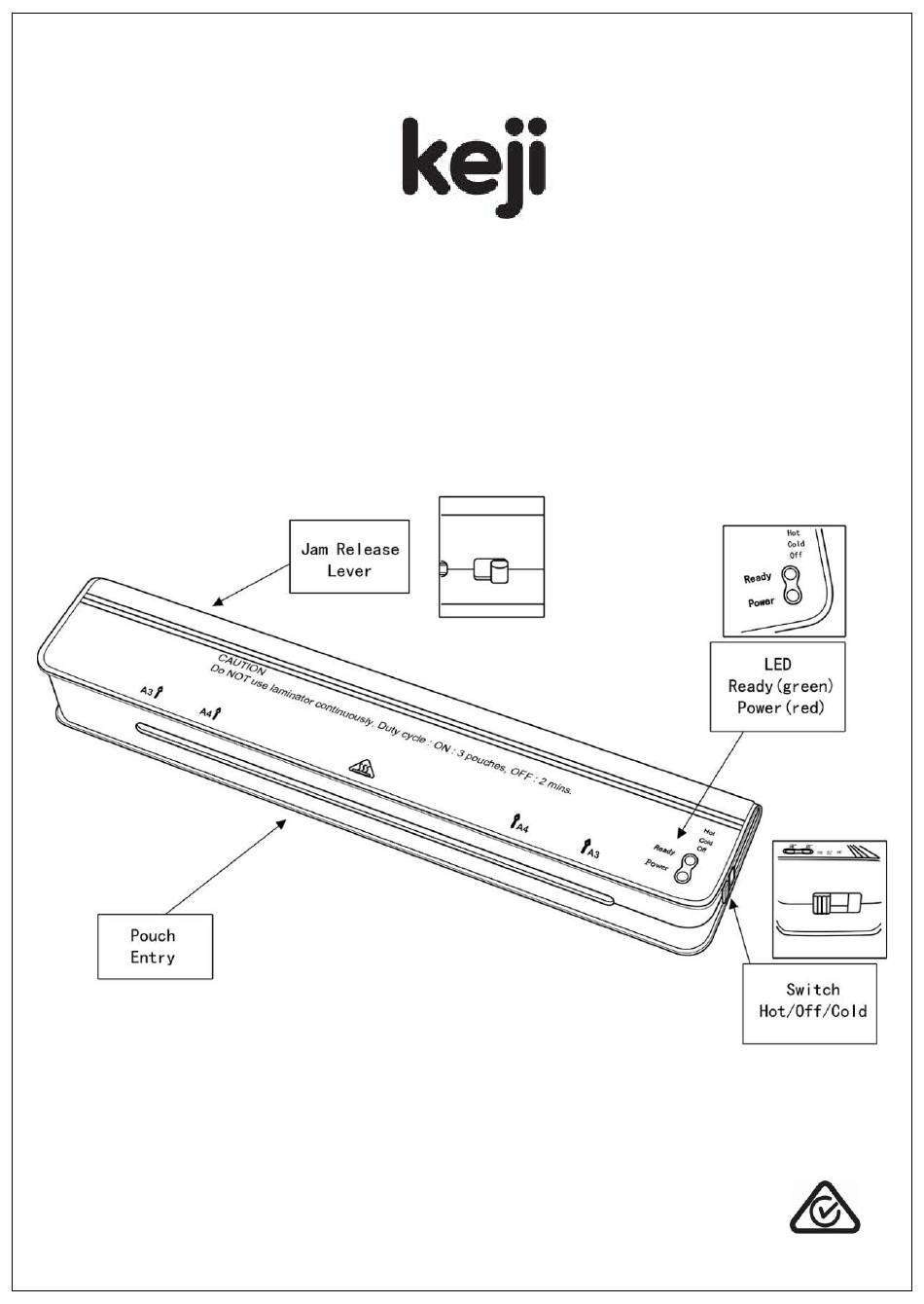

- Page 1 Instruction Manual A3 Laminator Model: KEJILAMA3...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Read all instructions before using. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Cold Lamination
COLD LAMINATION switch to “cold” position to connect the power and start with cold lamination, the power LED will light up red, the green ready LED will illuminate and ready for cold lamination. NOTE: Ensure the machine is cool when using Cold lamination. ... -
Page 4: Cleaning And Maintenance
ATTENTION: Do NOT laminate heat sensitive paper. For optimal lamination performance, the suitable room temperature is 18~25℃. CLEAR A JAMMED POUCH This laminator is designed with anti-jamming technology. In the case of a mis-feed occurring, first turn the laminator off, then press the Jam Release Lever and pull the pouch out manually. - Page 5 NOTE: The pouch may be jammed inside the unit if the size of the document is too small. It is highly recommended to follow the below suggestion to add the document into the pouch for laminating. Pouch Size Minimum required size of documents in the pouch A3 (80 / 100 micron) 220 x 310mm 303 x 426mm...
-
Page 6: Product Specification
PRODUCT SPECIFICATION Model KEJILAMA3 Max. Lamination Width A3 (330mm) Number of Rollers Laminating Thickness 80~100micron Max Document Thickness 0.6mm Laminating Options Cold and Hot/Thermal Pouches Anti-Jam Feature Power Supply 220-240VAC 50Hz Rated Current 1.5A Power Consumption 360W Warm Up Time...
