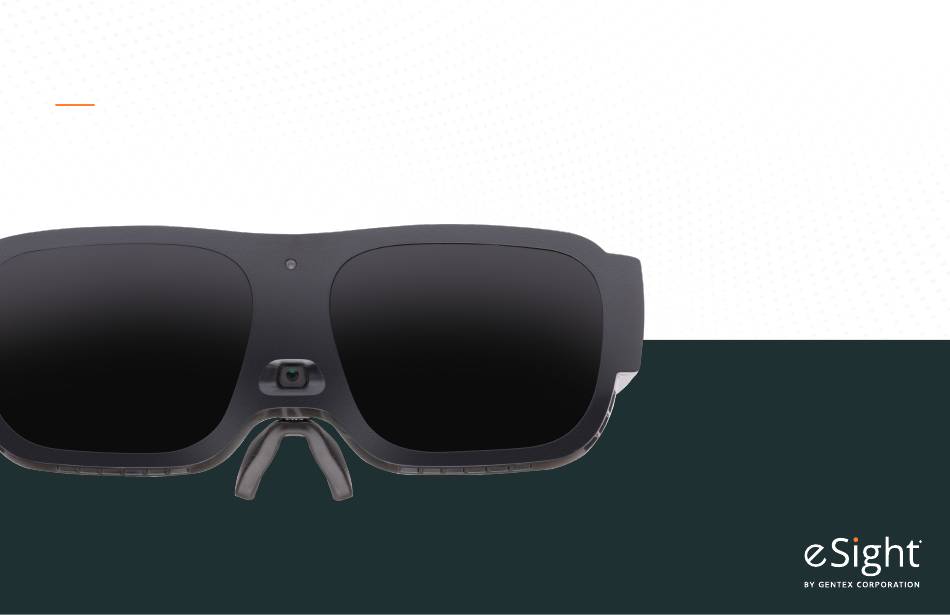

Page 1 Go User Manual See new possibilities...
Page 2 Go User Manual Safe Use and Care of eSight Read the safety booklet before using eSight Go. It contains important warnings, regulatory compliance, care instructions, and safe usage information. Copyright © Copyright 2024, Gentex Corporation. All rights reserved. May 2024 No part of this publication may be reproduced without the express written permission of Gentex Corporation.
Page 3: Table Of Contents
Changing Nose Pieces Device Cleaning and Care Installing Prescription Lenses Storing eSight Go Powering eSight Go Connecting eSight Go to Wi-Fi Device Status Light Technical Specifications Charging the Neck Battery Pack Customer Support and Warranty Neck Battery Pack and Status Light...
Page 4: Welcome To Esight Go
Welcome to eSight Go eSight Go User Manual eSight Go is a wearable digital vision enhancement device. It uses a high-resolution camera, OLED screens, and advanced image processing algorithms to capture the visual world and display enhanced video in real-time. eSight Go aims to improve performance of daily living activities and connect users to the world around them.
Page 5: What's In The Box
Go User Manual What’s in the Box?
Page 6 What’s in the Box? eSight Go User Manual As you unpack your eSight Go device, make sure you have received all the items below: eSight Go device Neck battery pack with rechargeable battery 1.5-foot USB-C cable to connect device to...
Page 7: Wearing Esight Go
Go User Manual Wearing eSight Go...
Page 8: Connecting Neck Battery Pack To Device
Wearing eSight Go eSight Go User Manual Connecting the Neck Battery Pack to the Device Connect the shorter USB cable into the port on your neck battery pack. You’ll find this under the outline marked on the pack. Now, take the other end of the cable and click...
Page 9: Positioning The Neck Battery Pack
Wearing eSight Go eSight Go User Manual Positioning the Neck Battery Pack Place the neck battery pack around your neck with the USB port at the bottom. Hold the sides of the glasses, gently spread them, and put them on.
Page 10: Customizing The Fit
Wearing eSight Go eSight Go User Manual Customizing the Fit Turn on your eSight Go. Close one eye, then the other, adjusting the glasses until you can see the entire display. If any of the corners are out of sight, it might be time to try a different nose piece.
Page 11: Changing Nose Pieces
Firmly hold the nose piece that’s currently on your eSight Go and ease it out towards you. It should pop out with a simple, careful tug. Look at the different nose pieces and pick one that looks like a better fit. Push it into the slot on your eSight Go, pressing gently until it’s snug.
Page 12: Installing Prescription Lenses
Find the tab just above each lens. pages 11 and 12, step 1 Gently press it upwards to unlock the lens. Tilt your eSight Go to let the lens slide out into your hand. Touch the lens edges only to keep it smudge-free.
Page 13: Powering Esight Go
Go User Manual Powering eSight Go...
Page 14 Go User Manual Neck Battery Pack (Mobile Use) Sleep Mode For mobility, power eSight Go using the neck battery pack To enter Sleep Mode, just tap the power button with rechargeable battery. on your glasses or disconnect the cable.
Page 15: Device Status Light
Device Status Light eSight Go User Manual Power States Power Indicator LED Power off LED is off Boot Up LED is solid white Device Ready LED is pulsating blue. If eSharing is active, LED is solid red. Sleep LED is off...
Page 16: Charging The Neck Battery Pack
Go User Manual Charging the Neck Battery Pack...
Page 17: Neck Battery Pack And Status Light
Neck Battery Pack and Status Light eSight Go User Manual Charging Process Take the 6-foot USB cable that came with your eSight Go. Connect one end of the cable to the neck battery pack. Attach the other end of the cable to the AC adapter.
Page 18 Neck Battery Pack Status Light eSight Go User Manual LED Indicators During Charging Status Light Charge Level 1 LED flashing green <25% 1 LED solid green and 1 LED flash green 25% - 50% 2 LEDs solid green and 1 LED flash green 50% - 75% 3 LEDs solid green and 1 LED flash green 75% - 100% 4 LEDs solid green 100% LED Indicators During Use 0 LED green <25%...
Page 19: Esight Go Remote
Go User Manual eSight Go Remote...
Page 20: Connecting The Remote
Watch for the red light to start flashing, indicating that the remote is in pairing mode and looking for your headset. Preparing Your eSight Go for Pairing: Now, let’s get your eSight Go ready. If the headset isn’t already in pairing mode (indicated by a blue flashing light), you can activate it by first putting the headset into sleep mode and then waking it up.
Page 21: Remote Functions
Volume Down Volume up or down Menu Bluetooth Button (enter pairing mode) Pair the remote with the device Hold for 3 seconds when near eSight Go Ensure that eSight Go is in pairing mode (flashing blue LED) Menu Button Open/Close the menu Long press (>2 seconds) to enter/exit freeze...
Page 22 Remote Functions eSight Go User Manual Mode Button Select the current option LED Indicator Change the mode in live view and freeze Mode Button frame view Navigation Up Long press (>2s) to reset the view in live view Navigation Down and freeze frame view Sleep Mode The remote will automatically go to sleep...
Page 23: Additional Information
Go User Manual Additional Information...
Page 24: Connection And Controls
Connections and Controls eSight Go User Manual eSight Device Navigation Rocker Power Button Power button USB-C Right Angle Connector Menu Button Mode Button Control buttons LED light USB-C port Neck Battery Pack Navigation Rocker Mode Button Menu Button Power Button...
Page 25 Connections and Controls eSight Go User Manual Mode Button Functions Navigation Rocker Zoom (Mode 1): Focus on objects at different distances Menu Button Mode Button Contrast (Mode 2): Fine-tune contrast for improved clarity Filters (Mode 3): Choose from various color filters for...
Page 26: Settings
Settings eSight Go User Manual Brightness Connectivity Auto-brightness allows the device to adjust to Bluetooth devices can be erased or disconnected ambient lighting conditions through this menu Manual brightness allows you to select a Wi-Fi: Manage networks and add a new network...
Page 27: Features
Reduce bouncy/jittery camera movements Over the Air Updates - Wireless Software Updates Text Narration Updates will begin to download when eSight Go The device will read the on-screen text to you is connected to Wi-Fi if there is one available...
Page 28: Device Cleaning And Care
Chemical Exposure: Avoid contact with ethanol- based products such as bug sprays, which may damage the device Proper Storage: When not in use, store eSight Go in its case to prevent damage Avoid Foreign Substances: Do not use household cleaning products on device components...
Page 29: Storing Esight Go
Storing eSight Go eSight Go User Manual Carrying Case To ensure safe keeping of your eSight Go when not in use, place device and components into appropriate carrying case slots.
Page 30: Connecting Esight Go To Wi-Fi
Access Wi-Fi Settings On your eSight Go, navigate to Settings > Connectivity to open Wi-Fi settings QR Code Scanning Scan the generated QR code using the eSight Go device to connect to the Wi-Fi network. Important Compatibility Note: Network Frequency Limitation: eSight Go is compatible only with 2.4 GHz Wi-Fi networks. It does not support 5 GHz Wi-Fi networks.
Page 31: Technical Specifications
Technical Specifications eSight Go User Manual Display Field of view diagonal 45 degrees Power Run Time 180 minutes Integrated lithium-ion battery in device Battery Rechargeable lithium-ion battery in neck battery pack Maximum charge voltage and current: 5.0V & 3.0A Type-C USB Cable with USB AC wall adapter...
Page 32 If the neck battery pack does not power on or shows signs of not working as expected, this may be due to exposure to cold temperatures. eSight Go is designed to withstand storage temperatures as low as -20°C (-4°F). However, prolonged exposure to such temperatures can affect battery performance.
Page 33: Customer Support And Warranty
1-855-837-4448 – follow the prompts to contact your eSight Coach For further support, please contact your eSight Authorized Distributor or dispensing clinic directly. They are trained to provide full support in your local language and time zone. eSight Customer Support Outside North America For international assistance, please reach out to your local eSight Authorized Distributor or dispensing clinic. They offer comprehensive support in your native language and are aligned with your local time zone. Warranty www.esighteyewear.com/esight-go-support Identification Your eSight Go serial number can be found on the right arm of your device Serial Number (01)12345678901231 (21)EG1234ABC Assembled in USA...
Page 34: Troubleshooting
Troubleshooting eSight Go User Manual Exit Pairing Mode Pressing the Bluetooth button and the Volume Up button at the same time will make the remote exit pairing mode Delete Bluetooth Pairing Information Pressing and holding the Bluetooth button and the Menu button for 3 seconds will delete all...
Page 35: Appendix
Go User Manual Appendix...
Page 36 Feature Overview: Zoom eSight Go User Manual User Experience Tips: The Zoom feature significantly enhances visual experiences by E xperimentation: Familiarize yourself with various zoom providing up to 24x magnification. This feature is particularly levels to understand what works best in different scenarios. beneficial for maximizing the use of remaining vision, making Experimentation is key to leveraging the Zoom feature effectively. it one of the most frequently used functions on eSight Go. B alancing Views: While high magnification offers detailed views, How to Use Zoom: it’s essential to balance it with lower magnification for broader...
Page 37 Feature Overview: Contrast eSight Go User Manual User Experience Tips: Contrast adjustment helps to improve image clarity. This E xperimentation: Try using different contrast levels to find what suits feature adjusts the dark and light areas of an image, making your vision needs best, especially when dealing with various lighting it easier to distinguish details. It’s particularly beneficial for...
Page 38 Feature Overview: Filters eSight Go User Manual User Experience Tips: Filters are designed to enhance visual comfort and ease of reading by offering various color schemes. These color Personalization: Experiment with different filters to discover what schemes can be particularly helpful for individuals with specific works best for your specific needs and preferences. eye conditions, providing an optimized viewing experience. Adaptability: Different environments and tasks may require different filters. Be flexible in switching between them for the best experience. Types of Filters and Their Purposes Normal (Full Color): Ideal for general viewing and reading.
Page 39 Feature Overview: Tilt eSight Go User Manual User Experience Tips: The Tilt feature is designed to enhance ergonomic comfort and reduce neck strain.It allows you to adjust the vertical angle of Ergonomic Adjustment: Use the Tilt feature to find the most comfortable the display, making it easier to view without tilting your head viewing angle, reducing the need for physical adjustments and for extended periods.
Page 40 Feature Overview: Freeze Frame eSight Go User Manual User Experience Tips: Freeze Frame enables you to pause the camera image at any moment. This function is especially beneficial for managing Stability for Clarity: Ensure a steady gaze when activating Freeze image bounce and simplifying tasks like reading at higher Frame for a sharp image. magnification levels. Task Adaptability: Use Freeze Frame to pause the image for detailed examination, especially in tasks requiring focused attention on How to Use Freeze Frame specific details.
Page 41 Feature Overview: Finder eSight Go User Manual User Experience Tips: The Finder enhances your ability to quickly orient yourself in various viewing situations. This feature is particularly useful when using Rapid Orientation: Ensure a steady gaze when activating Freeze high magnification settings or when needing to swiftly change focus Frame for a sharp image. between multiple points of interest. Enhancing Viewing Experience: Finder is a powerful tool for situations...
Page 42 Feature Overview: Reset View eSight Go User Manual User Experience Tips: The Reset feature enables you to swiftly revert to default settings within any active mode. This function is invaluable for users who Situational Application: Use Reset View when you need to start over frequently adjust settings and require a quick way to return to with your adjustments.
