REV 1.1 19-12-2023
DuTCH.audio IC1.1 manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC1.1 and is the answer not in the manual?

Questions and answers

Related Manuals for DUTCH IC1.1

Summary of Contents for DUTCH IC1.1

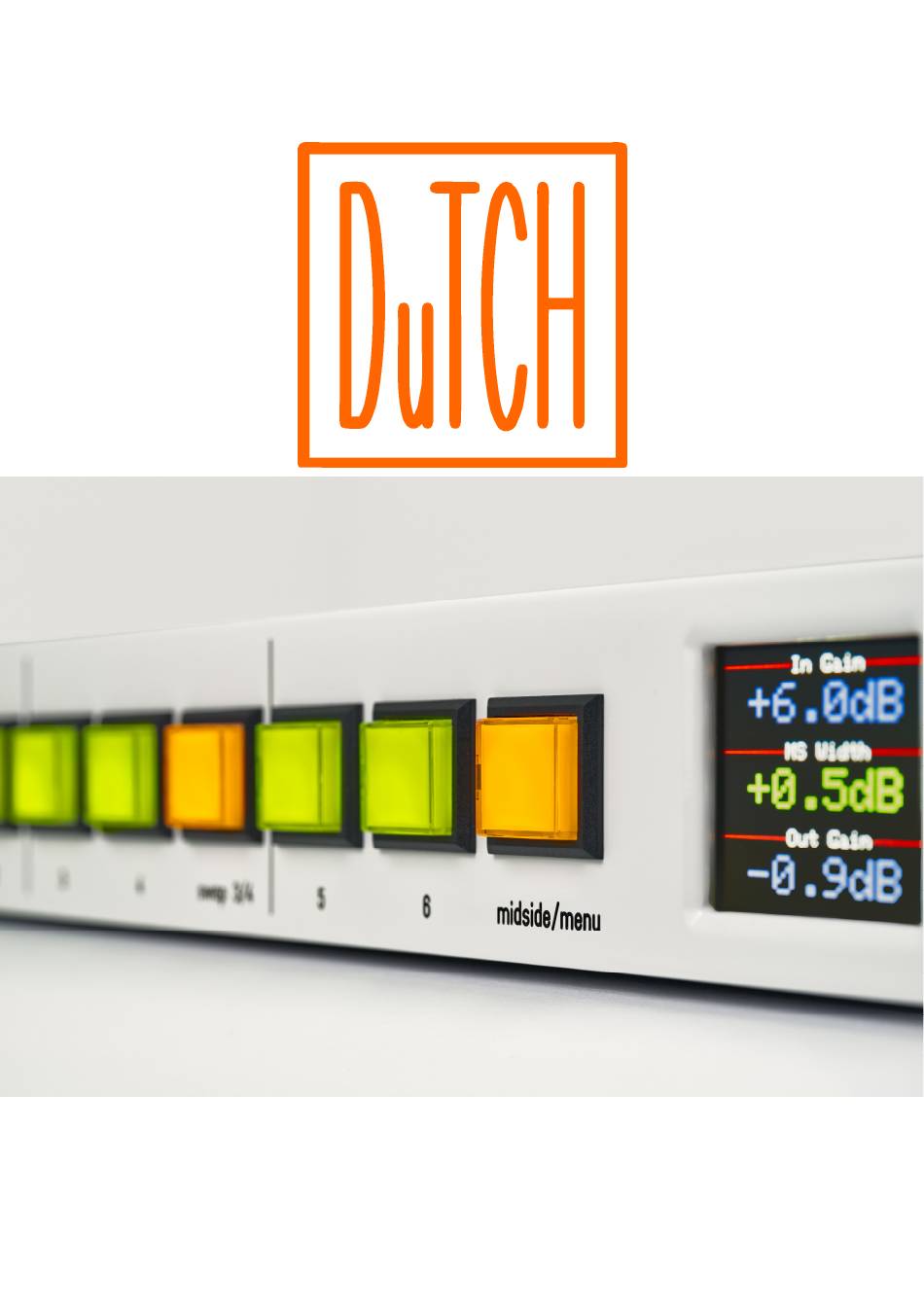

  • Page 1 REV 1.1 19-12-2023 DuTCH.audio IC1.1 manual...

  • Page 2: Important Safety Instructions

    The IC1.1 Insert Computer integrates our well-known and proven analog circuitry with a computer-interface to take it to the next level. The IC1.1 can be controlled using the intuitive and classy front-panel, as well as through the use of a VST3 plugin, which allows you to save and automate settings while even multiple units can be stacked using this plugin.

  • Page 3: Operation

    The push-buttons can be labelled to your liking by typing in names using the VST3 plugin and will be stored in the IC1.1 EEPROM. The name will be shown on the centre of the display for 2 seconds. The switch itself will also turn green when an insert is active.
  • Page 4 8 on: inputs > 8>1>2>3>4>5>6>7 > outputs Insert 8 is a passive insert. Output: The IC1.1 has 1 stereo output with goldplated XLR’s which is fully passive when the active input gain is not activated Active gain: By pushing the ‘output’ encoder you will enable the active gain stage which enables you to change the output gain to your liking.

  • Page 5: Rear Panel

    Exits menu and reverts back to default state. Rearpanel: Inputs: The IC1.1 has one set of stereo balanced inputs (right side) with gold-plated Neutrik XLR’s. Inserts: The IC1.1 has 8 stereo balanced inserts with industry standard Tascam DB25 analog connections. Each DB25 connector holds 2 inserts corresponding with the frontpanel numbering.
  • Page 6 Plugin and firmware updates: Plugin: The IC1.1 can be controlled using the intuitive front panel, but it’s also possible to control and save settings by making use of our VST3 plugin. To make thing easy to read and control, the plugin has the same layout as the front-panel.
  • Page 7 Allow once for the plugin to communicate with your network and the IC1.1. Firmware updates: The IC1.1 firmware can be easily updated over the internet using the plugin. Click anywhere in the plugin to open the firmware update dialog.
  • Page 8 DON’T INTERRUPT the update process. After all updates are done, the IC1.1 will reboot and will revert back to its previous state and the plugin will ‘show update’ complete. It’s good practice to re-open the plugin after a firmware update has finished.
  • Page 9 DB25 connections: The IC1.1 uses the analog Tascam DB25 standard for inserts. Even though the DB25 pinout is exactly the same as the digital standard, the channels vs send/return is different. More information can be found on our website. For 2 inserts, you will need 1 DB25 cable, so for 8x insert, you need 4 DB25 cables.

  • Page 10: Service And Warranty

    If we find that the product is flawless the customer will be charged 200 euro to cover our costs for examination and handling. The return costs will also be charged. © DuTCH.audio BV 2023 Handmade in Holland on Solarpower contact@dutch.audio https://dutch.audio...
