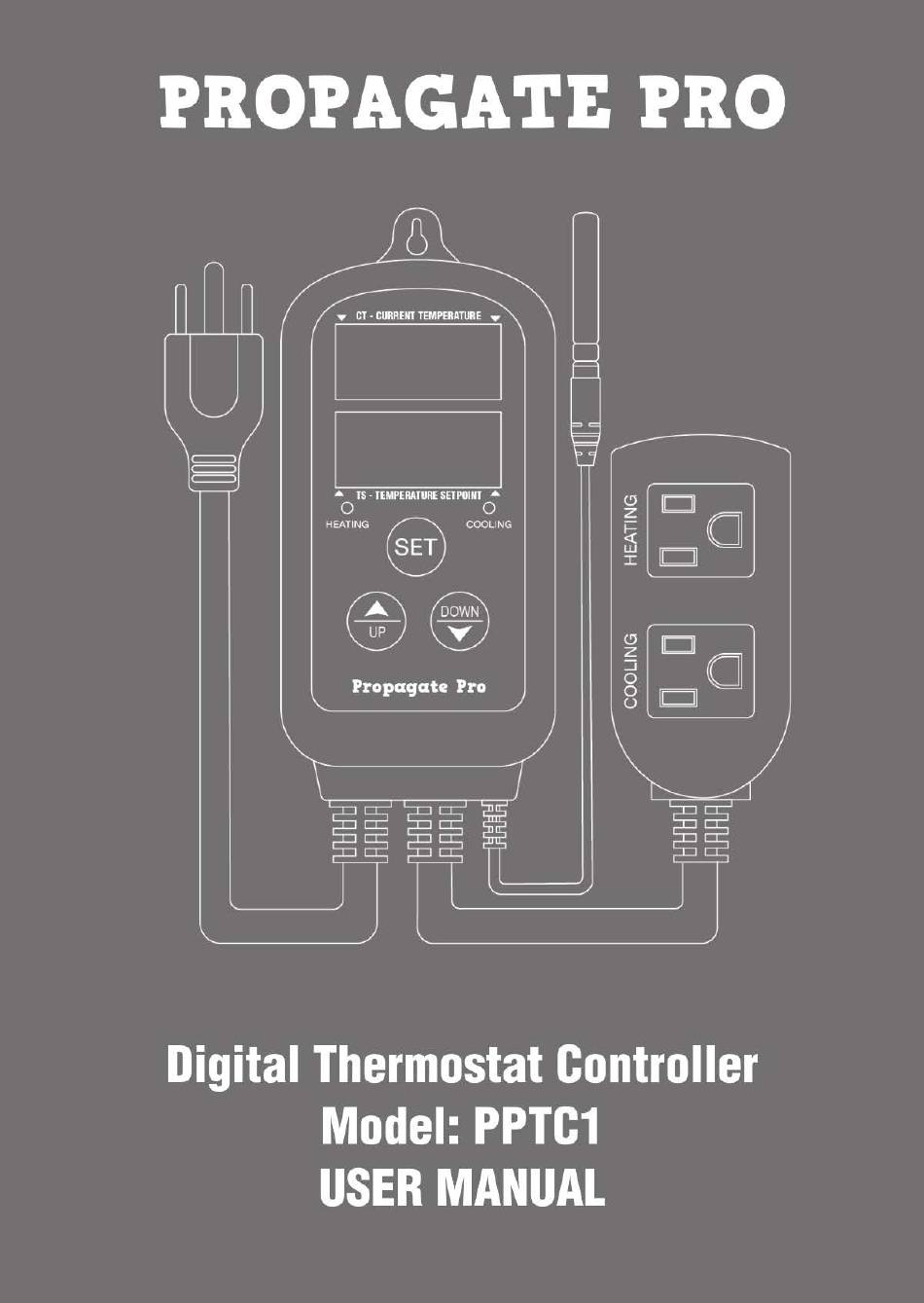

Propagate PRO PPTC1 User Manual

Digital thermostat controller

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the PRO PPTC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Propagate PRO PPTC1

Page 2 Quick Start Thanks for your purchase, if you have any problems or concerns with your thermostat please reach out to us by calling (360) 204-5623 or visiting our website: www.propagatepro.com Change from C (Celsius) Temperature Display to F (Fahrenheit) 1. Enter the setup mode by holding down the SET button until you reach the Setup Menu, with the first option displayed as: tS.
Page 3: Table Of Contents
CONTENTS 1. Safety Precautions ........................1 2. Overview............................ 1 3. Specifications ......................... 3 4. Keys Instruction Manual ..................... 4 5. Key Operation Instructions ....................5 6. Menu Instructions ......................... 8 7. Error Descriptions ......................... 12...
Page 4: Safety Precautions
1. SAFETY PRECAUTIONS 1. Please read the manual and specifications carefully before using the product. 2. Do not touch the terminals, especially while the power is on. Doing so may result in an electric shock. 3. Do not allow metal pieces, wire clippings, or fine metal shavings or filings from installation to enter the product.
Page 5: Overview
2.OVERVIEW This product has plug-and-play design with dual relay, can be easily connected with cooling and heating equipment easily to realize ideal temperature control. It's equipped with dual LED display and offers display options of Celsius and Fahrenheit, enabling better temperature control. With a large output power of 1500W, this device is suitable for most applications.
Page 6: Specifications
3. SPECIFICATIONS ° ° -50-120 C/-58-248 Temperature Control Range ° ° C/0.1 Temperature Resolution ° ° ° ° ±1 C)/±2 F (-58-160 Temperature Accuracy C (-50-70 Temperature Control Mode On/Off Control, Heating and Cooling AC100-130V, 50/60Hz Input Power Max. 15A, AC100 - 130V Temperature Control Output Sensor Type NTC sensor (including)
Page 7: Keys Instruction Manual
4. KEYS INSTRUCTION MANUAL 1. CT: Current Temperature. In running mode, current temperature is displayed; in setting mode, menu code is displayed. 2. TS: Temperature Setpoint. In running mode, the temperature setting is displayed; in setting mode, setting value is displayed. 3.
Page 8: Key Operation Instructions
5. KEY OPERATION INSTRUCTIONS When the controller is operating normally, press the ",a." button once to display the Heating Differential (HD); press the "T" button once to display the Cooling Differential (CD). The screen will return to the normal display mode after 2 seconds.
Page 9 5. KEY OPERATION INSTRUCTIONS 5.1 Setup Flow Chart (Temperature is Celsius) Press and hold the SET button for more than 3 Seconds to enter Setup Mode Alarm -40°C Low Limit Temperature 25°C Set Value Protection Time Delay Minutes Heating 2.0°C Differential Calibration 0°C...
Page 10 5. KEY OPERATION INSTRUCTIONS 5.2 Setup Flow Chart (Temperature is Fahrenheit) Press and hold the SET button for more than 3 Seconds to enter Setup Mode Alarm -40°F Low Limit Temperature 77°F Set Value Protection Time Delay Minutes Heating 2.0°F Differential Calibration 0°F...
Page 11: Menu Instructions
6. MENU INSTRUCTIONS When the temperature is displayed in Centigrade: Menu Codes Function Setting Range Default Setting Remarks Temperature ° -50-120 25•c Set Value Heating ° o.3-15 2.o·c Differential Value Cooling ° o.3-15 2.o·c Differential Value Alarm ° ° -50-120 High Limit Alarm °...
Page 12 6. MENU INSTRUCTIONS When the temperature is displayed in Fahrenheit: Function Setting Range Default Setting Remarks Menu Codes Temperature ° ° -58-248 Set Value Heating ° ° 1-30 Differential Value Cooling ° ° 1-30 Differential Value Alarm ° ° -50-248 High Limit Alarm °...
Page 13 6. MENU INSTRUCTIONS 6.1 Temperature Control Range Setting (TS, HD, CD) 1. When the controller is operating normally, the LED displays the current measured temperature, and identifies and switches between cooling and heating modes. 2. When the measured temperature CT> TS (greater than temperature set value) +CD (cooling differential value), the system enters the cooling state, the cooling indicator light will turn on and the cooling relay starts working.
Page 14 6. MENU INSTRUCTIONS 2. When the measured temperature is lower than or equal to AL, the low temperature alarm will be triggered, the display will continue to flash and show the measured temperature until the temperature is higher than AL. 6.3 Compressor Delay (PTI 1.
Page 15: Error Descriptions
6. MENU INSTRUCTIONS Attention: When the F value is changed, all setting values will be reset to the factory setting. 7. ERROR DESCRIPTIONS Sensor Fault Alarm If the temperature sensor is short-circuited or open loop, the controller will enter sensor fault mode and cancel all actions. and the LED will display "ERR."...
