Rocstor Y10A328-B1 User Manual

User Manual
TrueReach 8K/4K DisplayPort 1.4 Extender Repeater
Max 65ft (20m)
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor introduces the DisplayPort 1.4 repeater, o ering users a convenient means to
extend DP signals from a host PC to a monitor or projector, reaching up to 20 meters
(10 meters in and 10 meters out), supporting resolutions of up to max 8K/30Hz
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual x1
• USB-A to Micro USB M/M Cable 1m x1

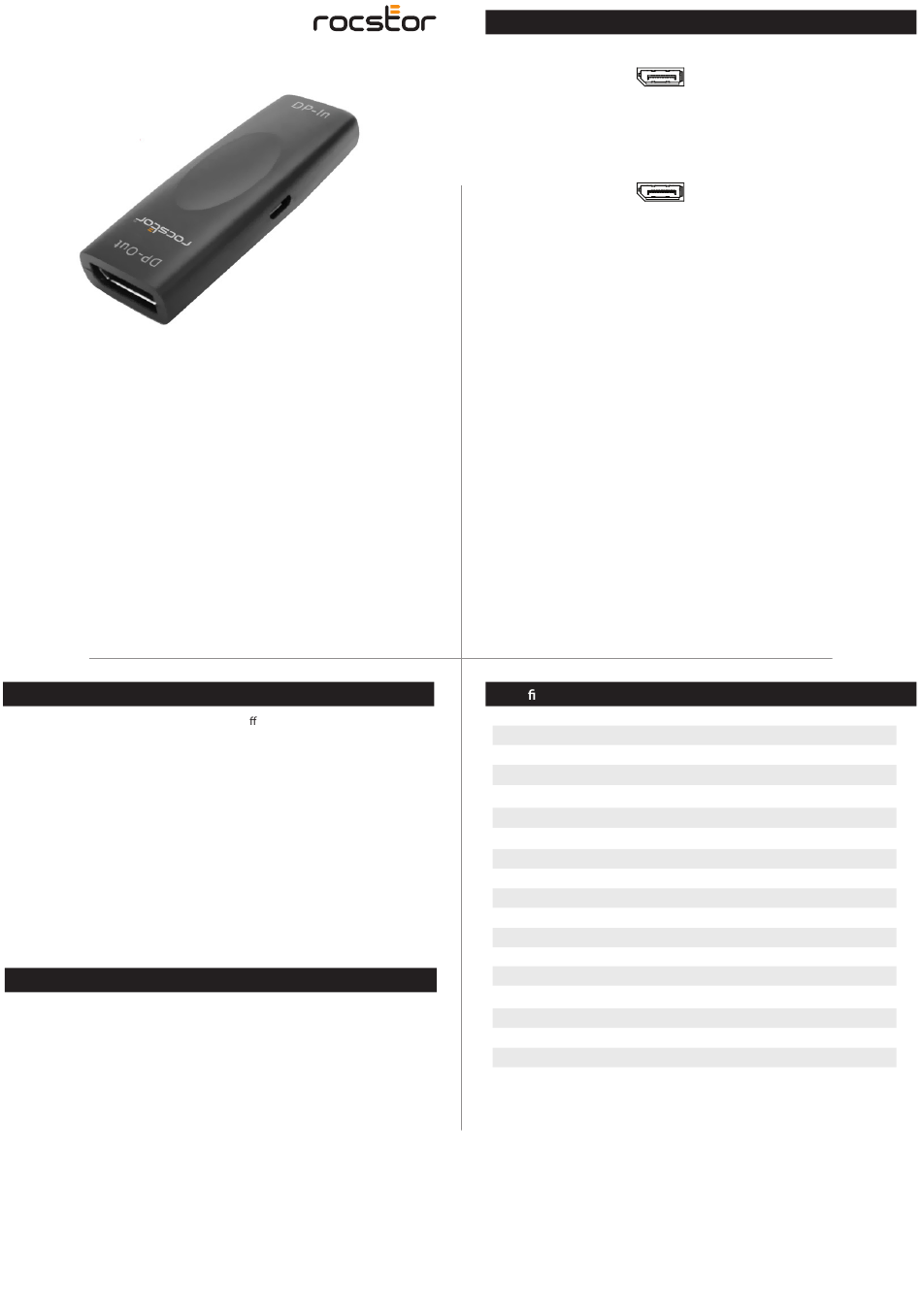

Y10A328-B1
®
Features
Upstream:
DisplayPort (Female)
Downstream:
DisplayPort (Female)
• Support DP1.4 and downward
compatible with lower versions
• Transmission speed ： 1.62 Gbps / 2.7
Gbps / 5.4Gbps / 8.1 Gbps
• Support DisplayPort 1.4 HBR3 with max
video resolution 8K@30Hz.
• Extending Distance: max 20m (10m input,
10m output) with 28AWG or above cable
• Support cascading function up to 3 levels
Note: 1) To achieve 8K transmission, the
source and display should support DP1.4,
the connected cable should be 28AWG or
above DP1.4 cable
2) When using the cascading function to
achieve longer distance, the max
resolution will be decreased
3) The repeater is not bidirectional, so
make sure to connect the source to the
input port and display to the output port
Speci cation
Signal Inputs/Output
Input
Output
Maximum Resolution
Supported DP Version
Bandwidth
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
External Power Supply
Power Consumption
Regulatory Approvals
Converter Unit
Accessory Adapter
User Manual
DisplayPort Female
DisplayPort Female
7680*4320@30Hz
DP1.4/DP1.2
1.62 / 2.7 / 5.4 / 8.1 Gbps
0°C to 45°C (32°F to 113°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
Micro USB
1W （5V/200mA）
FCC, CE
English Version
