AHM ELECTRONICS AHM010M Owner's Manual

3 in 1 portable air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

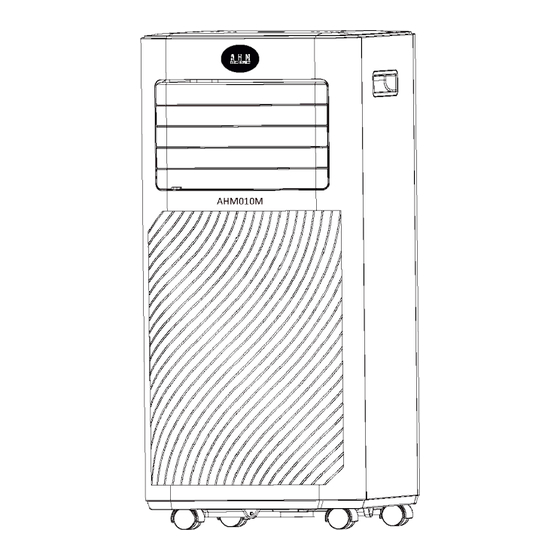

3in1 Portable Air Conditioner
AHM010M
Owner's Manual
Original instructions
(With R290 refrigerant)
READ AND SAVE THESE INSTRUCTIONS
AHM ELECTRONICS, NEVILLE ROAD, BRADFORD, BD4 8TU
www.ahmelectronics.com
Company Reg: 14582868

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHM010M and is the answer not in the manual?

Questions and answers

Summary of Contents for AHM ELECTRONICS AHM010M

  • Page 1 3in1 Portable Air Conditioner AHM010M Owner’s Manual Original instructions (With R290 refrigerant) READ AND SAVE THESE INSTRUCTIONS AHM ELECTRONICS, NEVILLE ROAD, BRADFORD, BD4 8TU www.ahmelectronics.com Company Reg: 14582868...

  • Page 2: Table Of Contents

    CONTENTS PAGE 1. BEFORE YOU BEGIN 2. FOR YOUR SAFETY 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. CLEANING AND CARE 7. TROUBLESHOOTING 8. DECOMMISSIONING...

  • Page 3: Before You Begin

    1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed.
  • Page 4 Further information is available in the USER MANUAL, SERVICE MANUAL, and the like. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.
  • Page 5 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY This appliance is intended to be used by expert or trained users in  shops, in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged from 8 years and ...
  • Page 6 non-sparking. Component parts shall only be replaced with identical repair parts. FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

  • Page 7: For Your Safety

    2. FOR YOUR SAFETY Your safety is the most important thing we concerned! Please read this manual carefully and fully understand before operating your appliance. WARNING OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ...
  • Page 8  Do not unplug by pulling on the power cord.  Do not use an extension cord or an adapter plug.  Do not put objects on the unit.  Do not climb or sit on the unit.  Do not insert fingers or other objects into the air outlet. ...
  • Page 9  Keep any required ventilation openings clear of obstruction.  The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle...
  • Page 10 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R290. 2.2.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
  • Page 11 2.2.6 No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
  • Page 12 – refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

  • Page 13: Product Overview

    3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Air inlet with Control panel Drainage Hole air filter Air outlet with adjustable Caster Air Exhaust louver Handle Note: The appearance is only for reference. Please see the real product for detailed information.
  • Page 14 FEATURES High Capacity in a compact size with fan, cooling and  dehumidifying function. Temperature setting and display  LED Digital display  Electronic control with built-in timer, sleep mode  Self-evaporating system for better efficient  Auto shut off when tank full ...

  • Page 15: Installation

    4. INSTALLATION UNPACKING Unpack the carton and take the appliance and accessories out.  Check the device after unpacking for any damage or scratches on  Accessories:  1. Exhaust hose  2. Hose connector  3. Window kit adapter ...
  • Page 16 Choose your location If tipped more than 45°, allow the  unit to set upright for at least 24 hours before start up. Place the unit on a firm, level surface  in an area with at least 50cm of free space around it to allow for proper air circulation.
  • Page 17 ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which coming from the appliance contains waste heat and moisture. Do not replace or extend exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low backpressure.
  • Page 18 Step 4: Close your window to secure the kit in place. It needs to hold the It is windows kit firmly in place, secure the window kit with duct tape if required. recommended that t he gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
  • Page 19 Step 6: Attach the hose connector to the exhaust air outlet of unit. Step 7: Adjusting the length of the flexible exhaust hose, to make sure the distance between the unit and the window will be more than 70cm, height from exhaust hose to the floor will be more than 90cm. And avoid bends in the hose.

  • Page 20: Operation

    OPERATION CONTROL PANEL AND DISPLAY POWER Press to switch the machine on or off. Press to switch the operation mode between fan, MODE cooling and dehumidifier. SPEED Press to switch the fan speed between HIGH and LOW DOWN Decreasing the desired temperature or timer setting. Increasing the desired temperature (16℃～32℃) or timer setting.
  • Page 21 REMOTE CONTROL...
  • Page 22 5.3 SETTINGS 5.3.1 Start-up and Shutdown Press POWER to turn the unit on. Press MODE button to select the desired operation mode. Press POWER again to turn off the power. 5.3.2 Operation mode The unit has four operation modes: Fan, Cool, Dehumidifier, sleep. A.
  • Page 23 C. Drying your room Press MODE button on the control panel or remote control, the dry indicator lights up. The fan speed is unable to select. User should connect the hose to the drain outlet at the bottom of the unit. Note: In this mode, the fan speed switches over to low speed and cannot be selected.
  • Page 24 5.3.3 TIMER SETTING （1hour-24hours）: The timer has two ways of operation: Press Timer key to Press Up /Down To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. Press Up /Down Press Timer key to To turn on repeatedly to set the turn on the timer...
  • Page 25 5.4 DRAINAGE Manual drainage: 1）When the machine stops after the water is full, please unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body. 2）Place the water container below the side water outlet behind the body.
  • Page 26 Continuous drainage The self-evaporating system uses the collected water to cool the condenser coils for better efficient performance. It is no need to empty the drainage tank in cooling operation except in drying operation and high humidity conditions. The condensate water evaporates at the condenser and evacuates through the exhaust hose.
  • Page 27 5.5 CONNECTING TO WIFI The “Smart Life” app is available for android and iOS. Scan the corresponding QR code to get directly to the download. This appliance allows you to operate the appliance via your home net- work. A prerequisite is a permanent WIFI connection to your router and the free app “Smart Life”.
  • Page 28 Method 2 When WIFI indicator flashes, on the Smart Life app select “Add Device”- “Small Home Appliances”-“Dehumidifier”, and follow the instructions on the display. Check the status of the WIFI indicator and choose the correct status. If the WIFI indicator flashes rapidly, it can connected directly. If the WIFI indicator flashes slowly, press “Go to Connect”...

  • Page 29: Cleaning And Care

    6. CLEANING AND CARE 6.1. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning.
  • Page 30 6.2. CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.

  • Page 31: Troubleshooting

    7. TROUBLESHOOTING Symptom Inspection Solution  Check the power  Insert the power cord connection in securely. securely into the wall Outlet. The unit is  Check if the water level  Empty the drain pan by indicator lights up? remove the rubber plug.

  • Page 32: Decommissioning

    8. DECOMMISSIONING 8.1. STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and r emove exhaust hose and window kit store with the...
