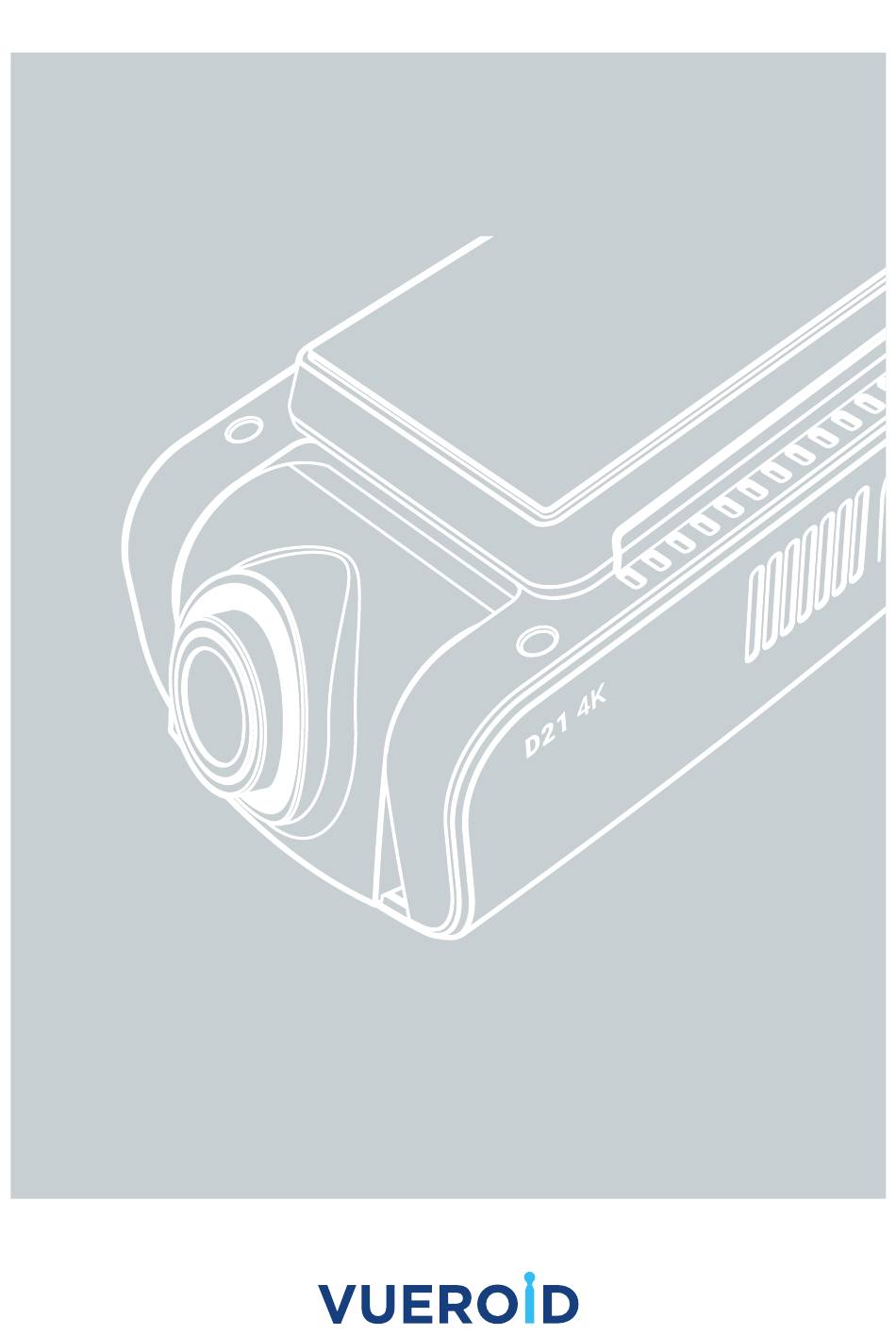

- Page 1 V1.0 D21 4K Quick Guide Manual VUEROID DASH CAM. Make sure to understand the contents of the manual to use the product correctly.
-
Page 2: Items Included In The Package
2. Product does not seem to operate normally. 3. Product shows a marked change in performance. VUEROID does not warrant any defects that can be caused by owner’s fault. VUEROID is not responsible for any damaged that occur while driving. -
Page 3: Part Names
Part names ❸ ❹ ❺ ❻ ⓫ ❼ ⓬ ❽ ❶ ⓭ ❾ ❷ ❿ ⓯ ⓮ Part Function ❶ Memory card slot A slot for a memory card ❷ Microphone Voice recording ❸ Voice LED ( ) Indicates voice status ❹... -
Page 4: Key Features
- Make sure the Dashcam is turned off when you remove the MicroSD card. - Any problems arising from the use of MicroSD cards other than VUEROID are responsibility of the user. - Periodically back up the important recorded files on other storage devices. - Page 5 1. Installing front camera (1) Clean the area where Dahscam will be installed. (2) Remove the protective film from the mount bracket. (3) Make sure the front camera lens is located in the center of the windshield. Press the mount to the installation location. (4) Connect power cable to DC-IN power port and rear camera.
- Page 6 3. Installing Rear camera (1) Clean the area where the rear camera will be installed. (2) Remove the protective film from the mount bracket. (3) Make sure the rear camera lens is located in the center of the windshield. Press the mount to the installation location. (4) Connect rear camera cable.
- Page 7 Using smartphone application (Android/iOS) 1. App download and install Search “VUEROID Dashcam” in the Google Play Store or Apple Store then install it on your smartphone. 2. Connect your Dashcam to smartphone via Wi-Fi Turn on the Wi-Fi by pressing Wi-Fi button on the Dashcam.
- Page 8 4. Home screen Displays Wi-Fi status and ❶ Wi-Fi Status information of the connected Dashcam. ❶ ❷ Connect Wi-Fi Connect or disconnect Wi-Fi. ❸ Live View Front / Rear live view. ❷ View and play the recorded ❹ File List files.
- Page 9 6. ADAS Setting ADAS On/Off (default On) Sedan/SUV/Truck (default Sedan) Vehicle Type Tab the bar to switch Sedan/SUV/Truck LDWS On/Off (default On) 50km/h, 60km/h, 80km/h, 100km/h (default 80km/h) LDWS Sensitivity Tab the bar to switch speed FCWS On/Off (default On) FCWS Sensitivity Low/Middle/High (default Middle) FVSA...
- Page 10 7. File list You can view and play the recorded videos through ❶ ❷ ❸ ❹ ❺ File list. Driving recorded videos. Recorded videos ❶ Drive are saved for 1minute segment with an auto- looping mechanism. Event-triggered videos. Video saved for 30 ❷...
- Page 11 10. Edit video and share You can edit the recorded videos in the file list. To start the editing, video should download to your smartphone first. Edit the video then share it after disconnect VUEROID Wi-Fi and use mobile network.
- Page 12 11. Setting You can set the features as your preferences using VUEROID smartphone App or PC viewer. Image Quality Voltage Cut-off Voltage and Time Parking Record, Driving Record Recording Low Power Mode Driving, Parking Mode Rear Recording in Parking Driving and Parking Impact...
- Page 13 Using PC Viewer (Windows/Mac) 1. Software download and install You can download VUEROID PC Viewer software from the VUEROID website (https://vueroid.com/support/downloads) and install it on your PC. 2. Start PC Viewer (1) Insert the MicroSD Card to your PC. (2) Open VUEROID PC Viewer.
-
Page 14: Product Specifications
Product Specifications Front: SONY STARVIS 2 (IMX678) Camera Sensor Rear: SONY STARVIS (IMX307) Front: (D)165° x (H)125° x (V)62° View Angle Rear: (D)139° x (H)101° x (V)60° Memory Card MicroSD Card support 16GB/32GB/64GB/128GB/256GB Wi-Fi Built-in Built-in Front: Security & Status LED LED Indicators Rear: Security LED G-Sensor... -
Page 15: Frequently Asked Questions
3) Damage caused by service performed by anyone who is not an authorized service provider of VUEROID. 4) Damage to a product by using power or accessories not supplied by VUEROID. Firmware and Manual download is available in VUEROID website... - Page 16 www.vueroid.com...
