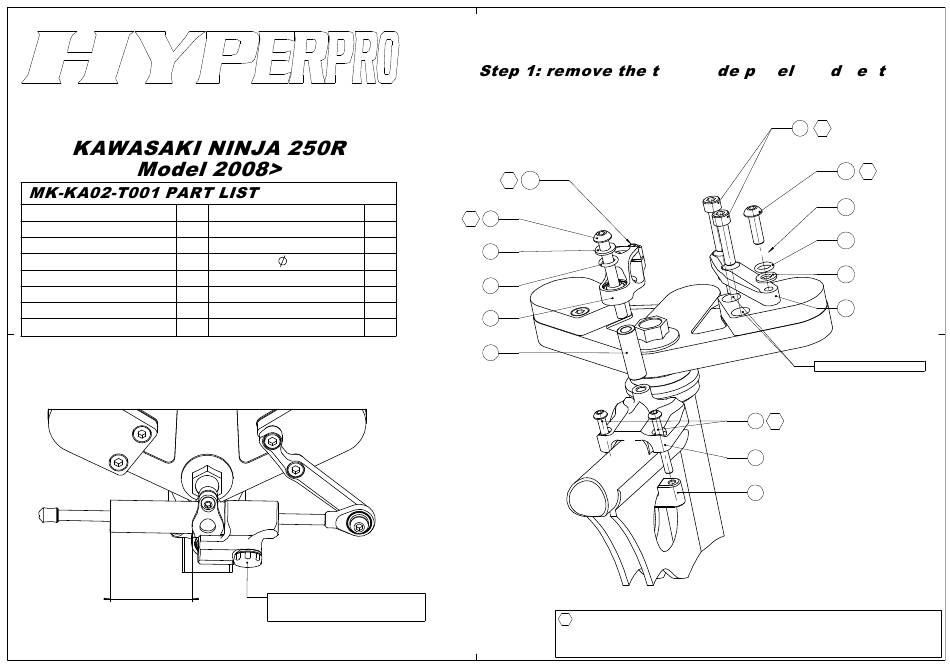

HYPERPRO MK-KA02-T001 Installation Instructions

STEERING DAMPER MOUNTING KIT
for
SD stroke 75 1
Tube Clamp [DB018235] 1
O-Ring 2
Fork Bracket [FOMK75] 1
Tank Bracket 1 [TAMK65-1] 1
Tank Bracket 2 [TAMK65-2] 1
Spacer [SP081441] 1
M6x50 Button head 2
ALL IDEAS, DESIGNS ARRANGEMENTS AND PLANS INDICATED OR REPRESTENTED BY THIS DRAWING ARE OWNED BY HYPERPRO
AND WERE CREATED, EVOLVED AND DEVELOPED FOR USE ON AND IN CONNECTION WITH THE SPECIFIC PROJECT. NONE SUCH
IDEAS, DESIGNS, ARRANGEMENTS OR PLANS SHALL BE USED BY OR DISCLOSED TO ANY PERSON, FIRM OR CORPORATION FOR
ANY PURPOSE WHATSOEVER WITHOUT THE WRITTEN PERMISSION OF HYPERPRO.
Distance X = 62mm
M8x25 Button head 1
M8x35 2
M8x70 Button head 1
Washer M8 16 2
- -
- -
- -
- -
Damping adjustment knob:
- turn CW to increase damping,
- turn CCW to decrease damping.
Clamp bolt C 5a
M8x70 B B 8
Washer M8 7
O-ring 6
Clamp 5
Spacer 4
* TORQUES
A: 5-9Nm / 44-80Lbs.In / 4.0-6.4Lbs.Ft
B: 14-17Nm / 124-150Lbs.In / 10.3-12.5Lbs.Ft
C: 6Nm / 53Lbs.In / 4.4Lbs.Ft
MK-KA02-T001.SldDrw, SHEET 1 OF 2 - 3-2-2009
!"# $% ! $ ! $
9 B M8x35 [2x]
14
13
12
11
10
remove original bolts
3 A M6x50 B [2x]
1 Frame bracket 1
2 Frame bracket 2
D: 8Nm / 70Lbs.In / 5.9Lbs.Ft
E: 55Nm / 486Lbs.In / 40Lbs.Ft
F: Factory torque (see owners manual)
B M8x25 B
Damper S75
O-ring
Washer M8
Fork bracket
