- Page 1 AURA SMART SWITCH User Guide T0006624 - AURA Document Number: Document Version: Release Date: 31 May 2024...
-
Page 2: Table Of Contents
Remote Operation ......................8 Local Operation ........................ 8 LED Behaviour ........................8 Basic Downlinks ......................9 Data converters ......................11 Safety Precautions ..................... 12 Compliance Statements ..................... 13 TEKTELIC Communications Inc. T0006624-AURA_UG_Version 2 User Guide Confidential Page 2 of 14... -
Page 3: Product Description

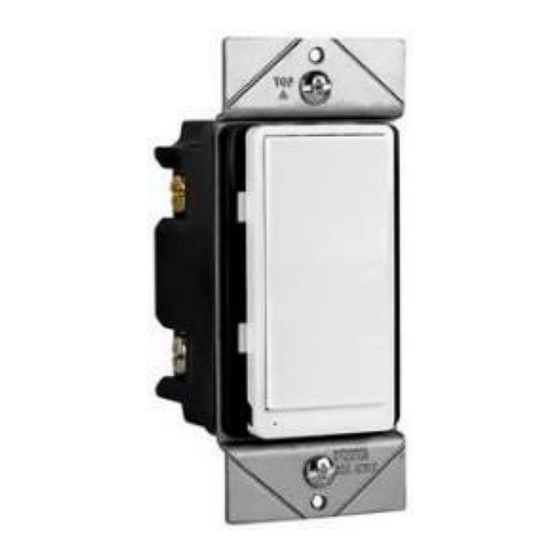

Product Description 1.1 Overview AURA is a 120V Smart Switch has the form factor of a standard AC Decorator style rocker switch (see Figure 1-1) but incorporates a LoRa radio with power control and monitoring circuitry which allows for the following remote user features: •... -
Page 4: Specifications
1.2 Specifications AURA specifications are listed in Error! Reference source not found.. The main sensing functions are described in the following subsections. Table 1-1: AURA Specifications Parameter Specification 43 mm (1.7”) W x 47 mm (1.85”) D x 104 Dimensions mm (4.1”) H... -
Page 5: Operating Instructions
2.3 Installation Procedure The following steps are required to install AURA: 1. Locate the electrical box into which AURA will be installed. 2. Remove power to the wiring by turning off circuit power at the circuit breaker or fuse panel. - Page 6 7. Connect the wires to the module in accordance with the wiring diagram by inserting the bare wire fully into the wire hole for each of the Line (Hot), Load, Neutral Wire and Ground terminals on the switch module. TEKTELIC Communications Inc. T0006624-AURA_UG_Version 2 User Guide...
-
Page 7: Commissioning
11. Commission as LoRaWAN Class C device on the appropriate LoRa network. 2.4 Commissioning AURA is a Class C device that has a set of commissioning information that must be entered into the network server for the sensor to be able to join the network and begin normal operation once activated. -
Page 8: Operation
By default, the switch load will be off after AC power is applied to the module. This is a LoRaWAN Class C device which means one can send a downlink to AURA and get a reply in close-to-real time without the wait of an uplink to transmit the downlink. -
Page 9: Basic Downlinks
To Change the Core Report To Every 15 Minute Send the Downlink: a0 00 00 03 84 port 100. Aura doesn’t have a decoder included in Atlas. However, it is possible to send the downlink in online mode as shown in the picture. - Page 10 ▪ Total energy consumed: 27216 W-h (= 27.216 kW-h) o Energy Consumption Meter Status Indicator: ▪ Status: Idle (stopped) Example of data on LeapX Figure 4-4 LeapX application TEKTELIC Communications Inc. T0006624-AURA_UG_Version 2 User Guide Confidential Page 10 of 14...
-
Page 11: Data Converters
TEKTELIC’s data converters conform to the LoRa Alliance Payload Codec Specification and can be used with any 3 party Network Server / Application Server that supports this specification. https://resources.lora-alliance.org/technical-specifications/ts013-1-0-0-payload-codec-api TEKTELIC Communications Inc. T0006624-AURA_UG_Version 2 User Guide Confidential Page 11 of 14... -
Page 12: Safety Precautions
6 Safety Precautions The following safety precautions should be observed for AURA installation: • TO AVOID FIRE, SHOCK, OR DEATH, ALWAYS TURN OFF POWER at the circuit breaker or fuse panel before wiring the module! • If you are unsure or uncomfortable with installation of this module, consult an electrician. -
Page 13: Compliance Statements
7 Compliance Statements Federal Communications Commission: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 14 WARNING: This product can expose you to chemicals including lead, nickel, and carbon black, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. TEKTELIC Communications Inc. T0006624-AURA_UG_Version 2 User Guide...
