Betta SE PLUS Owner's Manual

www.BettaBot.com
888-692-3882 (888-MyBetta)
562-579-0001
info@BettaBot.com
Parts List
1. Cover Lock
2. Distance Measure Sensor
3. LED Status Indicator
4. Guide Wheel
5. Propeller
6. Anti-stranding Bar
7. Solar Panel
8. Power Switch
9. Cover
10. Debris Collection Basket
11. Debris Intake Impeller
12. Handle
13. Charging Port
14. Charging Port Cover
4. Using Betta SE PLUS for the first time
4.1 Using for the first time
Note: If you are charging by solar power, the unit must be turned
ON. If you are charging Betta SE Plus by power adapter, the unit
must be turned OFF.
Be sure to watch your steps and maintain your balance when working by the
pool side.
Step 1. Slide the power switch to the position that you can see "ON" mark to turn on the
unit. LED status indicators at front will flash and then the propellers and impeller
will start running.
Step 2. Place Betta into your pool and it will start moving and cleaning the pool's surface.
Betta runs in either Auto Mode or Remote Control Mode during operation.
Auto Mode
Betta is designed and programmed to be fully self-driving. It maneuvers and guides
itself by reading the sensors and managing operations and charging smartly on its own. By
default, the unit will be working in AUTO mode unless it's operated by the remote control.
Remote Control Mode
You can manually control Betta's movement and travel path in the pool using
included remote control when needed. For example, if you want to Betta to go left, just
press and hold the left button on the remote. Remote Mode gives you the fast control to
move Betta wherever you want.

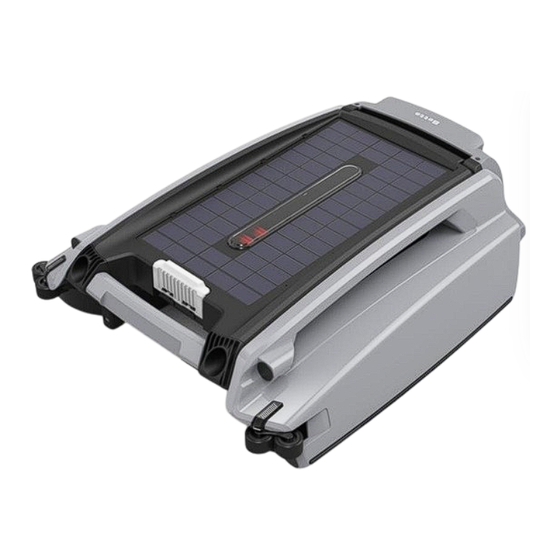

Betta® SE PLUS
Smart Pool Skimmer
Owner's Manual
1. Important Safety Instructions
 DO NOT SWIM while Betta is working in the pool. Take it out of the pool and
keep it at a cool place under the shade when the pool is in use.
Betta Smart Pool Skimmer is NOT a toy. Keep it away from children.

Be sure to watch your steps and maintain your balance when working by the

pool side.
 Do not use while other pool cleaning devices are in the pool.
During swimming season, keep Betta in the pool all the time unless the pool

is in use or the unit needs cleaning or service.
Do NOT leave Betta in a hot and dry spot out of the pool unattended to

avoid severe damage to the unit.
Do NOT wash Betta using pressure washer as it would cause damage to the

unit.
2. About Betta SE Plus
Thank you for purchasing Betta the smart pool skimmer. Betta will provide you
with years of reliable service when it is well taken care of and maintained properly.
Be sure to read all the instructions in this manual to fully understand how to use and
care for the unit.
Betta is a smart pool skimmer that mostly runs by itself. It works as a pool
surface cleaner/skimmer and is powered by the solar panel or can be charged using
a charging adapter that charges the battery built inside. Betta is fully self-driving
unless controlled by the optional remote included. It has a control board and various
sensors including a Gyro scope to guide itself while maneuvering on the pool surface.
The unit picks up floating debris in its path and collects it into the removable
collection basket inside. Typically, every 2-3 days, you can remove the unit from the
pool and empty the collection basket and clean the unit using water hose. It goes
back to the pool and starts working right away after cleaning is done.
3. Components
4.2 Remote Control
Pairing Betta with a New Remote
You should be able to use the remote control out of the box since it's paired with
your Betta in the factory. You only need to pair it if it doesn't work, or you replaced
either the Betta unit or the remote control. See instructions for pairing below.
Press any button on the remote control. Betta will instantly enter Remote Control
Mode. Press and hold the left button to move Betta left, press and hold the right button
to move Betta right, so on and so forth.
To go back to Auto Mode, press the middle button down for 2 seconds, and Betta
will go back to Auto. Also, if you do not operate Betta with the remote control for 2
minutes, it will go back to Auto Mode by itself.
Pairing: First, slide the power to "Off" position to turn off the unit. Second, slide the
switch to "ON" to turn it on. Press any button once on the remote control within 5
seconds after you turn on the unit. Test the buttons on the remote after the 5 seconds
and see if the unit is moving accordingly. If yes, the paring completes. If not, repeat this
procedure from the beginning. If no success on paring, please contact Betta customer
service.
4.3 LED Light Status Indicator
LED light status indicators (one on each side at front) will show the operation status
information of working conditions of the unit.
Standard Mode: lights flash in Green.
Status: there is enough power, the unit will keep running.
Intermittent Mode: lights flash in Red.
Status: the battery is low; the unit is running at irregular intervals in
attempts to locate sunlight where it can be recharged.
Sleep Mode: all indicator lights are off.
Status: the battery is very low, or battery becomes completely
discharged.
Remote Mode: lights are in steady Green.
Status: the unit is controlled manually via a remote control.
Strand Mode: lights flash in combination of Red and Green.
Status: the unit's propellers or impeller is not working properly, most likely
it has been stuck by obstacles or cannot run freely. In this case it will stop
running automatically. The unit will try to restart every 20 minutes when it
is in Strand Mode.
4.4 Use of Anti-stranding Bumper Bars and Extended Front Bumper
Rods
When to use:
If there are shallow stairs or other structures in your pool, Betta may be stuck on it.
You can adjust the built-in anti-stranding bars to solve this problem.
How to use:
Press the upper button on the bar housing and pull down the bars. Each bar can be
set in two positions in height. Adjust them in pairs – both front and/or both rear to keep it
balanced.
Retrieving the anti-stranding bars: Press the down button on the bar housing and push
the bar up until it's fully in position. Do it one by one.
