- Page 1 PXI Express Embedded Controller 3U 4 TE I3-1115G7E 16-500 User Manual Release 1.0 22.02.2024 Doc-No: 63972-442 SCHROFF GmbH Langenalber Str. 96-100 75334 Straubenhardt/Germany SCHROFF.nVent.com Date: 2024/02/22 Page: 1 of 18...
- Page 2 R1.0 February 2024 Preliminary Release Table 1: Revision History This document is furnished under license and may be used or copied only in accordance with the terms of such license. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by nVent.
-
Page 3: Table Of Contents
Table of Contents 1 References and Architecture Specifications ..............5 Related Documents ....................... 5 Safety Certification ......................5 CE / UKCA Compliance ....................5 2 Technical Information ...................... 6 Description ........................6 Functional Block Diagram....................6 Technical Data ......................7 General View......................... - Page 4 6 Service ..........................17 Technical support and Return for Service Assistance..........17 Warranty ........................17 Disposal ........................17 7 Figures ..........................18 8 Tables ..........................18 Date: 2024/02/22 Page: 4 of 18...
-
Page 5: References And Architecture Specifications
1 References and Architecture Specifications Related Documents This product meets the requirements of the following specifications: • IEEE 1101.1-199, including IEC 603-2 Connectors • IEEE 1101.10, including IEEE 1101.1 Equipment Practice, • ATX Specification Version 2.4 • PICMG EXP.0 Revision 2.0 CompactPCI Express Specification •... -
Page 6: Technical Information
2 Technical Information Description The nVent SCHROFF PXI Express / CPCIexp Embedded Controller 21265-120 delivers exceptional performance and versatility in a remarkably compact 3U, one-slot form factor. Powered by an 11th Generation Intel® Core™ i3-1115G7E processor, it boasts two cores clocked at 2.2 GHz with 6 MB cache and a low 15W TDP, ensuring efficient operation without... -
Page 7: Technical Data
Technical Data The following table provides general technical product information of the nVent SCHROFF PXI Express Embedded Controller 21265-120. Physical parameters Height 128.7 mm (aligns with 3U card cages) Width 20.3 mm (4TE) 212.3 mm (165.04 mm without handle) Depth... -
Page 8: General View

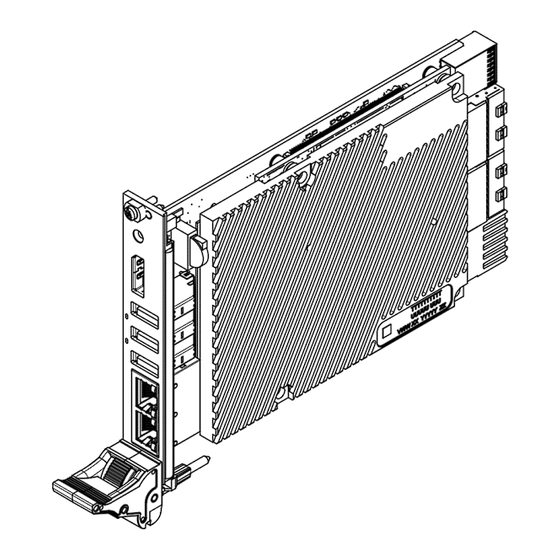

General View The compact 4 TE, 3U PXI Express controller 21265-120 features a front panel equipped with a convenient latch-off mechanism for easy access to the interior. A mounted heat sink ensures efficient thermal management, keeping the system cool and reliable. Figure 1: Isometric Front View Front Panel 3U 4TE Front handle with lock and ejector... -
Page 9: Interchangeable Components
Interchangeable Components Generally the controller is easily maintainable and ready for hardware updates by changing modular core components. Please note that there is no longer a warranty claim after technical modifications. For replacement accessory or mixed hardware inquires contact us! BIOS Battery: 63918013 CR1225 Lithium 3V Battery Cell... -
Page 10: Technical Drawings
Technical Drawings Figure 2: Front and Top View Date: 2024/02/22 Page: 10 of 18... -
Page 11: General Installation
3 General Installation Unpacking ATTENTION When opening the parcel and ESD bag, use caution to avoid damaging the controller. Consider the following when unpacking and storing the system controller: • Leave the system controller packed until it is needed for immediate installation. •... -
Page 12: Safe Shutdown Sequence
Safe Shutdown Sequence Your PXI Express chassis and controller has to be seen like an regular Windows-based PC and should not be shut down by direct unplugging the power cord, switching off the main switch or deasserting the system controller during runtime. To avoid damaging your system controller, peripheral cards and its data, follow these secure shutdown methods: 1. -
Page 13: Supported Operating Systems
Initial Setup software package. This package includes essential drivers, a system manager tool, pre-configured INI files, and registry settings for optimal PXI system operation. Download the latest version of nVent SCHROFF PXIe Initial Setup from link above. Before installing the SCHORFF Initial Setup it is mandatory to install a PXI Resource Manager Software Environment, e.g. -
Page 14: Interface Description
4 Interface description Front Panel LED Indicators On the front panel of the embedded controller there are two status control LEDs and two indicator LEDs per Ethernet port. At the following table the functions and a short description of their indicated behavior are listed. Function Color LED status Behavior... -
Page 15: Ethernet
Additionally, you can retrieve essential information like chassis and controller EEPROM data. Within a nVent SCHROFF chassis, you can monitor real-time temperature, fan speeds, and voltage levels, gaining valuable insights into system health. Moreover, you can directly apply desired configurations, adjusting fan speeds, setting trigger segments and maintaining specific firmware parts for optimal operation. -
Page 16: Safety
5 Safety Safety Instructions - Disclaimer nVent SCHROFF accepts no liability for any errors in this documentation. To the maximum extent permissible by law, any liability for damage, direct or indirect, arising from the supply or use of this documentation is excluded. - Page 17 Warranty All nVent SCHROFF hardware features a two-year standard warranty that is extendable upon request. nVent SCHROFF offers repair services performed in a timely manner by highly trained factory technicians. Declaration of Conformity (DoC)—A DoC is our claim of compliance with the Council of the European Communities using the manufacturer’s declaration of conformity.
- Page 18 7 Figures Figure 1: Isometric Front View ....................8 Figure 2: Front and Top View ....................10 Figure 3: Screenshot of nVent SCHROFF PXIe Initial Setup ........... 13 8 Tables Table 1: Revision History ......................2 Table 2: Technical Data ......................7 Table 3: Front Panel LED Indicators ..................
