Summary of Contents for aerofoils e-tron Foil

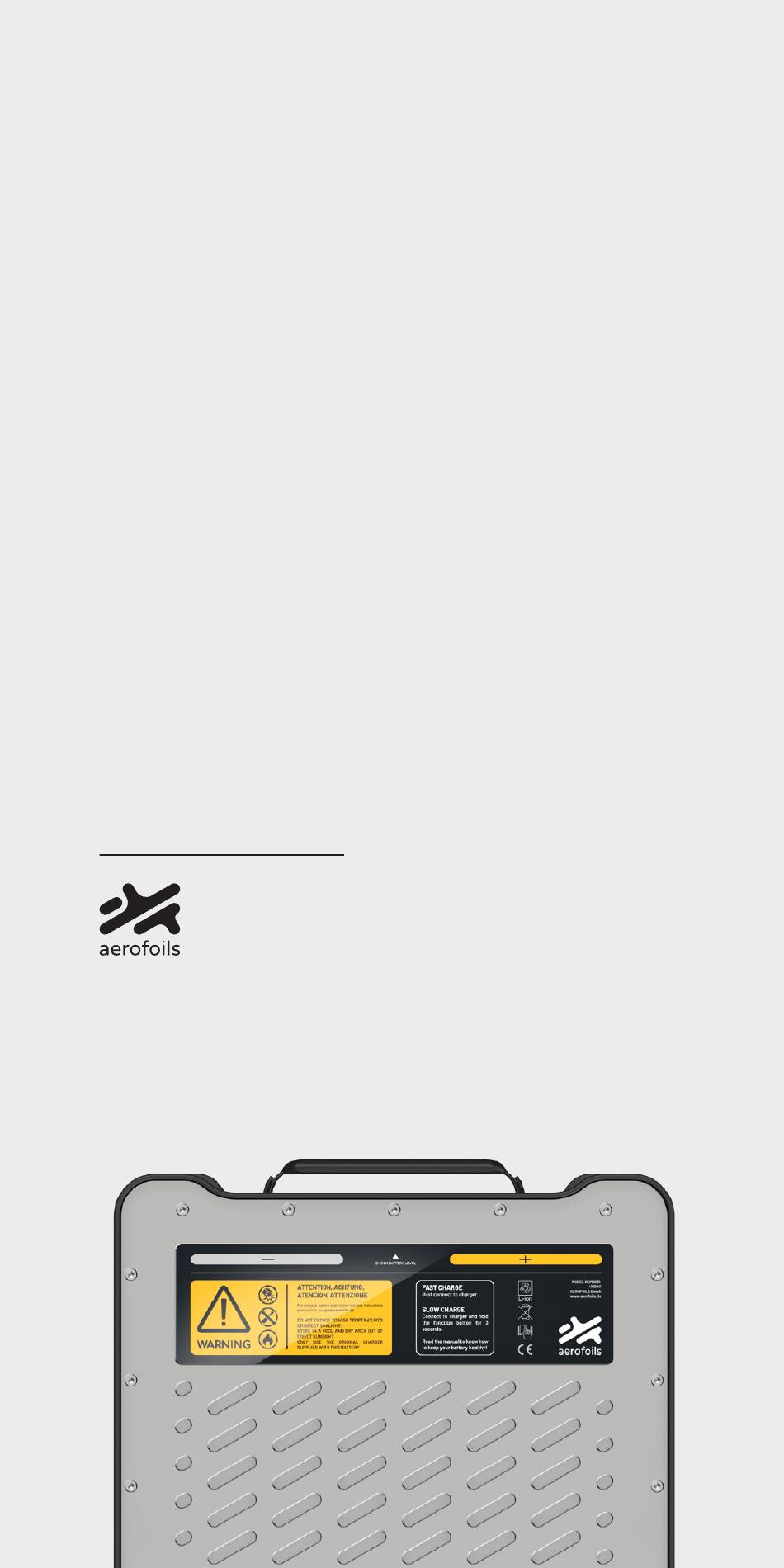

- Page 1 Foil Battery...
-
Page 3: Table Of Contents
Table of Contents 1 Safety 1.1 General Information ......4 1.2 Safety and Warning Instructions for Use ..4 2 Manufacturer 3 Battery Components 4 Operation and Display... -
Page 4: Safety
Any vapours escaping from the battery are harmful to your health. Liquid may leak from the battery if used incorrectly. » Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek aerofoils... - Page 5 One or more batteries must not be stored in a box or » drawer where they may short-circuit each other or be short-circuited by other conductive materials. The battery may only be used for the e-tron foil. » Always remove the battery from the e-foil when the »...
-
Page 6: Manufacturer
Therefore, if you are unsure about whether your battery may be defective, contact the Aerofoils GmbH support team imme- diately at: www.aerofoils.de/support aerofoils... -
Page 7: Battery Components
3 Battery Components Number Description Power contact - minus Power contact - plus Contact socket - data plug Cooling plate Control and display panel Carrying handle Warning against hot surfaces The cooling plate may become hot after using the battery. aerofoils... -
Page 8: Operation And Display
LED 1,2,3 are lit up >60 to 80% LED 4 flashes LED 1,2 are lit up >40 to 60% LED 3 flashes LED 1 is lit up >20 to 40% LED 2 flashes 0 to 20% LED 1 flashes aerofoils... -
Page 9: Fast Charging
4.4 Storage of the Battery Ensure optimum storage conditions if you are not using your e-tron foil for a longer period of time (>4 weeks). The optimal charge level (SoC= State Of Charge) is about 30% of the bat- tery's maximum capacity. Activate the storage mode with the... -
Page 10: Sleeping Mode
LEDs light up to indicate that the battery is switched off when the button is released. If the function button is pressed for >10 seconds in the » case of an error code, the current state of charge is displayed. aerofoils... -
Page 11: Battery Functionality
IDLE mode. 5.3 Soc Charge Level Monitoring The current state of charge (SoC) is displayed via the 5 LEDs on the battery display (see Chapter 4 - Operation and Display). aerofoils... -
Page 12: / Activation Of The Battery And Output Voltage
Recommended charging current Fast charging Dimensions 296mm x 80mm x 432mm Weight 13.2 kg Protection class IP67 (dust- und waterproof) Recommended storage temperature 0°C to 25°C / less than 65% humidity / humidity Recommended charge level for 30% to 60% storage aerofoils... -
Page 13: Discharging Process
CAN charger. During the charging process, the BMS communicates with the charger and thus regulates the charging process. If the bat- tery management system detects an error, a shutdown takes place as described in Chapter 5 - Battery functionality. aerofoils... -
Page 14: Storage And Maintenance Instructions
Clean the plug pins from time to time. » If the battery is no longer functional, please contact » an authorised specialist dealer or Aerofoils GmbH. Protect the battery immediately after disconnecting » it from the charger or application. Neither moisture nor foreign particles (e.g. -
Page 15: Transport Instructions
Please also observe any additional national regulations. If you have any questions about transporting the battery, plea- se contact an authorised dealer or Aerofoils GmbH factory support: www.aerofoils.de/support Transport Regulations Lithium batteries are subject to the following dangerous... -
Page 16: Instructions For Disposal
Suitable measures against short circuits are e.g. : Place the batteries in their original packaging or in a » plastic bag. Tape off the power contacts. » Embed in dry sand. » Subject to change without notice. aerofoils... - Page 17 Aerofoils GmbH Brauneckweg 14 85748 Garching...
