where inspiration flows
MUSE
Installation Guide

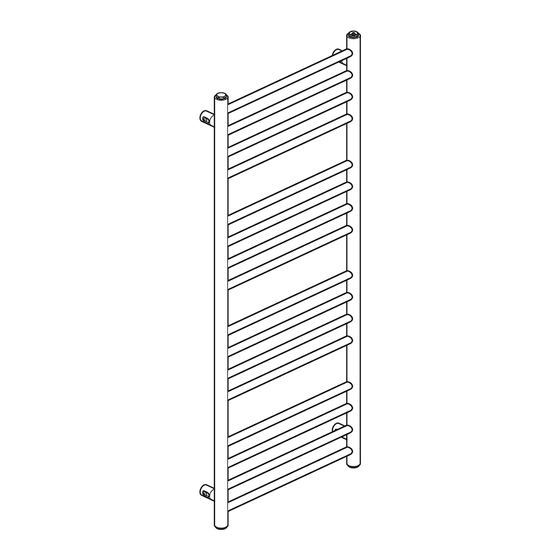

Heated towel rail, round
MUS-HTR-RO1200
This instruction booklet covers these models:
MUS-HTR-RO1200
(All finish options)
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
fax 01934 744345
aftersales @ vado.com
www.vado.com
Keep for future reference
Version 1, 1-1-24
Advertisement
Summary of Contents for VADO MUSE MUS-HTR-RO1200

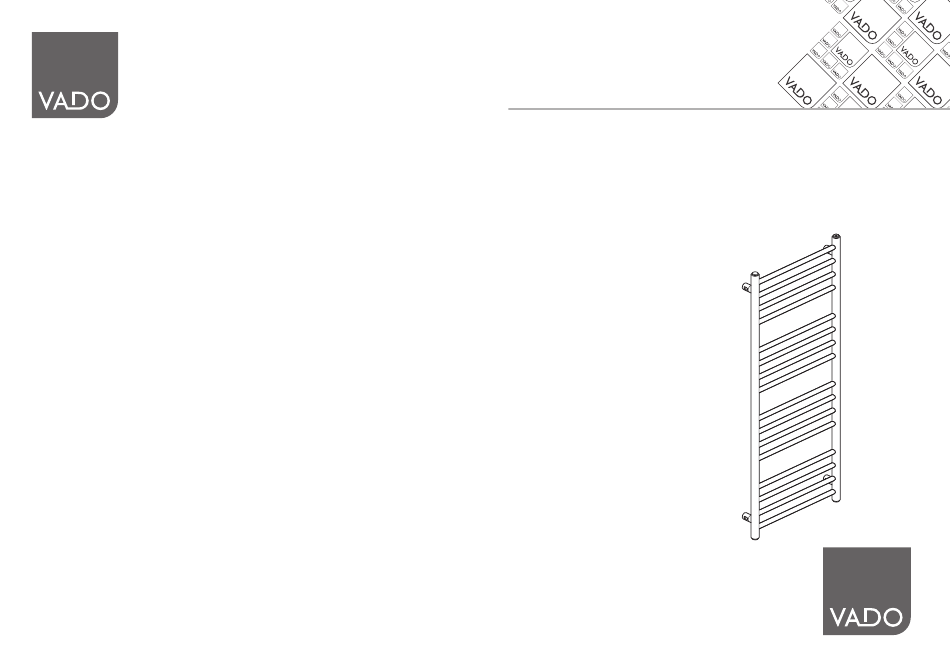

- Page 1 Heated towel rail, round MUS-HTR-RO1200 This instruction booklet covers these models: MUS-HTR-RO1200 (All finish options) Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466. fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-1-24...
- Page 2 Important - Please Read Contents of Packaging VADO reserves the right to make technical improvements and enhance the appearance of the products included in this instruction manual. Please read these instructions carefully before starting the installation and keep for future reference.
-
Page 3: Installation
Dimensions Installation 500mm 468mm 76-86mm 44-54mm Drill bit Wall plug Note: The screws and plugs supplied are suitable for solid walls only. Measure and note the distance between the centres of the four mounting keyholes. Determine the desired location of the heated towel rail. Using a spirit level, mark the hole location on the wall. - Page 4 Installation Installation Bracket assembly Bracket insert Housing Housing Screw Pan head screw Housing Washer Screw Level Bracket Screw Ensure slot is facing down Disassemble the wall brackets and attach each housing to the wall using a washer and screw. Ensure the slot is facing down on each bracket housing. Note: Use the pan headed screws Screw...
- Page 5 Installation Notes: Bleed cap Blanking Plug Using a spanner, screw the caps onto the top of the heated towel rail.
- Page 6 In situations where like-for-like replacements are not possible, VADO will endeavour to provide the closest alternative. E&OE. NOTES: [1] Labour via our engineer network is only available in the UK. Attendance by a VADO engineer or sub-contract engineer will be under our standard terms and conditions. [2] Excludes any electrical components.
