BAS – Meade LX90 8" Telescope - User Guide
This is a brief guide to setting-up and observing with the Meade LX90 8" Schmitt Cassegrain
telescope. The guide explains each step in some detail. However, in summary, the main steps to
setting up the telescope and aligning it with the stars are:
•
Attach the telescope to the tripod.
•
Attach the finderscope and star diagonal and eyepiece to the telescope.
•
Align the finderscope crosshairs to indicate the same place the telescope points towards.
•
Align the optical tube to horizontal and pointing toward true north.
•
Attach the 12V DC battery and power cord.
•
Turn the telescope ON.
•
Input the current date, time, time zone, daylight savings status.
•
Select the Two Star Alignment method.
•
Align the telescope with two initial stars.
The telescope is now ready to use.

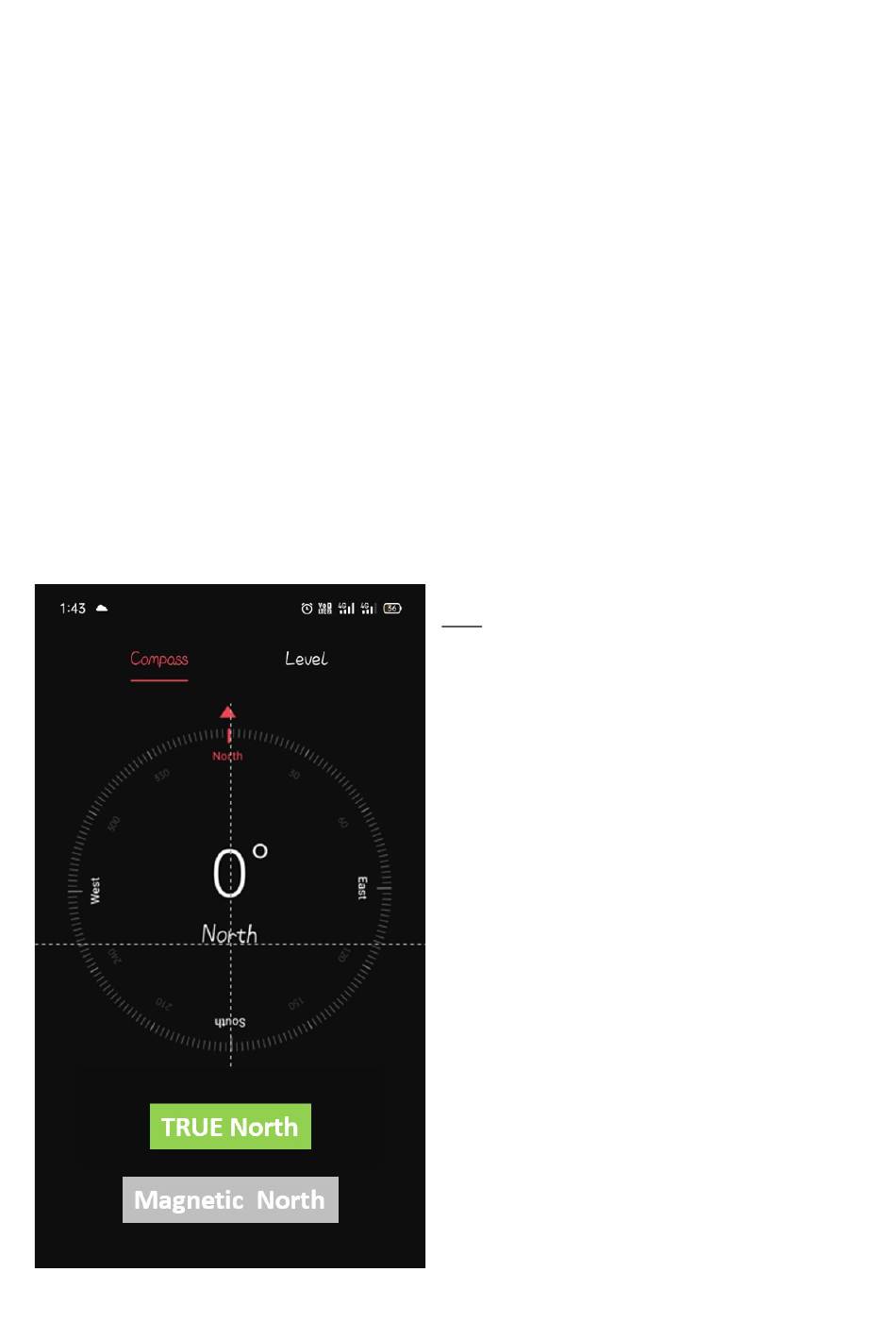

You will need a good Compass App
Before heading out to set-up this telescope, you
must load a good compass app into your
smartphone. Having an accurate compass is
essential to being able to performing an initial two-
star alignment and subsequently being able to slew
the telescope to desired targets.
BAS recommends you load a compass app that
allows you to select TRUE NORTH as the display
option (rather than magnetic north).
The Safety of You and the Telescope
Do not set this telescope up, and attempt to use it,
during the day when there is a risk the Sun could
shine directly into the uncovered front lens of the
telescope. The concentration of heat from the 8-
inch diameter mirror can cause instant blindness to
anyone looking through telescope eyepiece. In
addition, internal components of the telescope will
rapidly, and irreparably, melt.
The storage box has wheels and detachable "wheel
barrow" handles for easier movement.
1
