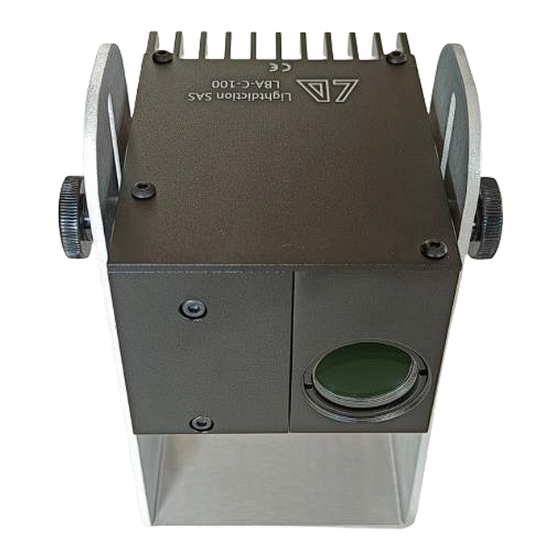

The LBA-C-100 is a beam analyzer designed to
handle high continuous power while measuring
beam parameters like the divergence or RGB
alignment of laser sources.
A PC interface enables to do a live measurement
while focusing or aligning the beams safely.
FEATURES
➢ C
OMPACT AND ROBUST DESIGN
➢ V
-
ERY
HIGH RESOLUTION
➢ H
ANDLES HIGH CONTINUOUS POWER
➢ E
ASY SETUP
➢ E
PC
ASY
INTERFACE
➢ L
IVE MEASUREMENTS OF ALIGNMENTS AND DIVERGENCES
➢ P
OWER AND COMMUNICATION THROUGH
TYPICAL APPLICATIONS
➢ L
ENS COLLIMATING OF LASER SOURCES
➢ D
IVERGENCE MEASUREMENTS
➢ A
RGB
CCURATE
ALIGNMENTS WHEN MANUFACTURING
➢ P
OWER MEASUREMENT
Lightdiction SAS
Lightdiction
User Manual
Lightdiction LBA-C-100
Laser Beam Analyzer
USB
,
OR BEFORE SHOWS
LBA-C-100 User Manual
LBA-C-100
05/09/2015
Page 1/12
March 2024 rev 1.3
Advertisement
Table of Contents
Summary of Contents for Lightdiction LBA-C-100

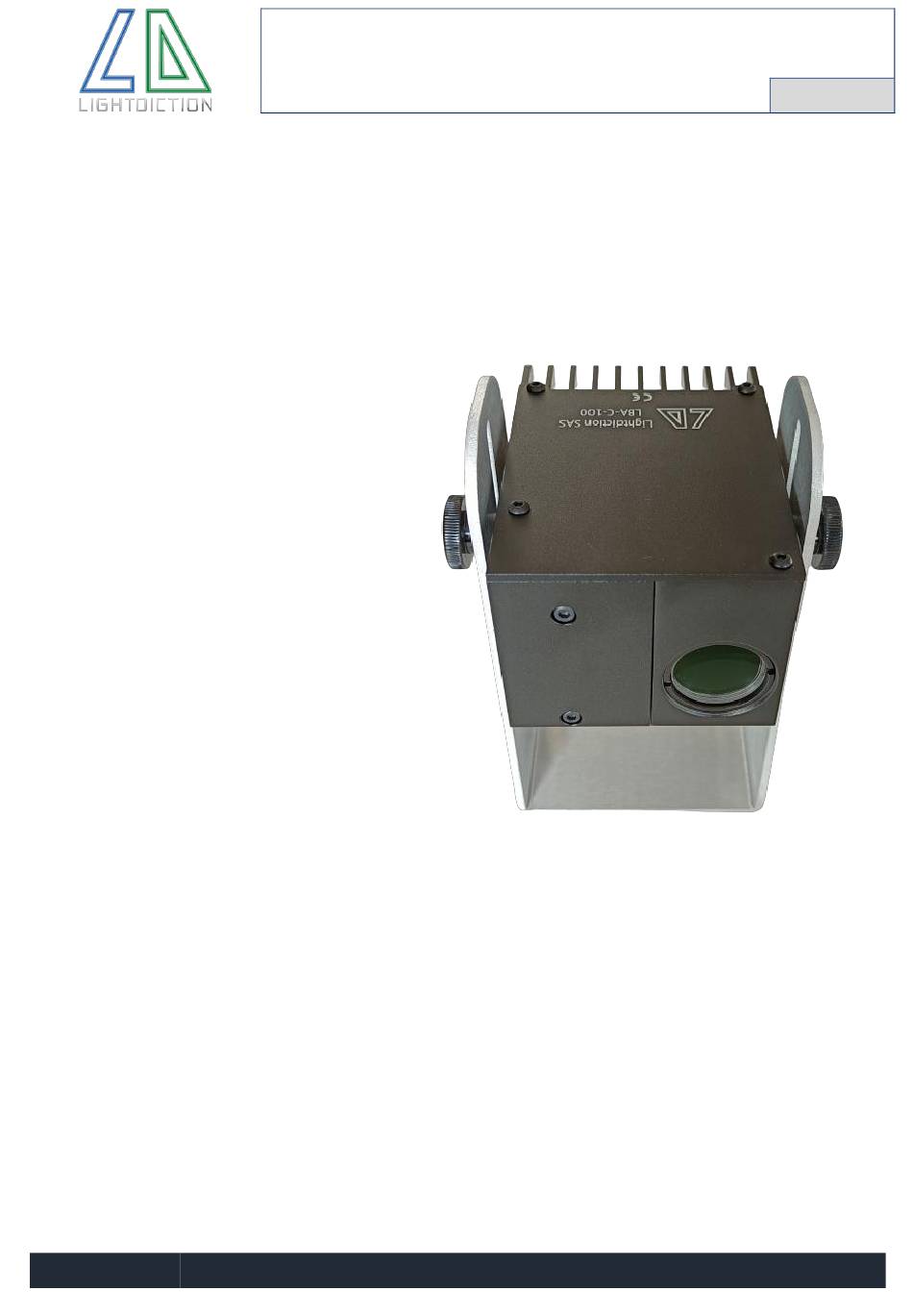

- Page 1 LBA-C-100 Page 1/12 Lightdiction LBA-C-100 Laser Beam Analyzer The LBA-C-100 is a beam analyzer designed to handle high continuous power while measuring beam parameters like the divergence or RGB alignment of laser sources. A PC interface enables to do a live measurement while focusing or aligning the beams safely.
-
Page 2: Table Of Contents
Requirements ............................... 3 How to use the LBA-C-100 ............................4 Download and install the software ........................4 Shoot the laser beam on the LBA-C-100 ......................4 ADJUST THE EXPOSURE ............................6 Measure the divergence and color alignment ....................7 MEASURE THE POWER ............................8 CALIBRATIONS .............................. -
Page 3: Presentation Of The Device
User Manual to prevent damage to the system. 2. REQUIREMENTS The LBA-C Laser Beam Analyzer requires the following to work: ➢ USB 3.0 port ➢ Computer with windows 10 or 11 installed Lightdiction SAS LBA-C-100 User Manual March 2024 rev 1.3... -
Page 4: How To Use The Lba-C-100
Then connect the USB cable to the LBA-C-100 and to your PC, using a USB 3.0 (or over) port. Start your “Lightdiction – Beam Analyzer” software. Select the LBA-C-100 sensor from the list, then start Streaming. Lightdiction SAS LBA-C-100 User Manual March 2024 rev 1.3... - Page 5 Create a beam pattern, with around 1000 points (~30FPS), or the maximum point number you can if 1000 is not possible, set it to low power and enable it. Incline slightly Left, right, Up and down the LBA-C-100 in front of your laser until you see a part of the “9 spots pattern”.
-
Page 6: Adjust The Exposure
But this also cause a little delay on the display. We recommend keeping the image stabilizer to a high value. Setting the Image Stabilizer to a low value generally cause inaccurate measures (divergence and power). Lightdiction SAS LBA-C-100 User Manual March 2024 rev 1.3... -
Page 7: Measure The Divergence And Color Alignment
3 colors to optimize the alignment. The LBA-C-100 is displaying the spot pattern as if it was projected at the “infinity”. To align the RGB and B or stacks of diodes, we should see 1 single spot on the LBA-C-100, with all colors superimposed. -
Page 8: Measure The Power
“Max” value can false the results, even on other colors. Then you should measure these colors individually. Keep in mind to always select the right spot, even when using the power measurement. Lightdiction SAS LBA-C-100 User Manual March 2024 rev 1.3... -
Page 9: Calibrations
This can also be used to measure other wavelengths than RGB (Yellow, orange, cyan, purple…). Select the wavelength you want to calibrate, and click on “Calibrate xxx”. It will display a window explaining the calibration process. Click on OK when you are ready. Lightdiction SAS LBA-C-100 User Manual March 2024 rev 1.3... -
Page 10: List Of All Commands
7. LIST OF ALL COMMANDS Command Description Select LBA sensor Select your LBA-C-100 device. Refresh (tool bar) Refresh the list of Sensors that can be used by the software. Start / Stop Streaming (tool bar) Toggle Start / Stop streaming with the sensor. -
Page 11: Precautions And Recommandations On Use
III. PRECAUTIONS AND RECOMMANDATIONS ON USE • Do not put the laser to the maximum power if the LBA-C-100 is not correctly placed in front of the laser projector (if the 9-spot pattern cannot be seen). • Check that the input lens is clean before shooting high power lasers through it, or it may burn the lens. -
Page 12: Common Issues
All Lightdiction products are sold pursuant to Lightdiction’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the Lightdiction products and services described herein, and Lightdiction assumes no liability whatsoever relating to the choice, selection or use of the Lightdiction products and services described herein.
