Summary of Contents for SPRENGER LAZY JACK SYSTEM

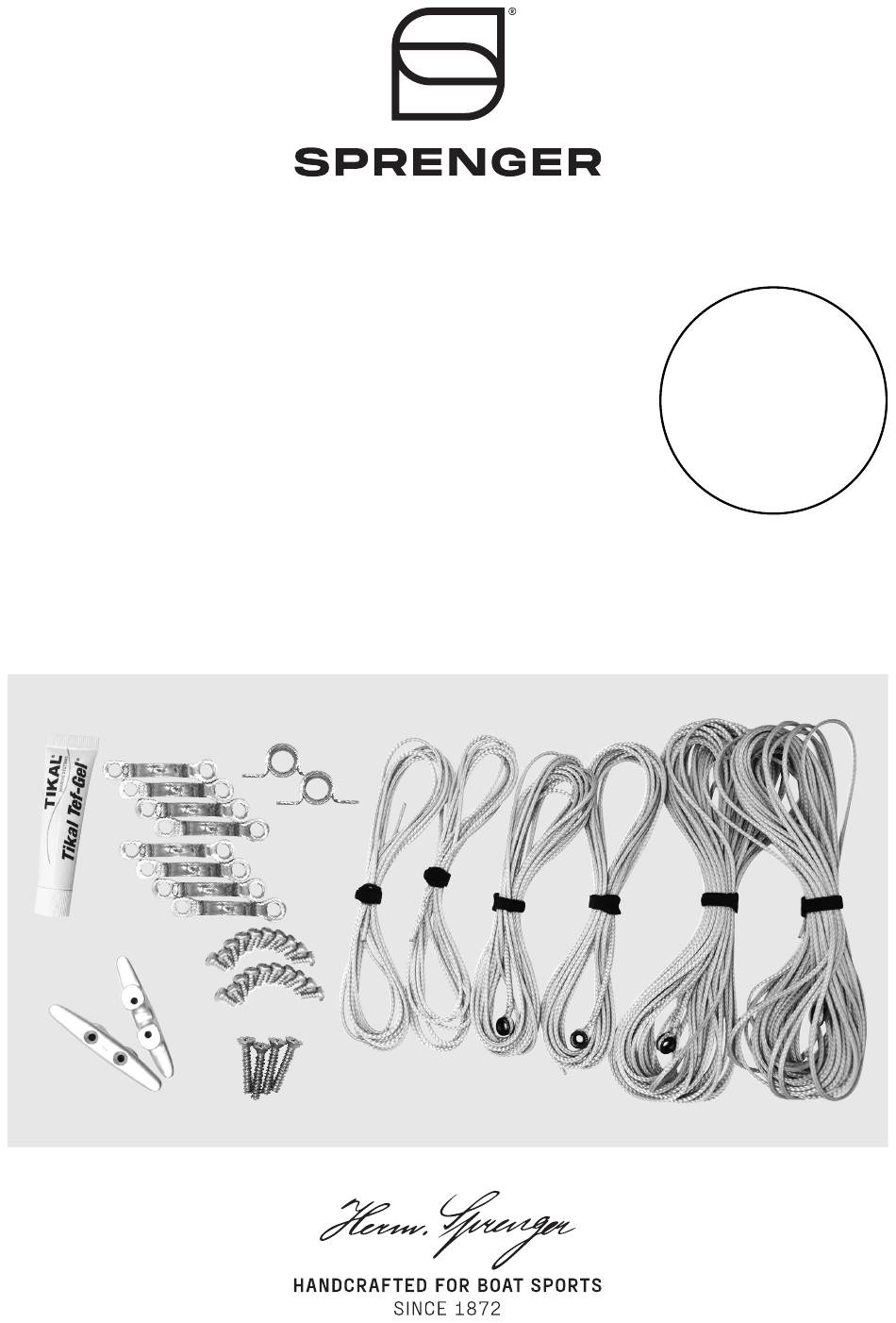

- Page 1 BIS MAX. 30 FUSS UP TO MAX. 30 FEET MONTAGEANLEITUNG JUSQU‘À 30 PIEDS MAX. ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE LAZY JACK SYSTEM...
- Page 2 FUNCTION TEST & HANDLING The lazy jack system is designed to help you lower (retrieve) the mainsail in a controlled manner. To do this, it falls into the pocket formed by the ropes. When sailing, we recommend that you pre-tie the illustrated rope unit to the mast.
- Page 3 ASSEMBLY INSTRUCTION LAZY JACK SYSTEM ENGLISH IMPORTANT TIPP: Avoid drilling errors and inaccurate drill holes: First drill a hole for all parts to be screwed then screw part into align it and then drill the other fi xing holes! The core drill holes for the self-tapping screws can be found in the assembly drawing.
- Page 4 Herm. Sprenger Metallwarenfabrik GmbH & Co. KG Alexanderstraße 10 – 21 · 58644 Iserlohn · Germany Tel.: +49 (0) 23 71 95 59-0 Fax: +49 (0) 23 71 95 59-939 VISIT SPRENGER.DE bootsport@sprenger.de www.sprenger.de...
