Summary of Contents for foras HumidiAs DH-320

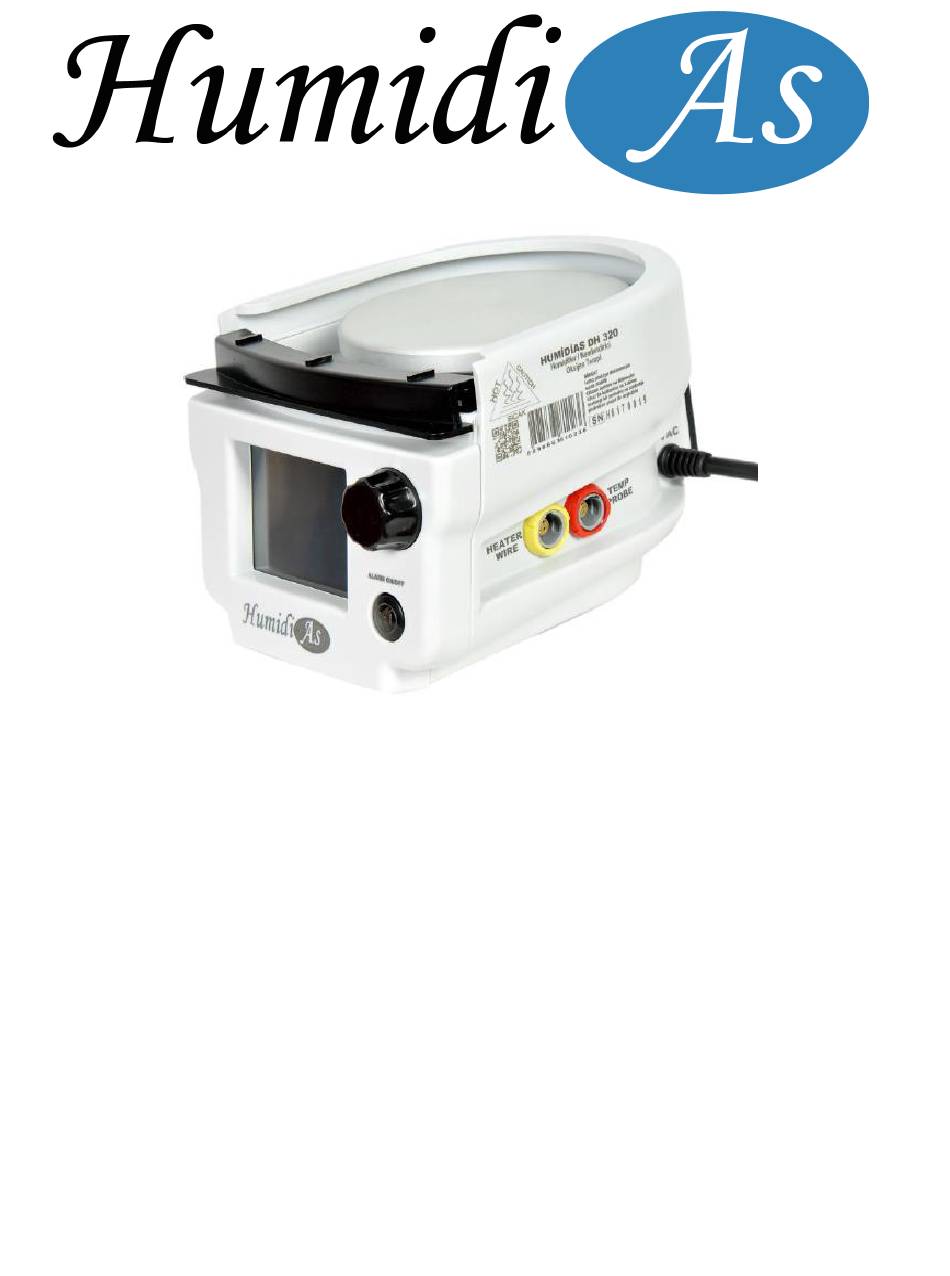

- Page 1 DH-320 Humidifier User Manual...
- Page 2 To verify the full performance and operating accordance with set values of HumidiAs DH-320 make the calibration and make the maintenance and settings of device according to the calibration value at least once a year.
- Page 3 Please act according to the troubleshooting chart if you encounter a problem while using HumidiAs DH-320 Humidifier. Foras Medical contact information is in the last page of this manual for help and notification. Do not use in environments with excessive dust.
- Page 4 Intended Use HumidiAs DH-320 Humidifier is designed to be used with devices such as ventilator, CPAP and BPAP. Device is not used with anesthesia gases. This type of device is used to give output air to the patient in human body temperature and necessary rate of humidity for human body.
- Page 5 DH-320 _____________________________________________________________________________ AC Power Consumption: 230 volts 50 / 60 hz Heater Table Capacity (Max): 90 W Heater Table Temperature: Between 45 °C and 110 °C Operating Temperature: Between 15 °C and 26 °C Storage Temperature: Between -20 °C and 60 °C Fuse: There are no fuses that can be replaced by user in the device.
- Page 6 DH-320 _____________________________________________________________________________ OPTIONS You can communicate with the device using rotary or touchpad screen. You can see adjusted humidity and temperature level on the left side and right side of current temperature level on the main menu. Main Menu Adjusted Temperature Measured Temperature Adjusted Humidity Alarm Display...
- Page 7 DH-320 _____________________________________________________________________________ While using Mask, non-invasive mode should be selected. Temperature is adjusted to 31 °C in non-invasive mod. Be sure that Mask icon is active while non-invasive mod is active. If the device will be used in tracheostomy invasive mod should be selected. Temperature is set to 38 °C in Invasive mode. Be sure that tracheostomy icon is active while in invasive mode.
- Page 8 DH-320 _____________________________________________________________________________ Can be set to a value between 30 and 40 degrees celcius using + and – buttons. Expirium heater icon Expirium heater can be set on the menu screen by clicking on Expirium heater icon. Expirium Heater Option Expirium heater heats the air patient exhales.
- Page 9 DH-320 _____________________________________________________________________________ Alarm Screen You can adjust high temperature and low temperature limits by pressing + and – buttons. *Can activate set passive flow and water run out alarms. *This option may not be active on your device. Flow Alarm Active Flow Alarm Passive Ran out of water alarm on Water alarm off...
- Page 10 In situations where relative humidity in the environment is lower than %15 or higher than %95. • In situations where Atmospheric pressure is lower than 700 mbar or higher than 1060 mbar. • Do not use Humidias DH-320 Humidifier in places where it is exposed to hot thigns such as sun light. Electromagnetic Conditions •...
- Page 11 DH-320 _____________________________________________________________________________ Note: Electromagnetic compatibility tables can be inspected in electromagnetic compatibility section in the manual. Side Effects Device has no known side effects. If you encounter any problem, consult to your doctor. Troubleshoot Chart Probable Problems Solutions Inability to put chamber into humidifier Humidifier clip and chamber below side is checked.
-
Page 12: Installation
HumidiAs Humidifier Chamber • 15-30 ohm heater wired patient circuit • HumidiAs DH-320 temperature probe Must be used with the device which manufacturer advises. • Heated tube that comes from Ventilator and goes to the patient should be connected to 22mm diameter inputs that is on the water chamber. - Page 13 Do not autoclave or sterilize HumidiAs DH-320 Humidifier • Humidias DH-320 Humidifier’s maintenance servis and control and any update that can be applied should be done with related personnel’s service and control and should be done according to Foras Medical service instructions. •...
- Page 14 Preservation Before preserving Humidias DH-320 Humidifier, empty the water in the humidifying chamber, clean it and dry it. Preserve it with its box in a place suitable to storage conditions where does not take direct sunlight. Preservation conditions of the device is -20 ˚C and 60 ˚C. Keep in a dry and dust-free space.
- Page 15 DH-320 _____________________________________________________________________________ changes Current IEC 61000-4-11 40% UT (60% dip in UT) 5 40% UT (60% dip in continuous operation during power cuts it is advised that UT) 5 cycles – 100 ms cycles the device is connected to a continuous power source. 70% UT (30% dip in UT) 25 70% UT (30% dip in UT) 25 cycles –...
- Page 16 DH-320 _____________________________________________________________________________ Foras Bilg. Elek. Medikal San. ve Tic. Ltd. Şti. Ostim Mahallesi 1466. Sokak No.28 Yenimahalle / ANKARA TÜRK MALI Tel: +90 312 395 77 66 Faks: +90 312 395 77 67 www.foras.com.tr / info@foras.com.tr Notified Body: Kiwa Belgelendirme Hizmetleri A.Ş.
