Summary of Contents for aerl LiFe 2

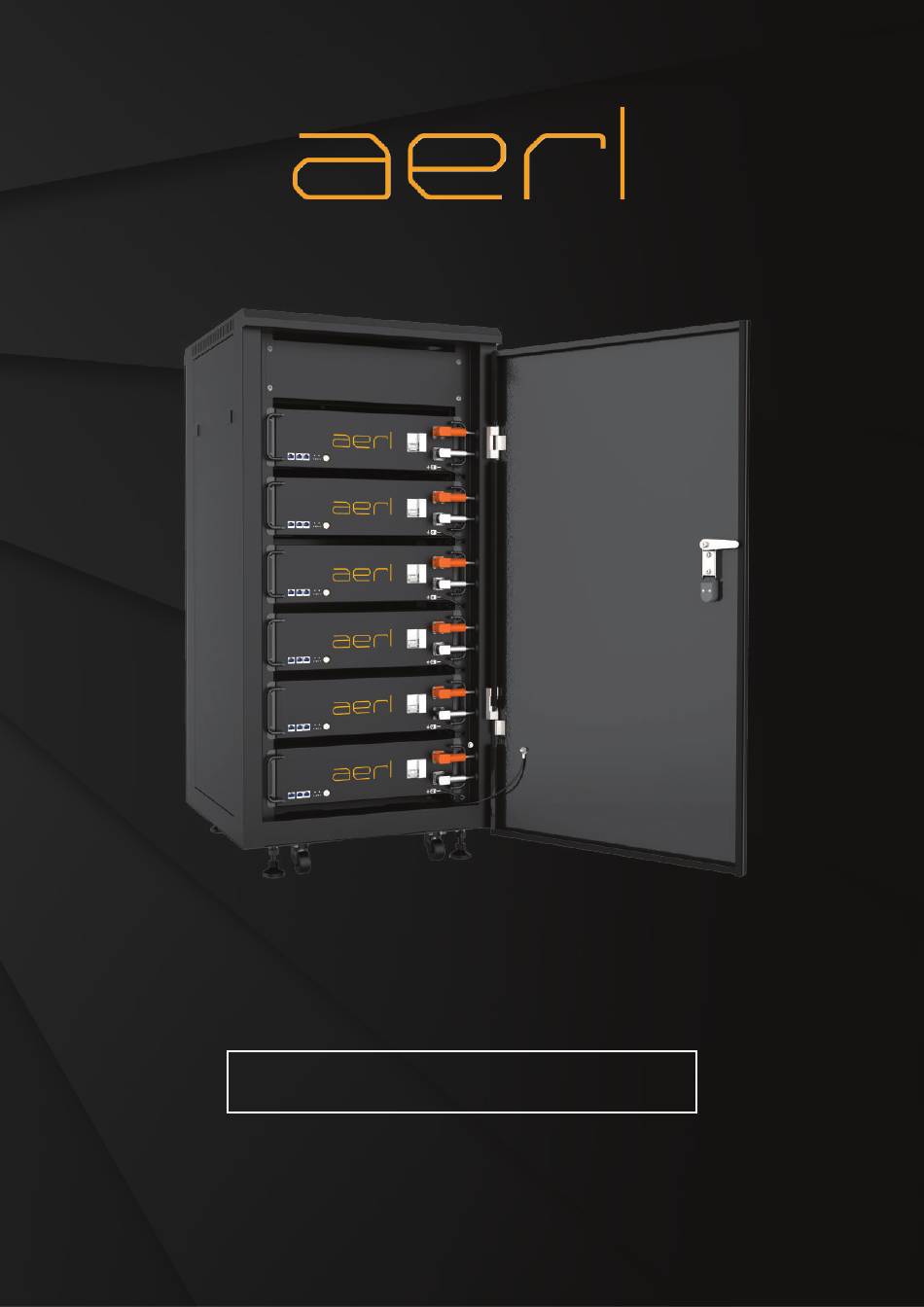

- Page 1 AERL LiFe QUICK START GUIDE www.aerl.com.au...
-
Page 2: Box Contents
Due to the weight of the battery module, it is recommended that installation be carried out by at least two people. Use appropriate tools as necessary for installation. Part Box Contents Termination Plug Comms Cable M6 × 16 Bolt AERL LiFe2 Quick Start Guide - REV 001... - Page 3 AERL LiFe2 Cabinets Specification LiFe2 Cabinet 6 LiFe2 Cabinet 10 Dimensions (W x D x H) 620 x 600×1270 mm 620 x 600×1890 mm Max. Qty of Modules 10 (50kWh) 6 (30kWh) Max. Continuous Current 625A 1250A IP Rating IP20...
-
Page 4: Minimum Clearance Requirements
Interface & Status LEDs There are LEDs on the front panel of AERL LiFe2 that indicate the battery state (Status, Error, and SOC). Letter Label Function Letter Label Function COMMS Inverter Comms SOC Indicator Battery Comms Out On/O Switch ON/OFF... - Page 5 Power Lug Torque: 15 N·m Inserting and Fastening the Modules Module Bolt Torque: 3 N·m Insert the Modules into the Cabinet AERL LiFe2 Quick Start Guide - REV 001...
- Page 6 Connect the PE to each battery module. Connecting Parrallel Cabinets IN Port OUT Port Master Battery OUT Port IN Port Insert the termination plug into the OUT Port of the last module. AERL LiFe2 Quick Start Guide - REV 001...
-
Page 7: Connecting To The Inverter
The comms cable should be Cat 5 or greater. DC Breaker DC + Cable DC - Cable Comms Cable (≥Cat 5) PE Cable 1 2 34 5 6 78 Master Comms Port Pin-Out PIN No. Definition CAN_H CAN_L RS485B RS485A AERL LiFe2 Quick Start Guide - REV 001... - Page 8 (Master to XESS One) Note: DC+ Cable A maximum of 64 AERL LiFe2 modules can be connected in parallel. 2. A combiner box with an appropriately rated DC Bus is needed to DC- Cable combine the DC power cabling from the parallel cabinets.
- Page 9 Thank you for choosing AERL. Your decision to trust our product means a lot to us. At AERL, our focus is on technical excellence. Our batteries are the result of rigorous engineering and precise craftsmanship, and we have invested heavily in ensuring that each battery delivers outstanding performance and reliability.
- Page 10 AERL Pty Ltd 2/75 Bluestone Circuit, Seventeen Mile Rocks, QLD +61 1800 950 865 support@aerl.com.au www.aerl.com.au...
