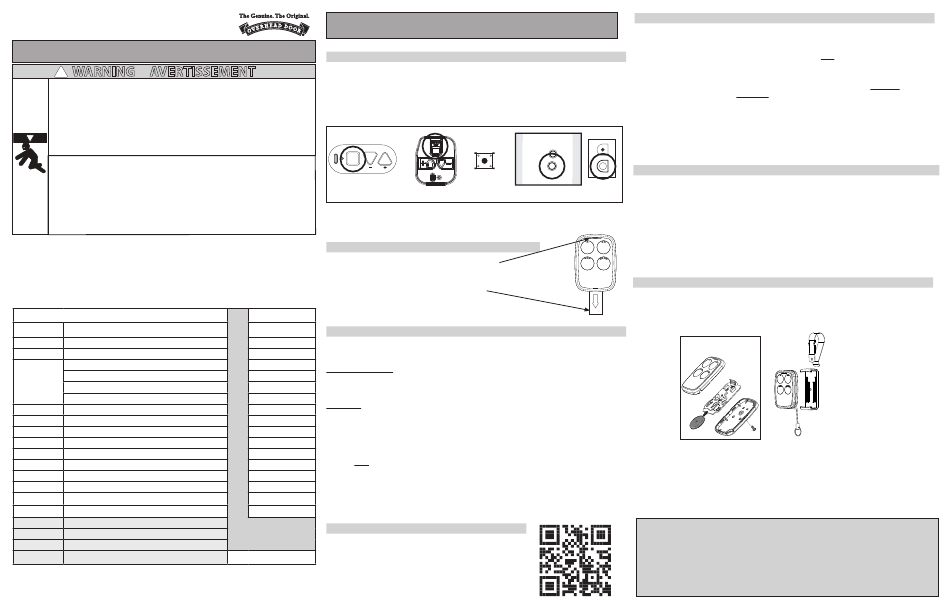

Overhead door 42014.01252 Instructions

UNIVERSAL REMOTE INSTRUCTIONS
42014.01252, 08/2022
NOT FOR USE WITH ANY GARAGE DOOR OPENER MANUFACTURED PRIOR TO 1993.
SAFETY BEAMS (PHOTOCELLS) MUST BE IN PLACE AND OPERATIONAL.
WARNING AVERTISSEMENT
!
MOVING DOOR CAN CAUSE SERIOUS INJURY OR DEATH.
• DO NOT install transmitter unless the door operator's safety device works as required by the door
operator's manual.
• Wall Console must be mounted in sight of door, at least 5 feet above floor and clear of moving door parts.
• Keep people clear of opening while door is moving.
• DO NOT allow children to play with the transmitter or door operator.
If safety reverse does not work properly:
• Close door then disconnect opener using the manual release handle.
• DO NOT use transmitter or door operator.
• Refer to Door and Door Opener Owner's Manuals before attempting any repairs.
UNE PORTE EN MOUVEMENT PEUT CAUSER DE GRAVES BLESSURES, VOIRE LA MORT.
• N'installez PAS le transmetteur à moins que l'appareil de sécurité du dispositif de fermeture de porte ne
fonctionne conformément au manuel du dispositif de fermeture de porte. La console murale doit être montée à
la vue de la porte, à au moins 5 pieds au-dessus du sol et il ne doit y avoir aucune pièce de porte en mouvement
à proximité.
• Éloignez les gens de l'ouverture lorsque la porte est en mouvement.
• NE permettez PAS aux enfants de jouer avec le transmetteur ou le dispositif de fermeture de porte.
• Si l'inversion de sécurité ne fonctionne pas correctement :
• Fermez la porte, puis déconnectez le dispositif d'ouverture à l'aide de la poignée de dégagement manuel.
• N'utilisez PAS le transmetteur ni le dispositif de fermeture de porte.
• Référez-vous aux manuels du propriétaire de la porte et de l'ouvre-porte avant de tenter toute réparation.
THINGS TO KNOW BEFORE STARTING:
•
During programming, the garage door opener may operate. Ensure that the garage door opening is clear
of personnel or any obstructions.
•
Do not to press the LEARN button for longer than the noted 2-3 seconds as it could cause your existing,
operational remotes and keypads to no longer work.
Below are the brands and specifications that this remote is compatible with and the available methods that
can be used to program them. Review Chart A for compatibility and method, then proceed to STEP 1.
Chart A
AVAILABLE PROGRAM METHOD
Brand Name Specification Notes
Genie® 315/390 MHz, Intellicode® I, 1995-current
Overhead Door® 315/390 MHz, CodeDodger® I, 1995-current
Purple Learn Button, Security +®, 2006-2014, 315 MHz
Chamberlain®
Orange/Red Learn Button, Security +®, 1996-2005, 390 MHz
LiftMaster®
CraftsMan®
Yellow Learn Button, Security +2.0®, 2011-current, 315, 390 MHz
Green Learn Button, Billion Code®, 1993-1995, 390 MHz
Genie® 315/390 MHz, Intellicode® II, 2010-2011
Overhead Door® 315/390 MHz, CodeDodger® II, 2010-2011
Sommer® 310 MHz, Rolling Code
Linear® 318 MHz, Mega Code®
Wayne Dalton® 372.5 MHz, Rolling Code, 1999-current
Ryobi® 372.5 MHz, Rolling Code
Guardian® 303 MHz, Fixed Learn Code
Xtreme® brand 303 MHz, Fixed Learn Code
*Marantec® 315 MHz, Fixed Learn Code
FAAC® 433.92 MHz, Rolling Code
*Chamberlain® 390 MHz, 9 Switch/3 Position Dip Switch
*Overhead Door® 360, 380, 390, 412 MHz, 9 Switch/3 Position Dip Switch, 1993-1995
*Stanley® 310 MHz, 10 Switch/2 Position Dip Switch
*Genie® 390 MHz, 9 & 12 Switch/2 Position Dip Switch, 1993-1995
*For instructions on any DIP SWITCH specification, Marantec® and optional TEACH & PAIR METHOD, visit:
www.overheaddoor.com/documents/universal-remote-alt-instr.pdf
Overhead Door® and CodeDodger® are registered trademarks of Overhead Door Corporation. All other listed names and
trademarks are the property of their respective owners.
NOTE: During programming, the garage door opener will operate. Ensure that the
garage door opening is clear of personnel or any obstructions.
STEP 1 - Find Specifications & Learn Button
1. Locate the brand and opener/receiver specifications for your device by consulting the label on the
opener/receiver, the instruction manual, the current remote controls for the opener, or the original
manufacturer of the opener/receiver.
2. Find the LEARN/PROG button on your device - shape, color or name of this button could vary by brand.
For garage door openers, be sure to check under the light covers. For commercial or gate openers,
this button may be on the circuit board of the opener. In some cases, this button could also be on an
external receiver that is mounted on or nearby the product. Consult the devices manual if needed.
EXAMPLES:
PRGM
SET
*For Marantec® openers, reference operator manual or visit www.overheaddoor.com/documents/
universal-remote-alt-instr.pdf for assistance.
STEP 2 - Activate Remote/Button Layout & LED
LED - The LED will light with each button press and will
also light in response to button presses during different
programming modes.
Activation Tab: Pull tab to activate the remote.
LEARN METHOD ID#
Number of
STEP 3 - PROGRAMMING REMOTE
Button Presses (ID#)
1
Review Chart A to find your specifications and available programming options. Each button can be
1 programmed individually to operate up to 4 different brands of garage door openers and gate receivers.
2 LEARN METHOD
3
1. Find and remember the required number of button presses (ID#) in the LEARN METHOD column
4
next to your brands/specification in Chart A.
5
IMPORTANT: For ID#4 Chamberlain®/LiftMaster®/Craftsman® Yellow Learn Button ONLY - move
6
immediately to instructions at right. For all other ID#s, proceed below.
6
2. On remote, press and hold down button #2. (Reference FIG. 1)
7
3. While still holding down button #2, press button #4 four times - then release
8
both buttons (blue LED begins flashing).
4. Press the remote button of your choice the required number of times from Chart A and then
9
simply WAIT until the blue LED stops blinking and goes out (@15 sec).
10
5. On the opener, press the LEARN/PROGRAM button for 2-3 seconds - then release.
11
6. Press and release the remote button you just programmed once every 2 seconds until the garage door
opener operates.
11
7. Test the button - programming is complete.
12
TIP: Allow the LED light on the universal transmitter to stop flashing before your next button press.
13
Programming Assistance:
-*TEACH & PAIR*-
Existing Remote Required
If the opener does not activate after the steps shown,
repeat steps or contact Customer Care by
phone at: 1-800-929-3667 for programming assistance. You may also
scan this QR code for additional information and links.
ID# 4 ONLY: Chamberlain®/LiftMaster®/Craftsman® Yellow Learn Button Inst.
1. On remote, press and hold down button #2. (Reference FIG. 1)
2. While still holding down button #2, press button #4 four times - then release both buttons (blue LED begins
flashing)
3. Press the remote button of your choice four times and then simply WAIT until the blue LED stops blinking and
goes out (@15 sec).
4. Press and hold down the remote button you just chose - after the white LED blinks (@5 sec) - release button.
5. On the opener, press the LEARN/PROGRAM button for 2-3 seconds - then release.
6. On the remote, press the button you chose ONE time. Opener will click.
7. On the opener, press the LEARN/PROGRAM button again for 2-3 seconds - then release.
8. On the remote, press the button you chose ONE time again. Opener will click again.
9. Test the button - programming is complete.
RADIO
TIP: Allow the LED light on the universal transmitter to stop flashing before your next button press.
SIGNAL
LEARN
LEARN
To Clear the Universal Remote:
CODE
Gate
CODE
Receivers
If at any time you need to clear the universal remote of its programming and start again, follow the below steps.
If you have only one opener, you may also simply program over what has previously been done.
1. On the remote, press and hold down button #3. (Reference FIG. 1)
2. While still holding down button #3, press button #4 four times - then release both buttons
(LED will flash and go out).
If the above does not work, clear the remote in the same manner that you would clear an original OEM remote
1 2
from the head. Please consult your opener manual for instruction. In most situations, clearing at the opener
head will clear all radio frequency devices (like remotes or keypads) that are currently programmed.
3 4
FIG. 1
Changing The Battery
1. Remove small phillips head backing screw.
2. Pry case open with small coin or screwdriver.
3. Replace battery with CR2032 coin cell.
For patent information, visit: www.overheaddoor.com/patents
1-year warranty, visit www.overheaddoor.com for details.
©2022 Overhead Door Corporation
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment. This device complies with part
15 of the FCC Rules and Industry Canada's license-exempt RSSs. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1)
l'appareil ne doit pas produire de brouillage; 2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
4a. ONLY IF you had to manually change your Yellow Learn Button opener to a 390MHz due to
interference issues - simply press and hold the button in the step above for 10 seconds - after the
white LEDs blink for the second time - all LEDs will go out completely - then release the button. If
you did not have to manually change the opener to 390MHz, ignore this line 4a.
PARTS
Visor Clip
Visor Clip
Holder
Key Chain
