Summary of Contents for Aladdin MOSAIC Series

  • Page 2 Aladdin PIXEL CONTROLLER USER MANUAL with Lumenradio, DMX & ArtNet...
  • Page 3 THANK YOU FOR YOUR PURCHASE User Manual Version: 14. February 2024, 5:58 PM Aladdin Lights info@aladdin-lights.com...

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS Article Code Compatibility MOSAIC Series Cooling Passive cooling Power Input 4-pin Chogori Socket Power Consumption Dimensions Weight User Interface Graphic OLED (128x64) Temperature Range DMX512 support In (5-pin) and out (5-pin) / Lumenradio / ArtNet Processor ARM Cortex-M3...

  • Page 5: Warranty Exclusions

    After this warranty has been expired, you can still get repairs for your product which will be charged extra. Aladdin Lights reserves the right to refuse warranty service on products un- der disputable conditions. WARRANTY EXCLUSIONS In case of any of the below listed causes, the warranty does not apply, even if it is within the free warranty period.

  • Page 6: Start-Up Guide

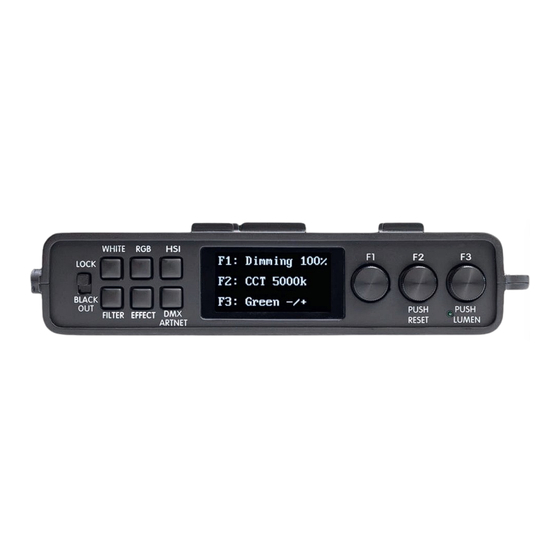

    START-UP GUIDE 1 Lock / Black-Out Switch 2 Menu Page Buttons 3 OLED Display 4 Rotary Function Buttons - F1, F2, F3 5 LED Panel Connector Socket 6 RP-SMA Socket (Lumenradio Antenna) 7 Ethernet Ports (RJ45) 8 DMX-512A Input Socket (5-Pin XLR-M) 9 DMX-512A Output Socket (5-Pin XLR-F) 10 Micro SD Card Slot 11 V-Lock Plate...
  • Page 7 STATES The OLED display shows you different pages for primary light control. OLED STATE F1: DIMMING 100% WHITE page has been selected. Control with the rotary F2: CCT 5500 K button. F3: GREEN +/- F1: RED 100% page has been selected.Control with the rotary button. F2: GREEN F3: BLUE F1: HUE...
  • Page 8 IMPORTANT CAUTIONS AND WARNINGS • You must set the sheet type (see OPERATION) before connecting to a panel. • Do not use near flammables and heaters. • Do not expose the unit to direct sunlight for a long period (applies also for storing in a car).
