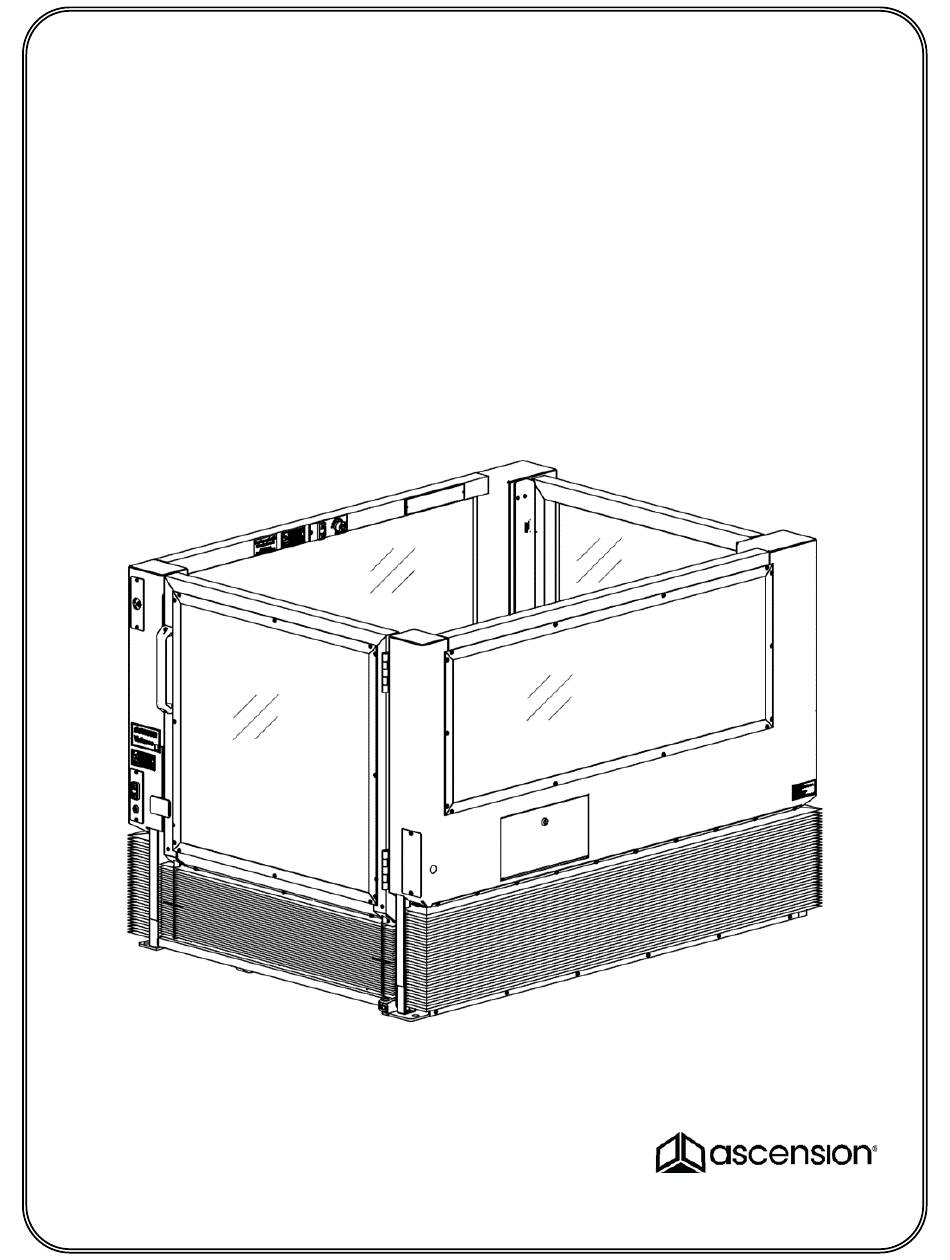

- Page 1 ASCENSION VIRTUOSO PORTABLE WHEELCHAIR LIFT 5460P MODEL SERIES OPERATING MANUAL Patented – see www.ascension-lift.com/patents...
- Page 3 ASCENSION VIRTUOSO PORTABLE WHEELCHAIR LIFT 5460P MODEL SERIES OPERATING MANUAL...
- Page 4 Copyright © 2024 Ascension, a Division of AGM, Tucson, Arizona http://ascension-lift.com 1-800-459-0400 This document, or parts thereof, may not be reproduced in any form, by any method, for any purpose, without written permission from Ascension.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................1 About This Manual ....................... 1 Additional Information ....................2 Getting Help ......................... 2 Contacting Ascension ....................3 SECTION 1 ........................4 Product Information ..................... 4 Terminology ......................... 5 Important Safety Information ..................6 Description of Operation ....................7 SECTION 2 ........................ - Page 6 This page intentionally left blank.
-
Page 7: Introduction
In response to this requirement, the Ascension VIRTUOSO portable wheelchair lift provides the means for individuals who cannot negotiate stairs to gain access to a moderate vertical floor elevation change, such as a stage, riser, or platform. -
Page 8: Additional Information
The serial number can be found on the data plate located inside the platform on the upper left rail. Also, it is recommended that you contact Ascension while in the immediate vicinity of your lift, as this will reduce the time required to properly diagnose the problem. -
Page 9: Contacting Ascension
Operating Manual Introduction VIRTUOSO 5460P Contacting Ascension Ascension's business hours are 8 a.m. to 5 p.m. Mountain Standard Time, Monday through Friday. Telephone: 800-459-0400 Mailing Address: Ascension Fax: 520-881-4983 Customer Service Email: sales@ascension-lift.com PO Box 40020 Website: ascension-lift.com Tucson, AZ 85717-0020... -
Page 10: Section 1
Operating Manual SECTION 1 VIRTUOSO 5460P SECTION 1 Product Information Operational • VERTICAL TRAVEL DISTANCE: 12" to 60" [305 to 1525 mm], infinitely adjustable • OCCUPANCY: 1 person • MAXIMUM PASSENGER LOAD: 750 pounds [340 kg] • AVERAGE SPEED: 7 feet per minute [35 mm/s] •... -
Page 11: Terminology
Operating Manual SECTION 1 VIRTUOSO 5460P Terminology To get the maximum benefit from this manual, you should be familiar with the following terms. Refer to Figure 1 as necessary. Access Panels The four hinged panels that provide access to the machinery cabinets. Dock Plate The hinged plate that bridges the gap between the platform floor and the upper landing surface when the platform is at the upper landing. -
Page 12: Important Safety Information
Operating Manual SECTION 1 VIRTUOSO 5460P Important Safety Information When using the lift, the following basic safety precautions and practices must be observed: 1. Read and understand all of the information contained in this manual. 2. Do not expose any part of the lift to a direct liquid stream or spray, such as a water hose. -
Page 13: Description Of Operation
Operating Manual SECTION 1 VIRTUOSO 5460P Description of System Two hydraulic cylinders raise and lower the platform. When the "up" circuit is energized, an electric motor operates a hydraulic pump which provides pressurized hydraulic fluid to the cylinders, causing the cylinder rods to extend and raise the platform. - Page 14 Operating Manual SECTION 1 VIRTUOSO 5460P The casters are stored in the lift base. They can quickly and easily be installed underneath the lift so that the lift can be moved to another location. The hydraulic system is used to raise and lower the platform and base frame when installing or removing the casters.
-
Page 15: Section 2
Operating Manual SECTION 2 VIRTUOSO 5460P SECTION 2 Setup Instructions WARNING! Always close and lock all access panels and remove all keys before leaving the lift unattended. WARNING! Never leave the lift unattended while performing the following procedures. This section covers setting up the lift for use after it has been wheeled into place. See “Installing the Casters for Portability”... - Page 16 Operating Manual SECTION 2 VIRTUOSO 5460P Hold the operating switch located inside the platform "Up" to move the platform to the upper landing (i.e. stage height). Open the upper platform gate completely. Verify that the dock plate rests securely on the upper landing, and provides a smooth, level, and safe transition to and from the platform.
-
Page 17: Removing The Casters
Operating Manual SECTION 2 VIRTUOSO 5460P Removing the Casters WARNING! Always close and lock all access panels and remove all keys before leaving the lift unattended. WARNING! Never leave the lift unattended while performing the following procedures. 1. Plug the power cord into a grounded electrical outlet and turn on the lift. The ON/OFF switch is located on the electrical panel in the left-hand machinery cabinet. - Page 18 Operating Manual SECTION 2 VIRTUOSO 5460P from the brackets. Reinstall the lock pins in the brackets after removing the casters. See Figure 4. Figure 4 6. Place the casters in the caster storage brackets located in the base, under the hydraulic cylinder, and then return the platform floor to its original position.
-
Page 19: Section 3
Operating Manual SECTION 3 VIRTUOSO 5460P SECTION 3 Standard Operation This section covers operation of the lift after setup has been completed. • The lift must be turned on before the lift will operate. The ON/OFF switch is located inside the left-hand machinery cabinet. After turning the lift on, wait 6-8 seconds for the lift controls to initialize before operating the lift. -
Page 20: Manual Operation
(shut-off valve for main cylinders) handle 90 degrees and repeat step 4. Return valve to initial position to resume normal operation. WARNING! Only use the handle provided with the pump. If this handle does not provide enough leverage to move the platform, stop and contact Ascension. 110056 Rev P... - Page 21 Operating Manual SECTION 3 VIRTUOSO 5460P Alternatively, the front lowering valve can be used to manually lower the platform. Front Lowering Valve Instructions: 1. Locate the front lowering valve located behind a small access panel at the front right corner of the lift. WARNING! Stay clear of the platform when it is moving to avoid any pinching and/or crushing hazards as manual operation bypasses all electrical safety switches.
-
Page 22: Section 4
Operating Manual Notes VIRTUOSO 5460P SECTION 4 Installing the Casters for Portability WARNING! Always close and lock all access panels and remove all keys before leaving the lift unattended. WARNING! Never leave the lift unattended while performing the following procedures. Prop the lower platform gate open approximately 45º... - Page 23 Operating Manual Notes VIRTUOSO 5460P Return the floor section to its original position. Repeat Steps 5 through 7 for the left-hand platform floor section. CAUTION! Stay clear of the front edge of the lift platform floor while performing the following step. Hold an operating switch "Down"...
-
Page 24: Manual Transportation
1025 pounds [465 kg]. Always use at least two (2) people to move the lift on an incline. Larger casters for easier rolling on especially rough or uneven surfaces are available from Ascension. Forklift Transportation On surfaces other than those mentioned above, the lift should be moved by a forklift. -
Page 25: Outdoor Use
Operating Manual Notes VIRTUOSO 5460P Outdoor Use The lift is standardly weatherized for use in outdoor conditions, including rain. However, the following limitations apply: • The lift should not be used in temperatures lower than 45°F (7ºC), unless the outdoor package is included on the lift (which includes cold-weather hydraulic fluid). •... -
Page 26: Section 5
If these conditions are satisfied but the lift does not operate, refer to the comprehensive trouble shooting section in the Maintenance & Repair Manual. If the problem cannot be resolved with the help of the Maintenance & Repair Manual, call Ascension. 110056 Rev P... - Page 28 A DIVISION OF AGM Printed in the U.S.A. OPERATING MANUAL 110056 Rev P...
