F0217-BSH-MB

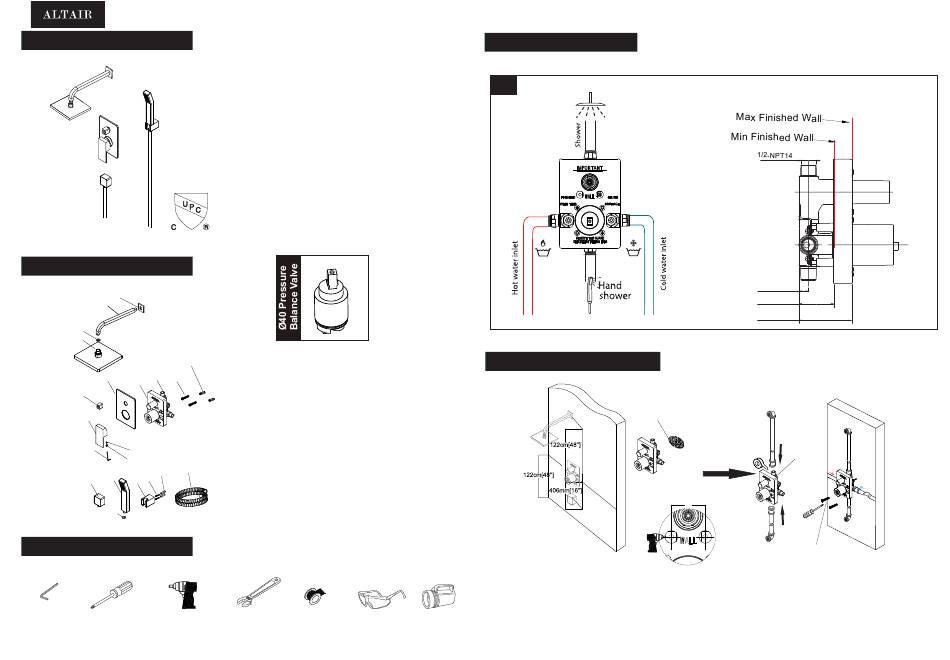

DIAGRAM AND PARTS LIST
1
2
3
4
21
8
5
7
6
13
9
10
12
11
17
18
20 19
15
14
16
RECOMMENDED TOOLS
Allen key
Electric drill
Philips Screwdriver
-1-
Single Handle Pressure Balance
Bath Faucets
Solid Brass Construction
Pressure Balance Valve
Easy Installation
1.Trim
12.Allen key
2.Shower arm
13.Diverter
3.Gasket
14.Elbow
4.Shower head
15.Hand shower
5.Valve body
16.Gasket
6.Cover plate
17.Flexible hose
7.Tapping screw
18.Setscrew
8.Panel
19.Tapping screw
9.Handle
20.Base
10.Screw
21.Setscrew
11.Red/ blue button
Adjustable wrench
Pipe tape
Eye protection Flashlight
RECOMMENDED
1
ASSEMBLY INSTRUCTIONS
[1]
21.setscrew
MAIN BODY FIXED SIZE
1. Installation reference size ,main body fixed size( width 40mm ) . Knock 2pcs
setscrews(21) into holes .
2. Connect the pipes into the valve body(5) ; Put valve body(5) in the hole and
fix it by the screw(7) . then connect the water supply hoses .
RECOMMENDED MOUNTING DIMENSIONS
12.5mm[1/2"]
55mm[2 3/16"]
78mm[3 1/16"]
[2]
5
40mm
7.screw
-2-
Advertisement
Related Manuals for Altair F0217-BSH-MB
Summary of Contents for Altair F0217-BSH-MB
- Page 1 F0217-BSH-MB RECOMMENDED Single Handle Pressure Balance RECOMMENDED MOUNTING DIMENSIONS Bath Faucets Solid Brass Construction Pressure Balance Valve Easy Installation DIAGRAM AND PARTS LIST 12.5mm[1/2"] 55mm[2 3/16"] 78mm[3 1/16"] ASSEMBLY INSTRUCTIONS 1.Trim 12.Allen key 2.Shower arm 13.Diverter 3.Gasket 14.Elbow 4.Shower head 15.Hand shower...
- Page 2 The valve body is with water flow regulation function. If there is great deviation in cold and hot water flow, it could be adjusted at the point indicated by the arrow . (Turn down in clockwise rotation) 3.Plug the water outlets after the valve body is installed. 7.Feed the valve body with panel(8) ,handle(9) and diverter(13), then use the allen key(12) and screw(10) to secure handle(9) and diverter(13), put on the red/ blue button(11).
