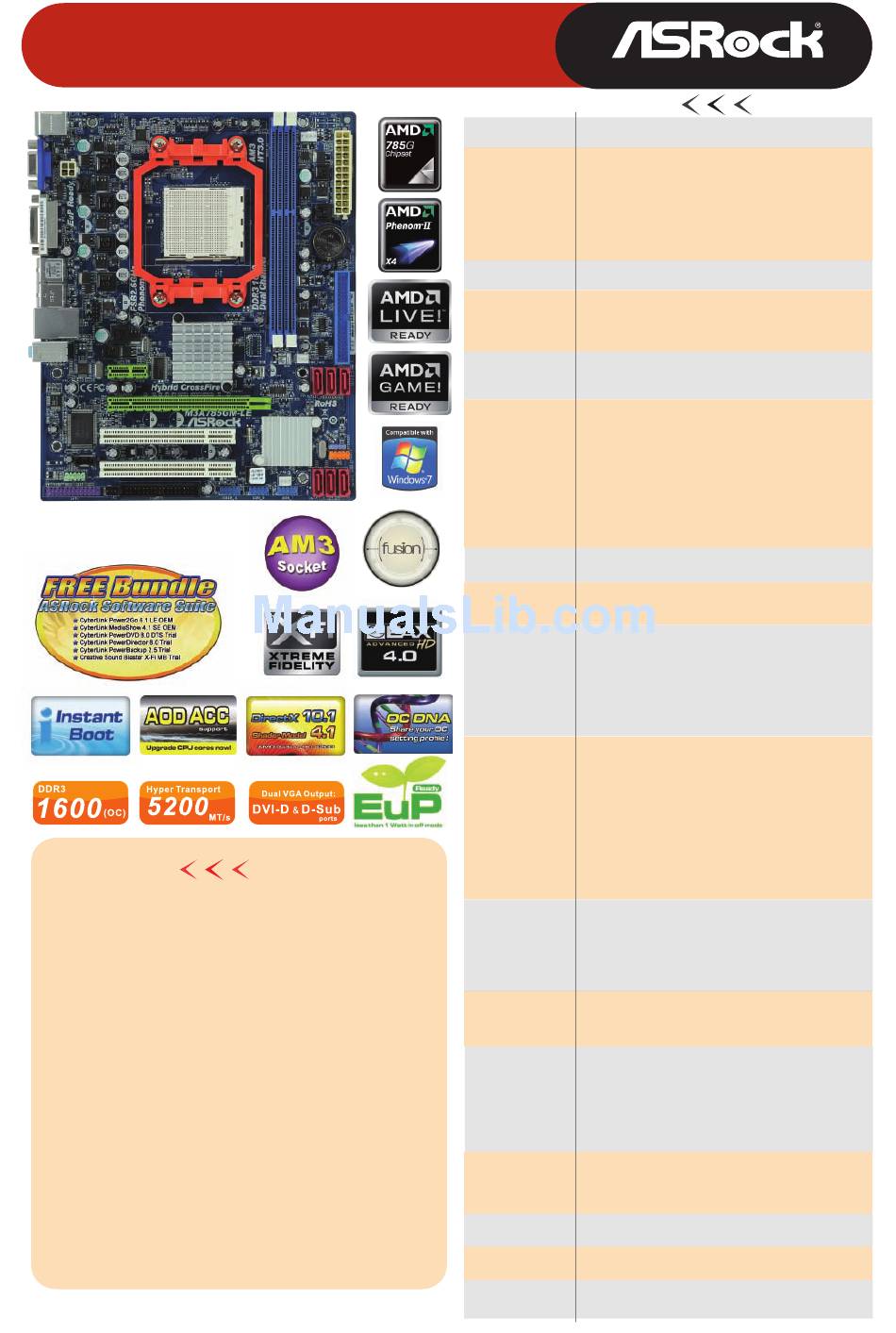

ASROCK M3A785GM-LE Brochure

M3A785GM-LE
AMD 785G + SB710 Chipsets
Product Brief
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Dual Channel DDR3 1600 (OC)
- Integrated AMD Radeon HD 4200 graphics,
DX10.1 class iGPU, Shader Model 4.1, Max.
shared memory 512MB
- Supports ATI™ Hybrid CrossFireX™
- Dual VGA Output options: D-Sub, DVI-D

- EuP Ready

- Supports ASRock Instant Boot, Instant Flash,
OC DNA, OC Tuner, IES
- Free Bundle : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w.a s ro ck. c o m
Detail Specification
Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
CPU
- Support for Socket AM3 processors: AMD Phenom
X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2
processors
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 785G
- Southbridge: AMD SB710
- Dual Channel DDR3 memory technology
Memory
- 2 x DDR3 DIMM slots
- Supports DDR3 1600(OC)/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 8GB
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI
- Integrated AMD Radeon HD 4200 graphics
Graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers
- Supports Dual-link DVI with max. resolution up to 2560x1600
@ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @
60Hz
- Supports HDCP function with DVI-D port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
with DVI-D port
Audio - 5.1 CH Windows
(ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug"
functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX Power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD
OverDrive
TM
Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
/ XP Media Center / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- ATA 133 cable
- 2 x SATA data cables (optional)
Hybrid CrossFireX
TM TM
Vista™ Premium Level HD Audio
®
Utility, AMD Live! Explorer, AMD Fusion, ASRock
7 / 7 64-bit / Vista / Vista
® TM TM
II X4 /
TM
64-bit / XP
