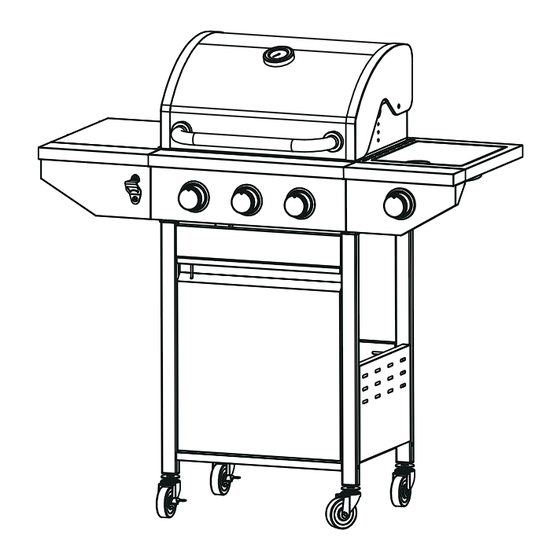

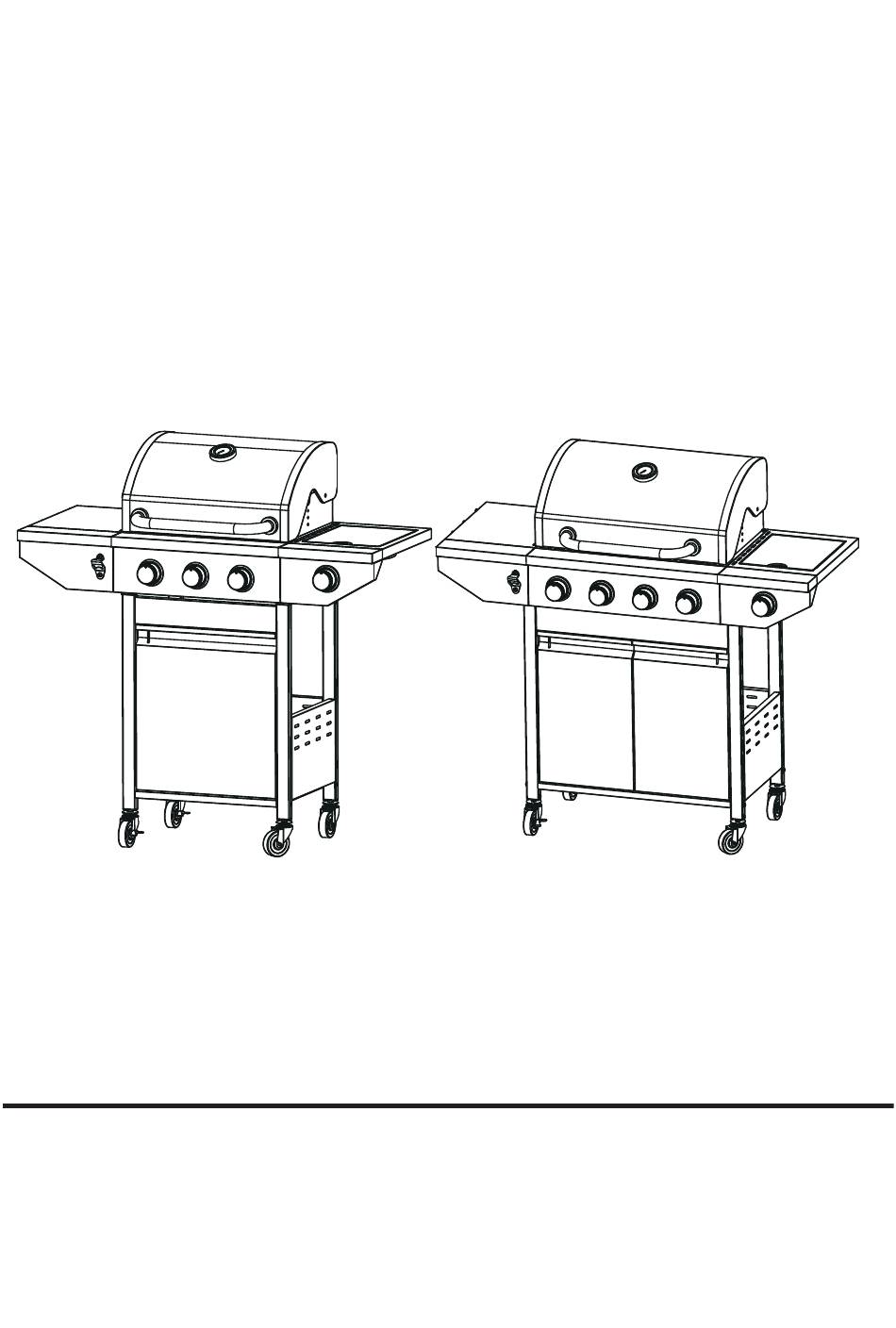

- Page 1 IMPORTANT INSTRUCTIONS AND OPERATING MANUAL Français p. Español p. LP GAS GRILL Model: Endark Gas Grill-1 Model: Endark Gas Grill-2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ........................Package Contents ........................Hardware Contents ........................Preparation ..........................Assembly Instructions ........................ Operation Instructions ......................... 30 Care and Maintenance ......................... 35 Troubleshooting ........................... 39 Assembler/Installer: This manual contains important information that is necessary for the proper assembly and safe use of this appliance. -
Page 3: Safety Information
SAFETY INFORMATION Thank you for purchasing this product! DANGER • Do not use in an explosive atmosphere. Keep grill area clear and free from combustible CALIFORNIA PROPOSITION 65 mbustion of such fuels contain chemicals, including Benzene, known to the State of California to cause cancer, birth defects or other reproductive harm. - Page 4 SAFETY INFORMATION WARNING • Do not place the grill under overhead combustible construction or awnings. Minimum clearance from sides and 36inch(915.00mm) back of unit to combustible construction, 36inch(915.00mm) 36 inches (915.0mm) from sides and back. NOTE: The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural...
-
Page 5: Package Contents
PACKAGE CONTENTS (Endark Gas Grill-1) Front view of the product... - Page 6 PACKAGE CONTENTS (Endark Gas Grill-1) PART PART ×1 ×1 ×1 ×1 ×1 ×1 ×3 ×1 ×1 ×1 ×1 ×1 ×1 ×2 ×1 ×1 ×1 ×1 ×1 ×1 ×1 ×2 ×2 ×2 ×1 ×1 ×1 ×2 ×3 ×2...
- Page 7 PACKAGE CONTENTS (Endark Gas Grill-1) PART ×58 M6×12 M4x15 ×4 ×1 M6×60 ×4 M4x8 ×2...
-
Page 8: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list on previous page and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 50 minutes with 2 people. - Page 9 Assembly steps: 3.A M6×12 （ ×8 ） 4.D M6×60 （ ×4 ）...
- Page 10 Assembly steps: 5.A M6×12 （ ×4 ） 6.A M6×12 （ ×4 ）...
- Page 11 Assembly steps: （ ×1 ）...
- Page 12 Assembly steps: Please remove bottom shipping protective metal bracket before assembly 10.A M6×12 （ ×4 ）...
- Page 13 Assembly steps: 11.A M6×12 （ ×8 ） 12.A M6×12 （ ×10 ）...
- Page 14 Assembly steps: 13.A M6×12 （ ×6 ） Left Right 14.A M6×12 （ ×14 ） Right Left...
- Page 15 Assembly steps: 15.E M4×8 （ ×2 ） Step 1. Take out side burner gas valve from bottom of control panel Step 2. Step 4. Step 3. Correct Incorrect Incorrect Step 5. Connect the ignition wire...
- Page 16 Assembly steps: Tank Screw...
- Page 17 PACKAGE CONTENTS (Endark Gas Grill-2) Front view of the product...
- Page 18 PACKAGE CONTENTS (Endark Gas Grill-2) PART PART ×1 ×2 ×1 ×1 ×2 ×1 ×4 ×1 ×1 ×1 ×1 ×1 ×1 ×2 ×1 ×1 ×1 ×1 ×1 ×1 ×1 ×2 ×2 ×2 ×1 ×1 ×1 ×2 ×3 ×2...
- Page 19 PACKAGE CONTENTS (Endark Gas Grill-2) PART M6×12 ×46 M4x15 ×4 ×2 M6×50 ×12 M4x8 ×2...
- Page 20 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list on previous page and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 50 minutes with 2 people.
- Page 21 Assembly steps: 3.A M6×12 （ ×8 ） 4.D M6×50 （ ×4 ）...
- Page 22 Assembly steps: 5.A M6×12 （ ×4 ） 6.A M6×12 （ ×4 ）...
- Page 23 Assembly steps: （ ×2 ）...
- Page 24 Assembly steps: Please remove bottom shipping protective metal bracket before assembly 10.A M6×12 （ ×4 ） D M6×50 （ ×8 ）...
- Page 25 Assembly steps: 11.A M6×12 （ ×10 ） 12.A M6×12 （ ×6 ） Left Right...
- Page 26 Assembly steps: 13.A M6×12 （ ×10 ） Left Right 14.E M4×8 （ ×2 ） Step 1. Take out side burner gas valve from bottom of control panel Step 2. Step 4. Correct Step 3. Incorrect Incorrect...
- Page 27 Assembly steps: Connect the ignition wire...
- Page 28 Assembly steps: Tank Screw...
-
Page 29: Assembly Instructions
ASSEMBLY INSTRUCTIONS Open the left door assembly and the right door assembly , insert the hose/regulator assembly into the cart assembly through the clearance above the cart right side panel assembly . Place LP gas cylinder (sold separately) into the nesting hole located in the cart bottom shelf . -
Page 30: Operation Instructions
OPERATION INSTRUCTIONS CHECKING FOR LEAKS gs on the LP gas tank valve, gas hose and regulator for leaks with a water and soap solution. • Always perform leak test prior to lighting the grill. • Do not smoke while testing for a leak. •... - Page 31 OPERATION INSTRUCTIONS CONNECTING GAS CYLINDER The propane gas supply cylinder to be used must be constructed and marked in accordance with the Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; and provided with a liste Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter: 8.03 inches) equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances.
- Page 32 OPERATION INSTRUCTIONS NOTE: Other cylinders may be acceptable for use with this appliance If they are compatible with the app- -liance nesting hole and retention means. Refer to Page11 of the Assembly Instructions for corr- e ct cylinder to cylinder holder connection. WARNING ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.
- Page 33 OPERATION INSTRUCTIONS Lighting The Grill Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed and the control knob in the highest position.
- Page 34 OPERATION INSTRUCTIONS LIGHTING THE GRILL WITH A MATCH 1. Open the lid. 2. Insert a match in the end of the match holder that is installed on the right door assembly. 3. Light the match. 4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner between the heat tents as shown.
-
Page 35: Care And Maintenance
CARE AND MAINTENANCE Cooking Grates The best time to ‘burn-off’ the cooking grates is after every use (approx. 15 minutes). The grill is already hot from cooking thus requiring less fuel to obtain necessary temperature for ‘burn-off’. To ‘burn off’ or heat clean your grill, turn the burners to highest position and run for 15 minutes with the lid closed. - Page 36 CARE AND MAINTENANCE Burner Assembly Warming Rack Removing The Burner Assembly Cooking 1. Make sure all control knobs are in the OFF Grates position, gas supply valve is closed, and the Heat Tents gas hose is disconnected from the gas supply. 2.
- Page 37 CARE AND MAINTENANCE Cleaning the Burner Assembly – Make sure the grill is cool 1. Turn gas off at the control knobs and LP gas cylinder. 2. Disconnect LP gas cylinder from regulator and hose. 3. Remove warming rack, cooking grates and heat tents. 4.
-
Page 38: Troubleshooting
CARE AND MAINTENANCE The electronic ignition requires 1 “AA” alkaline battery, which is included. WARNING DO NOT mix old and new batteries. DO NOT mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries. TROUBLESHOOTING If you have any questions regarding the product, please email us Via wangjue122@qq.com ,or endark210308@126.com PROBLEM POSSIBLE CAUSE... - Page 39 Item Name: 3-Burner LP Gas Grill With Side Burner Model #: Endark Gas Grill-1 28,500 BTU/Hr Main Burner rated BTU:...
Need help?
Do you have a question about the Gas Grill-1 and is the answer not in the manual?
Questions and answers

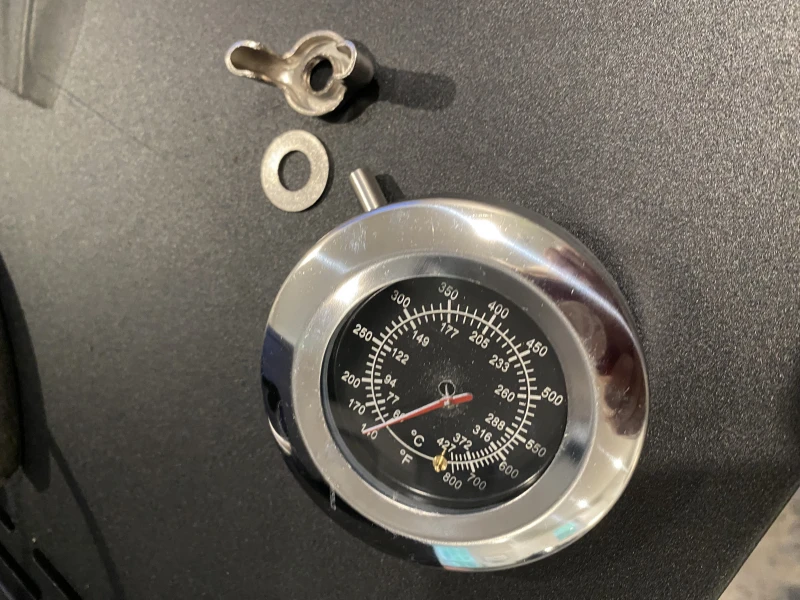

Need a replacement part - thermometer
