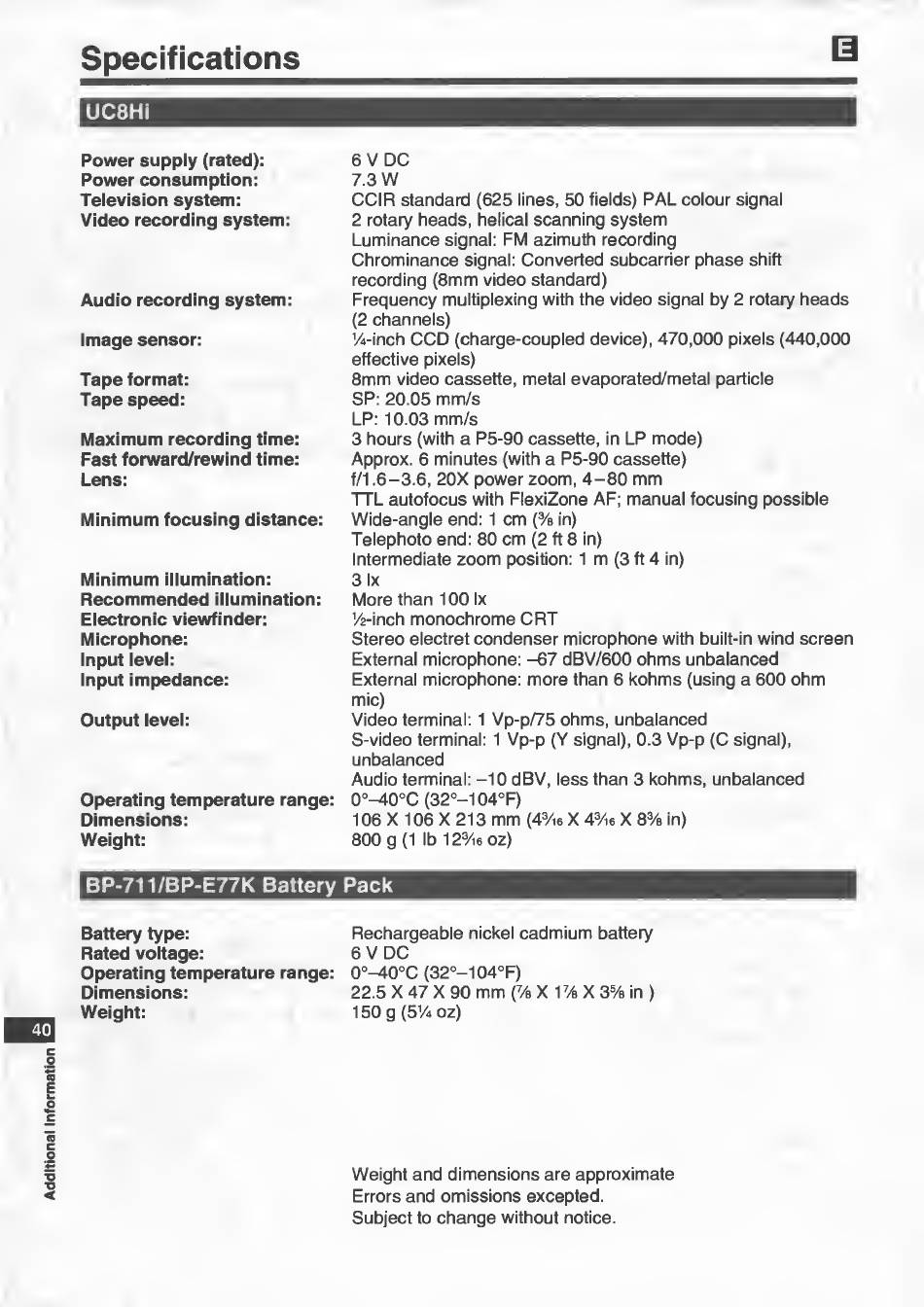

Specifications
UC8Hi
Power supply (rated): 6 V DC
Power consumption: 7.3 W
Television system: CCIR standard (625 lines, 50 fields) PAL colour signal
Video recording system: 2 rotary heads, helical scanning system
Luminance signal: FM azimuth recording
Chrominance signal: Converted subcarrier phase shift
recording (8mm video standard)
Audio recording system: Frequency multiplexing with the video signal by 2 rotary heads
(2 channels)
Image sensor: Vi-inch CCD (charge-coupled device), 470,000 pixels (440,000
effective pixels)
Tape format: 8mm video cassette, metal evaporated/metal particle
Tape speed: SP: 20.05 mm/s
LP: 10.03 mm/s
Maximum recording time:
3 hours (with a P5-90 cassette, in LP mode)
Fast forward/rewind time:
Approx. 6 minutes (with a P5-90 cassette)
Lens:
f/1.6-3.6, 20X power zoom, 4-80 mm
TTL autofocus with FlexiZone AF; manual focusing possible
Minimum focusing distance:
Wide-angle end: 1 cm (% in)
Telephoto end: 80 cm (2 ft 8 in)
Intermediate zoom position: 1 m (3 ft 4 in)
Minimum illumination: 3 lx
Recommended illumination: More than 100 lx
Electronic viewfinder: Vfc-inch monochrome CRT
Microphone: Stereo electret condenser microphone with built-in wind screen
Input level:
External microphone: -67 dBV/600 ohms unbalanced
Input impedance: External microphone: more than 6 kohms (using a 600 ohm
mic)
Output level:
Video terminal: 1 Vp-p/75 ohms, unbalanced
S-video terminal: 1 Vp-p (Y signal), 0.3 Vp-p (C signal),
unbalanced
Audio terminal: -10 dBV, less than 3 kohms, unbalanced
Operating temperature range:
0°^0°C (32°-104°F)
Dimensions: 106 X 106 X 213 mm (43/ie X 43/ie X 83/e in)
Weight:
800 g (1 lb 123/ie oz)
BP-711/BP-E77K Battery Pack
Battery type: Rechargeable nickel cadmium battery
Rated voltage: 6 V DC
Operating temperature range: 0°-40°C (32°-104°F)
Dimensions: 22.5 X 47 X 90 mm
(Va X V/a
X 3% in )
Weight: 150g(5V4Oz)
Weight and dimensions are approximate
Errors and omissions excepted.
Subject to change without notice.
