Summary of Contents for DAS Energy i2

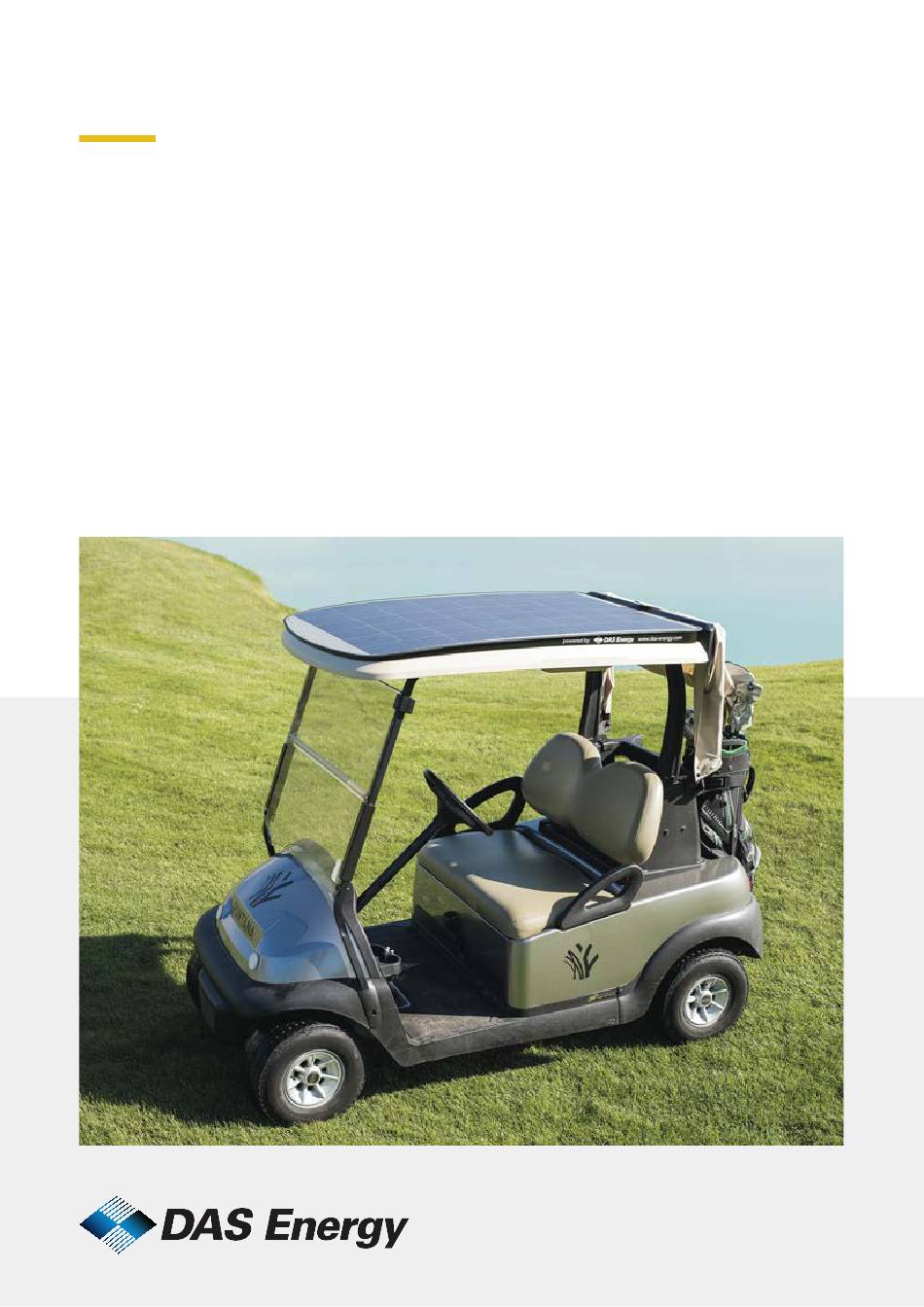

- Page 1 INSTALLATION MANUAL DAS Energy golf cart solar roof for TYPE CLUB CAR PRECEDENT i2 | i3...
-
Page 2: General Information
1.1. NOTES ON MODULE HANDLING The following installation instructions have been provided to avoid errors during installation. Correct handling of DAS Energy modules is essential for the longevity of the product. The following table therefore contains the most important instructions for handling the module. -
Page 3: Scope Of Delivery
2. SCOPE OF DELIVERY Fig. 1 DAS Energy solar panel Fig. 2 Cables with plug Connection cable 2.5m with circular connector and MC4 PV plug connector MC4 PV connector Circular connector Fig. 3 GC10 Charge controller Battery cable with ring tongue... - Page 4 Fig. 4 Bluetooth adapter Fig. 5 Mounting kit 5 pcs. M5 plastic washers 5 pcs. locking nut M5 5 pcs. washers M5 8 pcs. cable ties 2 screws M5x55 3 pcs. screws M5x35 4 pcs. adhesive base 2 pcs. golf balls with hole Fig.
-
Page 5: Tools Required
MOUNTING HOLES ON THE GOLF CART ROOF In this step, the holes required for the module installation must be drilled on the golf cart roof. Please note that an irreversible modification of the golf cart is required to install the DAS Energy module. Installation manual... - Page 6 Remove the seat bench from the golf cart Switch the main switch in the battery compartment to the CLOSE position! Clean the roof with alcohol (picture with positions) Place and centre the roof Installation manual...
- Page 7 Drill the roof through the holes in the module using a 4 mm drill bit (picture of the holes) Remove the solar panel from the roof of the golfcart Drill 5 marked holes with 6mm centres Apply 3 adhesive pads 5.g (picture with positions) Installation manual...
- Page 8 Put the plastic washers 5.a on 3 screws 5.f and push them through the module and screw them tightly with the spacer bolt Open the protective grille with side cutters Open the engine compartment lid Drill two holes from the engine compartment to the outside above the tyre (1x16mm, 1x6mm)
- Page 9 Feed the extension cable through the B-pillar (use wire) Plug the PV connector 2.b of the module and the extension cable together Fix cables to adhesive pads 5.g using cable ties 5.d Installation manual...
- Page 10 Place modules on the roof and fix in place with centre adhesive strips Place the plastic wash- ers 5.a on 2 screws 5.e and insert them through the module and the golf balls 5.h. Remove the foam carrier film and bond the module Module using washers 5.c and locknuts 5.b...
- Page 11 Feed the cable through the large hole into the engine compartment and secure with a cable tie 5.d Insert the cable into the battery compartment Install the charge control- ler and wireless adapter in the front area of the battery compartment (position image) Installation manual...
- Page 12 Stick the adhesive pad 5.g between the charge controller and the wire- less adapter Connect the charge controller and wireless adapter to each other Fix to the adhesive pad 5.g with cable ties 5.d Hauptschalter Screw the charge controller cables with ring tongues 3.a to the positive terminal and to the nega- tive terminal of the batter-...
- Page 13 Plug the round plug connector of the charge controller and the round plug connector of the connection cable together Fix all cables with cable ties 5.d Close engine cover Switch the main switch in the battery compartment to DRIVE! Installation manual...
- Page 14 Attach bench Attach stickers Download the following app to your mobile phone: ChargePro2.0 and connect the app to the charge con- troller via Bluetooth. All important information about the performance of your Golfcart PV module can be viewed there. The pre-settings in the app should not be changed. Installation manual...
- Page 15 FOR MORE INFORMATION www.das-energy.com download Data sheets Branch Austria...
