- Page 1 Sentinel™ TS-EFI-300 EFI TEST SET USER’S MANUAL Tel: +27 87 379 5220 Email: info@cybertronix.co.za 3 Glenart Road, Kloof 3610, South Africa www.cybertronix.co.za...
-
Page 2: Table Of Contents
Sentinel™ TS-EFI-300 User’s Manual CONTENTS 1. OVERVIEW ............................3 1.1 INTRODUCTION .......................... 3 1.2 FEATURES ........................... 4 2. OPERATION ............................5 2.1 CHARGING ..........................5 2.2 CURRENT INJECTION ........................5 2.3 EFI TEST FAILURE CONSIDERATIONS ..................6 3. MAINTENANCE ..........................7 3.1 BATTERY ............................. -
Page 3: Overview

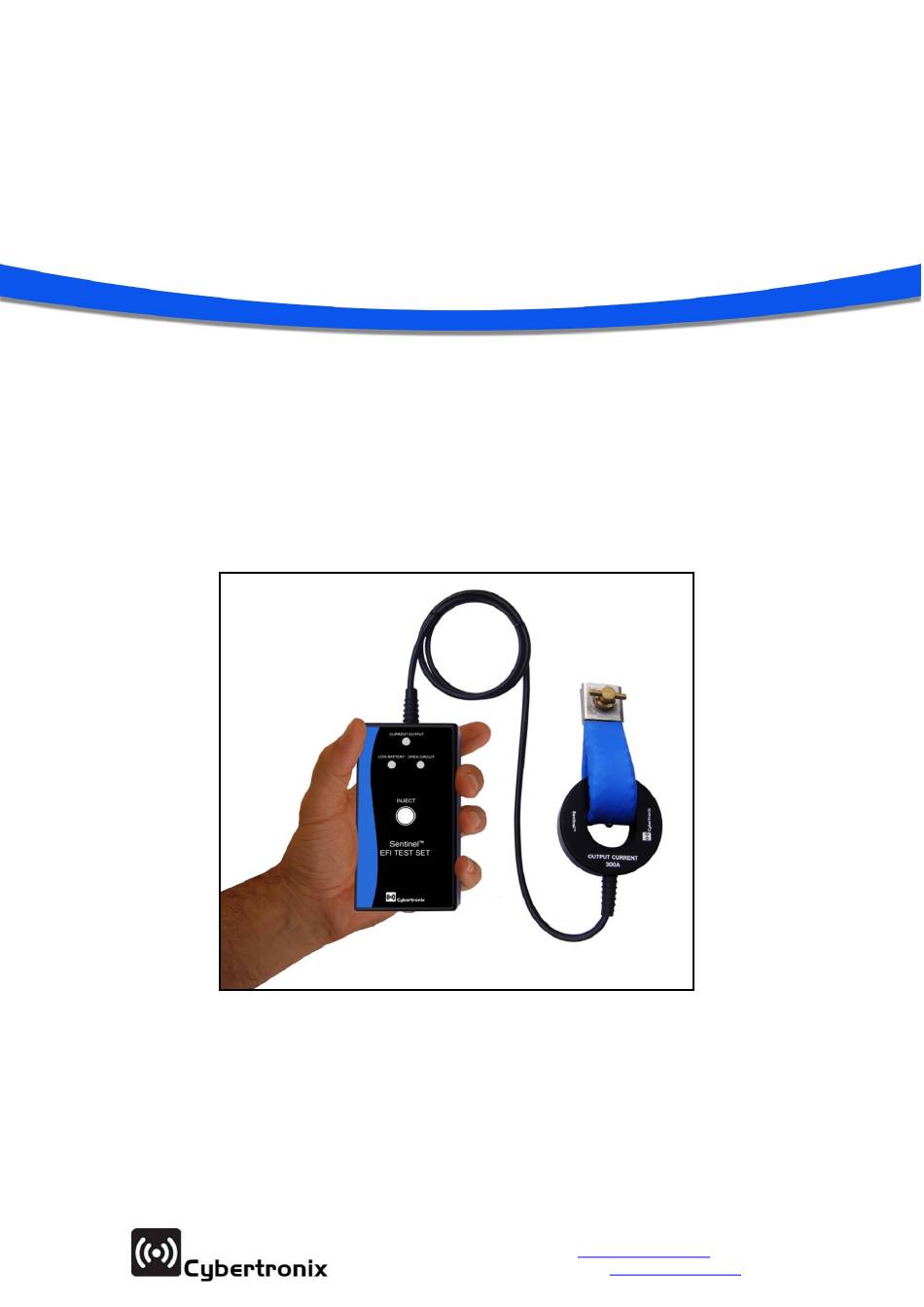

Sentinel™ TS-EFI-300 User’s Manual 1. OVERVIEW 1.1 INTRODUCTION The Sentinel™ TS-EFI-300 is a battery powered primary injection test set used for testing the trip function of earth fault indicators. It is extremely light-weight, self-contained and portable. The device is contained within a robust black ABS enclosure and ships with test leads and an external battery charger. -
Page 4: Features
Sentinel™ TS-EFI-300 User’s Manual 1.2 FEATURES • 300A Nominal Injection Current Using Single Turn • 200ms Injection Timer • Tests All Known EFI Models Worldwide Under All Typical Settings • Inherently Overload Proof • Safe Output Voltage (<1V) Under All Conditions •... -
Page 5: Operation
Sentinel™ TS-EFI-300 User’s Manual 2. OPERATION 2.1 CHARGING Plug the external battery charger cable jack into the charging socket located on the side of the Test Set. Allow up to several hours for the internal battery of the Tester to be charged. The charger will usually have a red LED to indicate charging and a green LED to indicate when unit is fully charged. -
Page 6: Efi Test Failure Considerations
Sentinel™ TS-EFI-300 User’s Manual 2.3 EFI TEST FAILURE CONSIDERATIONS There is obviously effort and cost involved in replacing a faulty EFI. So if an EFI is found to “fail” under test, it is worth double checking the integrity of the test. The first thing to do is to check whether the EFI can be tripped via its own test/reset pushbutton or magnetic reed switch. -
Page 7: Maintenance
Sentinel™ TS-EFI-300 User’s Manual 3. MAINTENANCE 3.1 BATTERY The Tester is powered by a maintenance-free, rechargeable sealed lead-acid battery. At the end of its lifetime the battery is easily replaced by opening the Tester cover, loosening the battery mounting bracket and pulling off the supply cables from the battery spade terminals. A replacement battery of the exactly the same dimensions and electrical specifications should be used (See section titled “SPECIFICATIONS”). -
Page 8: Specifications
Sentinel™ TS-EFI-300 User’s Manual 4. SPECIFICATIONS Output Current: 300A RMS minimum (typical safety factor of +20%) Output Frequency: 50Hz ± 10% Output Duration: 10 cycles (200ms at 50Hz) ± 10% Output Voltage: <1V Peak Waveform Type: Modified Sine wave Maximum EFI CT core diameter: 30mm Current Ampler Lead: Inject Button:... -
Page 9: Safety
In the event of the above limitation not applying to the user, then in no case shall the Cybertronix cc liability exceed the original purchase price of the product.
