VLS3.60 and VLS4.60

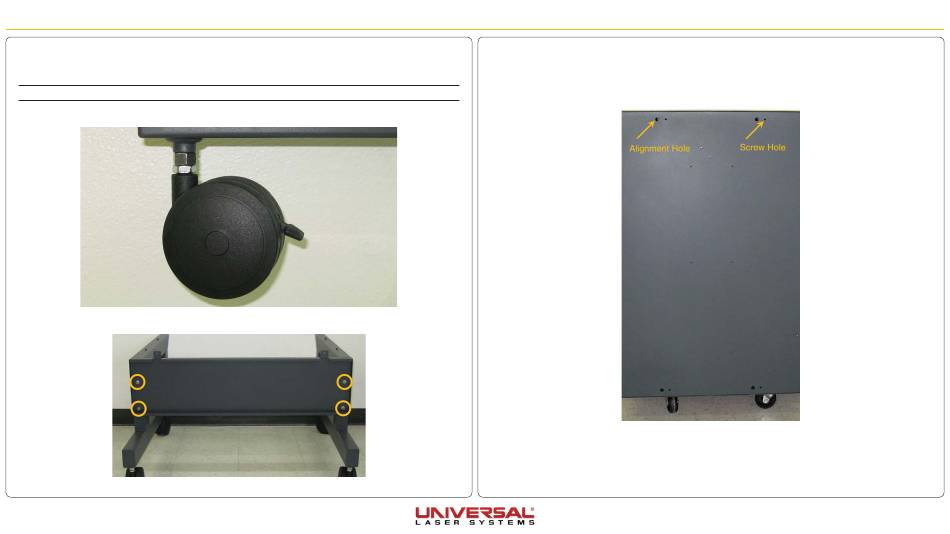

NOTE: Leave all the screws slightly loose except for the casters.
1.
Screw the 4 casters onto each leg, 2 per leg, as far as possible.
2.
Attach the back panel to the legs using the 4 socket head screws, 4 locking washers, and 4 flat
washers.
VLS Service Manual
Table of Contents
3.
With the assistance of another person, place the system on top of the cart, aligning the pins on the cart
with the alignment holes on the bottom of the system, and loosely install the 4 socket head screws, 4
locking washers, and 4 flat washers attaching the system to the cart. These screws will go through the
cart legs into the bottom of the system.
4.
Using the two remaining screws, flat washers, and locking washers, attach the back panel to the rear of
the system.
Enclosure and Cart
Enclosure and Cart
Page | 42
