SAAS StreetLine Series Installation Instructions

Advertisement

Quick Links

v20230328
Important notes before installing:
- WARNING: SAAS tachometers are designed to work with factory ignition systems ONLY!
Warranty will be void if connected to aftermarket ignition systems such as MSD, Mallory, Accel,
etc.. Aftermarket ignition systems will require additional parts to operate so please check with
your ignition manufacturer for available parts/adaptors and recommended wiring locations.
- SAAS Streetline series tachometers are designed for 12 volt systems ONLY!
- All installation work should be done by a qualified professional to avoid damage to this product.
- SAAS RECOMMENDS all products be tested prior to installation. This will save time and speed up
the troubleshooting process if you encounter any issues.
- BEFORE installing, please check our website (shopsaas.com) for the latest fitting instructions.
If the top left corner (v) number is different to website, please use instructions from website.
Wire colour
Black
Red
Green
Pink
Yellow
Park lights 12V+
Ignition 12V+
RPM signal input
Battery 12V+
Ground 12V-
Connector pinout
S E R I E S
TACHOMETER (89mm)
Installation Instructions
Wire Function
Ground 12V-
Battery 12V+
RPM signal input
Ignition 12V+
Park lights 12V+

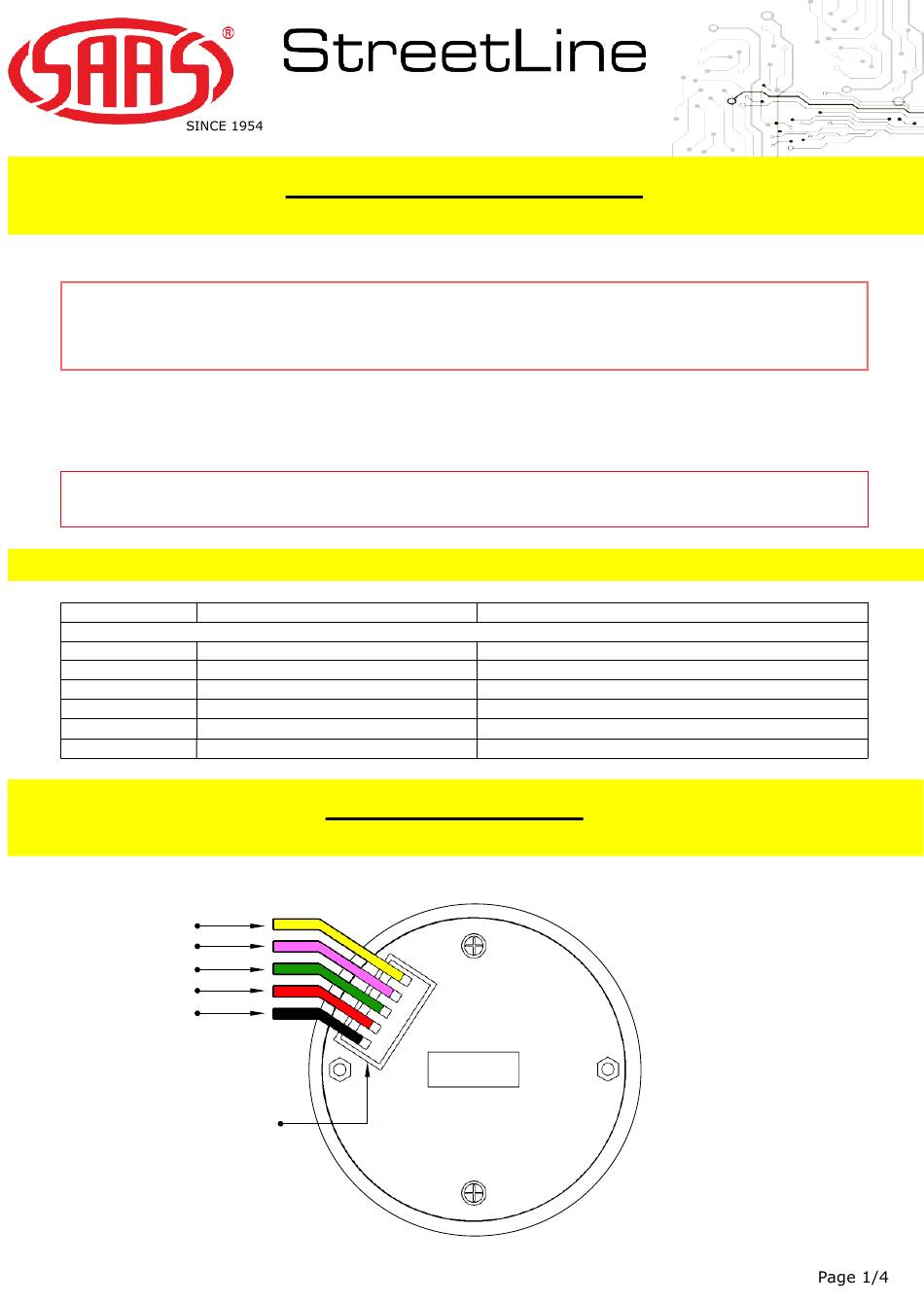

Wiring Diagram
Typical Layout
Wiring Guide:
Wire Connection Location
Vehicle body
Battery / fuse box
Negative side of ignition coil or ECU tach wire
Ignition harness / fuse box
Park light circuit (do NOT connect to a dimmer)
Batch #
Part No: SG21261
3 1/2 inch-89mm
Rear view

Advertisement

loading
Need help?

Need help?

Do you have a question about the StreetLine Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SAAS StreetLine Series

  • Page 1 - All installation work should be done by a qualified professional to avoid damage to this product. - SAAS RECOMMENDS all products be tested prior to installation. This will save time and speed up the troubleshooting process if you encounter any issues.
  • Page 2 Tachometer Setup: How to select a cylinder preset: - Turn ignition on > press and hold program button for 3 seconds > needle will move to current cylinder setting > release button and press again to move needle to correct setting ( 1 > 8 cylinders) > gauge will exit setup after 3 seconds of no activity.
  • Page 3 Mounting hole size for gauge 80mm Troubleshooting: Please note: If you are having problems with the installation of this product, please do not contact your retailer or SAAS until you have read ALL the troubleshooting notes below. Problem Possible Cause Solution...
  • Page 4 Provision of this warranty shall not apply to any SAAS Automotive product that has been used for a purpose for which it is not designed, or which has been altered in any way that would be detrimental to the performance or life of the product, or misapplication, misuse, negligence or accident.
