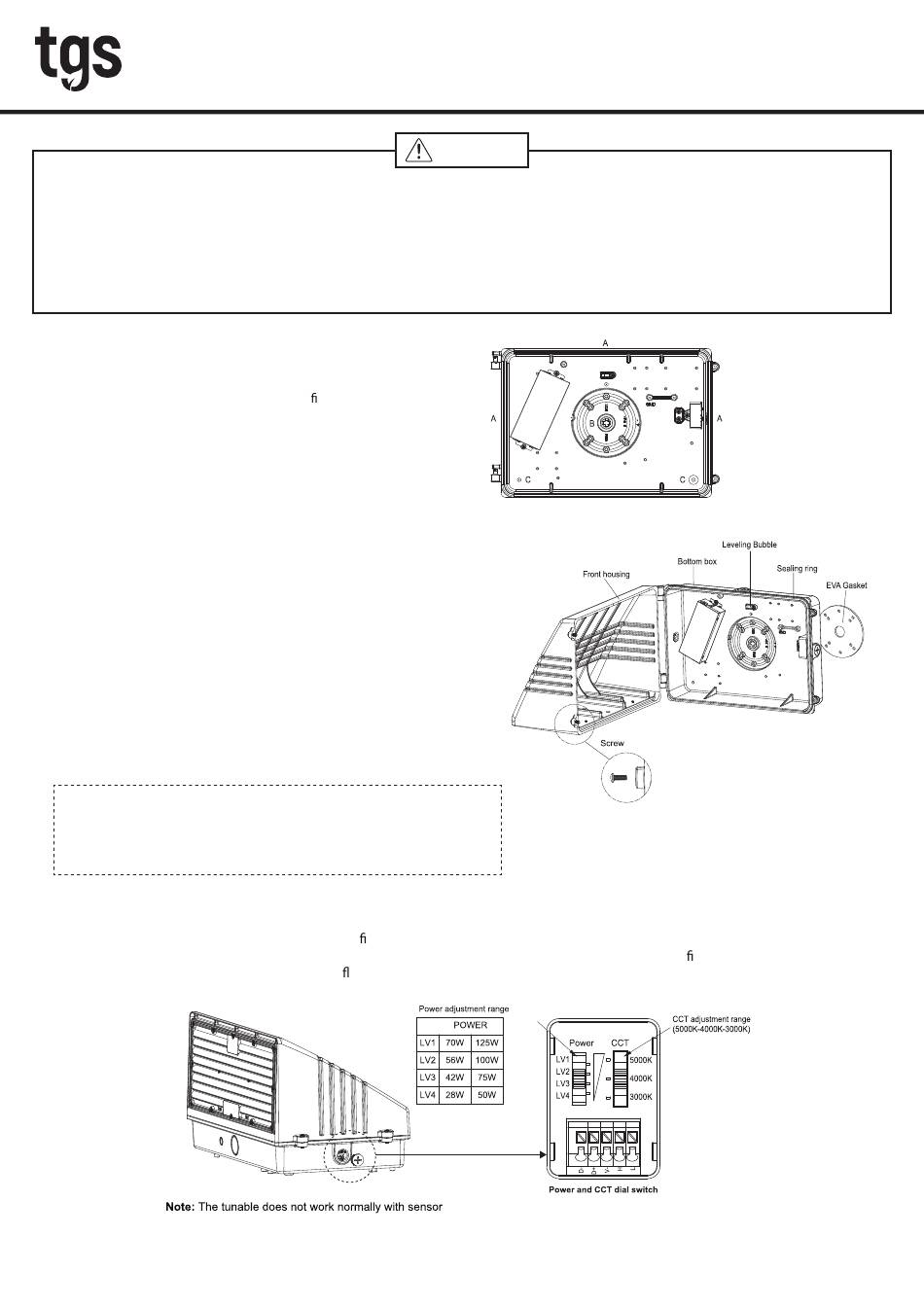

TGS WPF Installation Instructions

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -30°c to 40°c and to be horizontally mounted with the LEDs facing down.
— Wall mount only.
JUNCTION BOX MOUNTING
1.
1.Loosen screws and remove the front lens set carefully from the back plate.
2. Drill approptriate knockouts (B) for wirin, the xture supports standard
3-1/4" and 4" junction box.
3.Attach the back plate on the wall, use the supplied gaskets for a weather
tight seal.
4.Finish wiring (Black for Line, White for Neutral and Yellow Green for Ground).
5.Replace the lens set on the hinges, make connections and close the lens set
then tighten the screws.
CONDUIT MOUNTING
2.
1.Loosen screws and remove the front lens set carefully from the back plate.
2.Remove 1/2" plug from where you intend to feed conduit .
3.Drilling out the holes (C) to secure it on the wall with choosing proper screws.
4.Finish wiring (Black for Line, White for Neutral and Yellow Green for Ground).
5.Replace the lens set on the hinges, make connections and close the lens set
then tighten the screws.
Note: To ensure waterproof seal, apply weatherproof silicone sealant around
the edge of the wall mounting box and /or junction box. This is especially
important with an uneven wall surface.
Silicone all plugs and unused conduit entries.
3. POWER AND CCT SELECTABLE SWITCH
1. Remove the1/2" screw plug on the bottom of the xture.
2. Select Power (White) and CCT (Black) by sliding the respective switch to the desired value according to the gure.
3. Replace the 1/2" screw plug and tighten with a at head screwdriver.
WARNING
www.trulygreensolutions.com
WPF
Installation Instructions
A - 1/2" NPS tapped holes
(surface conduit or photo control)
B - 3/4" dia. Screw hole
C - 5/16" dia. Screw hole
