KL – KH multiple
KH2, KH2R, KH4, KH4R, KH6, KH6R
KL2, KL2R, KL4, KL4R, KL6, KL6R

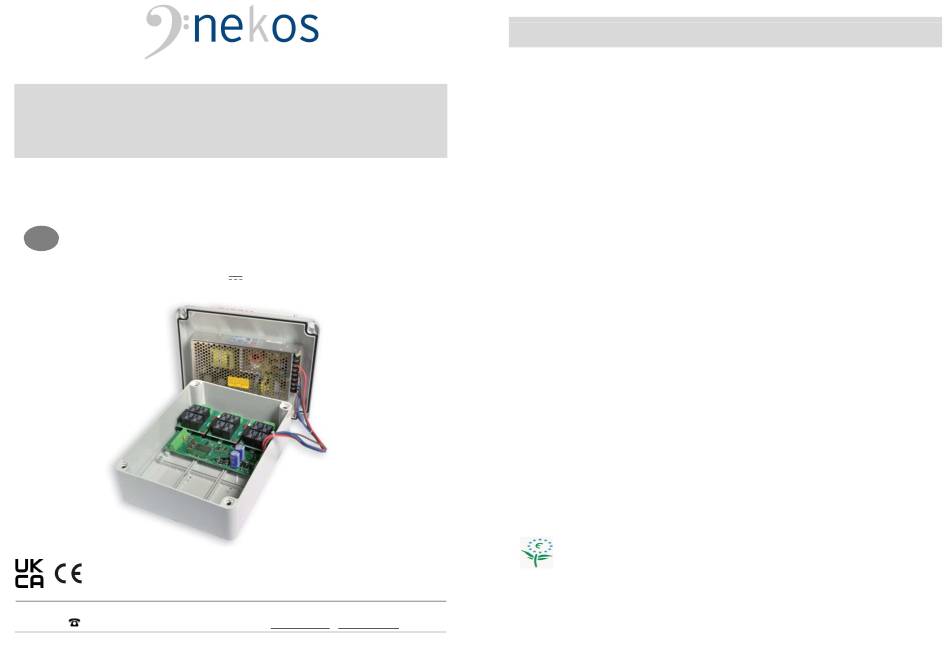

INSTRUCTION MANUAL
KH - MULTI-EXIT VENTILATON UNIT
with electrical feeding 110-240V~ 50/60Hz
EN
KL - MULTI-EXIT VENTILATON UNIT
with electrical feeding 24V
NEKOS S.r.l. - Via Capitoni, 7/5 - 36064 Colceresa – VI – ITALY
+39 0424 411011 – +39 0424 411013 - www.nekos.it - info@nekos.it
4420078 - Rev 20220628
USER INSTRUCTIONS
CAUTION. Carefully observe all the following installation
instructions to ensure personal safety.
The device is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lacking experience and knowledge. Do not allow children to
play with the fixed controls and keep any remote-control units
out of their reach.
Have installation checks performed periodically by qualified
personnel from a service centre authorised by the manufacturer.
Do not use if repair or adjustment is required.
CAUTION. Disconnect the power supply during cleaning or
maintenance operations. Do not use solvents or jets of water to
wash the appliance; the appliance should not be submerged in
water.
In the event of fault or malfunction, switch off the device at the
main switch. All repairs and adjustments must only be performed
by qualified personnel from a service centre authorised by the
manufacturer.
Always request exclusive use of original spare parts. Failure to
respect this condition could compromise safety and invalidate
the benefits contained in the warranty for the appliance. In the
event of any problems or queries, consult your agent or contact
the manufacturer directly.
Carefully preserve these instructions after installation.
The product must be disposed of in compliance with
local environmental regulations and not as household
waste.
Page 2
Advertisement
Table of Contents
Summary of Contents for nekos KL
- Page 1 The product must be disposed of in compliance with local environmental regulations and not as household waste. NEKOS S.r.l. - Via Capitoni, 7/5 - 36064 Colceresa – VI – ITALY +39 0424 411011 – +39 0424 411013 - www.nekos.it - info@nekos.it 4420078 - Rev 20220628...
-
Page 2: Table Of Contents
1.2. Notes for installer ....................4 improper use. CONSTRUCTION AND REGULATORY REFERENCES ..........5 KH../R and KL../R have been designed and constructed exclusively to execute TECHNICAL DATA ..................... 5 maneuvers for closing and/or opening windows, roll-up blinds, curtains and sunshades, ID PLATE AND MARKING DATA ................ -
Page 3: Construction And Regulatory References
“technical data” label attached to the station. wire. When assembling the KL../R and KH../R stations, in order to guarantee perfect operation All the devices connected to the control units must be manufactured of the system and facilitate installation, follow the instructions and warnings below. -
Page 4: Technical Operating Information
“mother board”. We recommend the use of n.o. (normally open) type r - rain state interlock switch buttons, see parameter P*07 for associated functions. The KL..R and cron - timed thermostat / timer KH..R models allow the use of the PIK radio remote control with 433.92 MHz proprietary protocol, as well as manual control. - Page 5 -↑ +↓ -↑ +↓ Exit 2 Timer function F[0]. Set the action when active as follows: Exit 1 reset time (0 - 60) min F[0] P102 0=none If F[0] the function is not on. P205 1=open -↑ +↓ ...
- Page 6 -↑ +↓ -↑ +↓ Exit 5 Rain sensor function (1 - 2) F[2]. Set the action when the input is P401 Exit 4 Work time (10 - 240) s F[60] active, as follows: 0=none P504 -↑ +↓ 1=open Exit 4 Reset time (0 - 60)min F[0] ...
-
Page 7: Settable Functions
(display) 100mA FULL – radio remote control memory full Please contact Nekos technical office to use rain sensors other than NSR1 Err - the radio remote control is not recognized in either delete or In case of rain with the window closed, the window can be reopened by excluding write intervention of the rain sensor for the time set in parameter P005. -
Page 8: Saving A Pik Radio Remote Control
Activation of the timer command affects all the actuator outputs of the associated - The parameter “dEL” of the menu is used to delete one or more PIK radio remote modules: exit 1-exit 2 of the first module, exit 3-exit 4 of the second module and exit 5- controls saved previously. -
Page 9: Saving A Radio Remote Control Without Access To The Board
Advanced procedure: associate desired channels or free a channel (“chc” menu). 7. OVERALL DIMENSIONS - Select the “CHC” item in the menu of the station. The container box is made of impact-resistant ABS engineering plastic, RAL7035 grey colored, having a cover with gasket and IP65 degree of protection. - Press the “OK”... -
Page 10: Connection Diagram Of The Station
Expansion module schemes 8. CONNECTION DIAGRAM OF THE STATION NOTA: FOR THE CONNECTION OF MORE UNITS AMONG THEM OR IN CASE OF A SINGLE RAIN SENSOR PLEASE REFER TO MANUFACTURER Mother board schema Page 19 Page 20... -
Page 11: Environmental Protection
The undersigned, We recommend that the device itself, and any accessories, packaging, etc. be sent to a Company name: NEKOS S.r.l centre for ecological recycling as established from laws in force on recycling. The device Postal address: Via Capitoni, 7/5... - Page 12 Notes NEKOS S.r.l. I - 36064 - COLCERESA (VI) - Via Capitoni, 7/5 Phone (+39) 0424 411011 Fax (+39) 0424 411013 info@nekos.it http://www.nekos.it Page 23 Page 24...
