Summary of Contents for CURIOSIS Celloger Stack

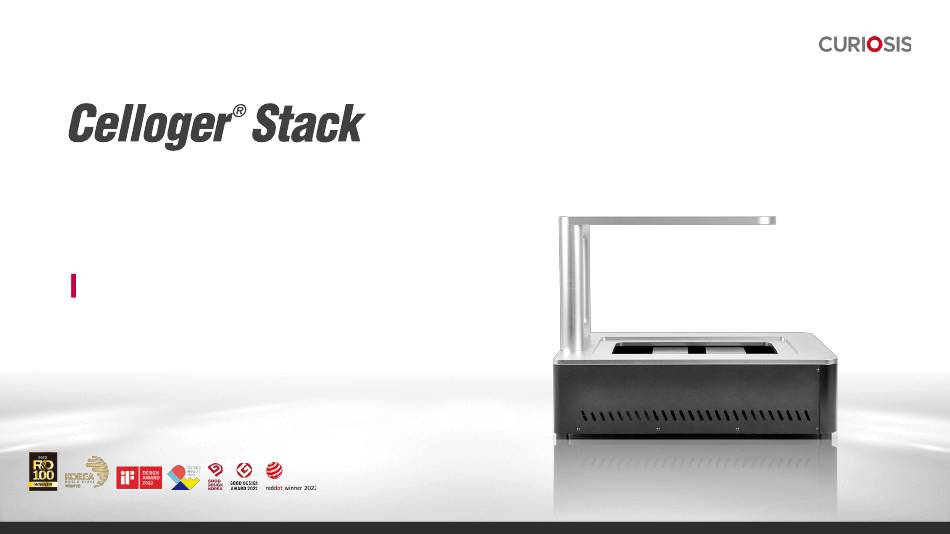

- Page 1 Automated multi-layer vessel monitoring system Quick Manual ® The design marks are for the Celloger Series...
- Page 2 Table of contents Ⅰ. Device layout Ⅱ. Installation Ⅲ. Operation Ⅳ. Specification Ⅴ. Appendix...
-
Page 3: Front-Left Side
Ⅰ. Device layout Front-left side Objective lens Illuminator (camera 2x objective) (Bright field) Indicator LAN port(to PC) Vessel holder LAN port(to Device) Power switch FRONT LAN port Power input port www.curiosis.com... - Page 4 Connect one LAN cable to the equipment(yellow) and another LAN cable to the PC(white). Connect the power cable to an outlet. Step 3. Put the device inside the Step 4. Place the sample on the stage. Step 5. Close the incubator door & incubator. check the PC connection. www.curiosis.com...
- Page 5 2. Software ③ ⑤ ④ Step 1. Open Celloger Stack Scan App. ⑥ Step 3. Click Get Network Adapter to load the network adapters connected to PC. Step 4. Select PC network from Network list then the device icon will appear on the right.
- Page 6 Press Preview for streaming. Step 3. Set the focus using Jog button( Step 2. Move to the desired position using Jog button and adjust Step 4. Designate the position to scan by pressing the brightness using Light source panel. Current Position. www.curiosis.com...
- Page 7 Ⅲ. Operation 3. Time-lapse image setting [in Scan app] Step 1. Enter Interval Time and Total Running Time in the schedule, the total cycle is entered automatically. Step 2. Click Start to begin time-lapse imaging. ① ② www.curiosis.com...
- Page 8 After specifying the interval (= Step) to applied. Step 5. Set the Interval Time and Total execute the z stacking function, adjust Running Time in the schedule and the scroll bar in Range to specify the start scanning. range. Step 4. Click Apply All. www.curiosis.com...
- Page 9 5. Confluency & Graph [in Analysis app] Step 1. Import the time-lapse folder or image file by pressing button. Confluency(%) graph Step 2. Click Analyze to estimate confluency. Step 3. Click Chart to create the confluency graph. ① ③ ② Confluency(%) result www.curiosis.com...
-
Page 10: Video Recording
Import the time-lapse folder or image file by pressing button. Step 2. Click Record to create a video. * Note. In order to change the speed (frame ① per second), change the parameter ② in Preferences of Tool menu. Note (Recommended value: 5 ~ 13) www.curiosis.com... - Page 11 O/S required Window 10 Storage 1TB (recommended) Operating environment 10~40℃, 20~95% humidity Vessel types Multi-layer chamber up to 10 layers 21 CFR Part 11 Available (optional) Autofocusing, manual focusing, time-lapse imaging, Key functions movie maker, confluency, growth curve, Z-stacking www.curiosis.com...
-
Page 12: Pc Network Setting
Ⅴ. Appendix PC network setting Window 10 ③ ⑤ ④ Step 4. Click Ethernet. Step 3. Click Network and Internet. ② Step 5. Click Change adapter options. ① Step 1. Click the Window icon. Step 2. Click Setting icon. www.curiosis.com... - Page 13 Select Ethernet and right-click the mouse and click Properties. Step 7. Step 8. Version 4(TCP/IPv4) and and enter IP address (192.168.2.XX) click Properties. and Subnet mask (255.255.255.0) in the blank fields. * Note. Fill 2 ~ 254 except 10 in XX fields. Step 9. Click OK. www.curiosis.com...
- Page 14 Ⅴ. Appendix PC network setting Window 11 ② ④ ③ ① Step 1. Click the Window icon. Step 3. Click Network and Internet. Step 4. Click the Properties in Ethernet. Step 2. Click Setting icon. www.curiosis.com...
- Page 15 * Note. Fill in any numbers from 2~254 except 10 in fields. ⑧ Step 9. Step 6. Select Manual. Click Save, then network configuration is completed. ⑤ Step 5. Click Edit in IP assignment to change IP address. ⑦ ⑨ Step 7. Change IPv4 to On. www.curiosis.com...
- Page 16 Thank you End of Document Curiosis Inc. 4F, 10, Teheran-ro 38-gil, Gangnam-gu, Seoul 06221, South Korea T 82 2 508 5237 F 82 2 508 5246 sales@curiosis.com www.curiosis.com CRQM014-2312 www.curiosis.com...
