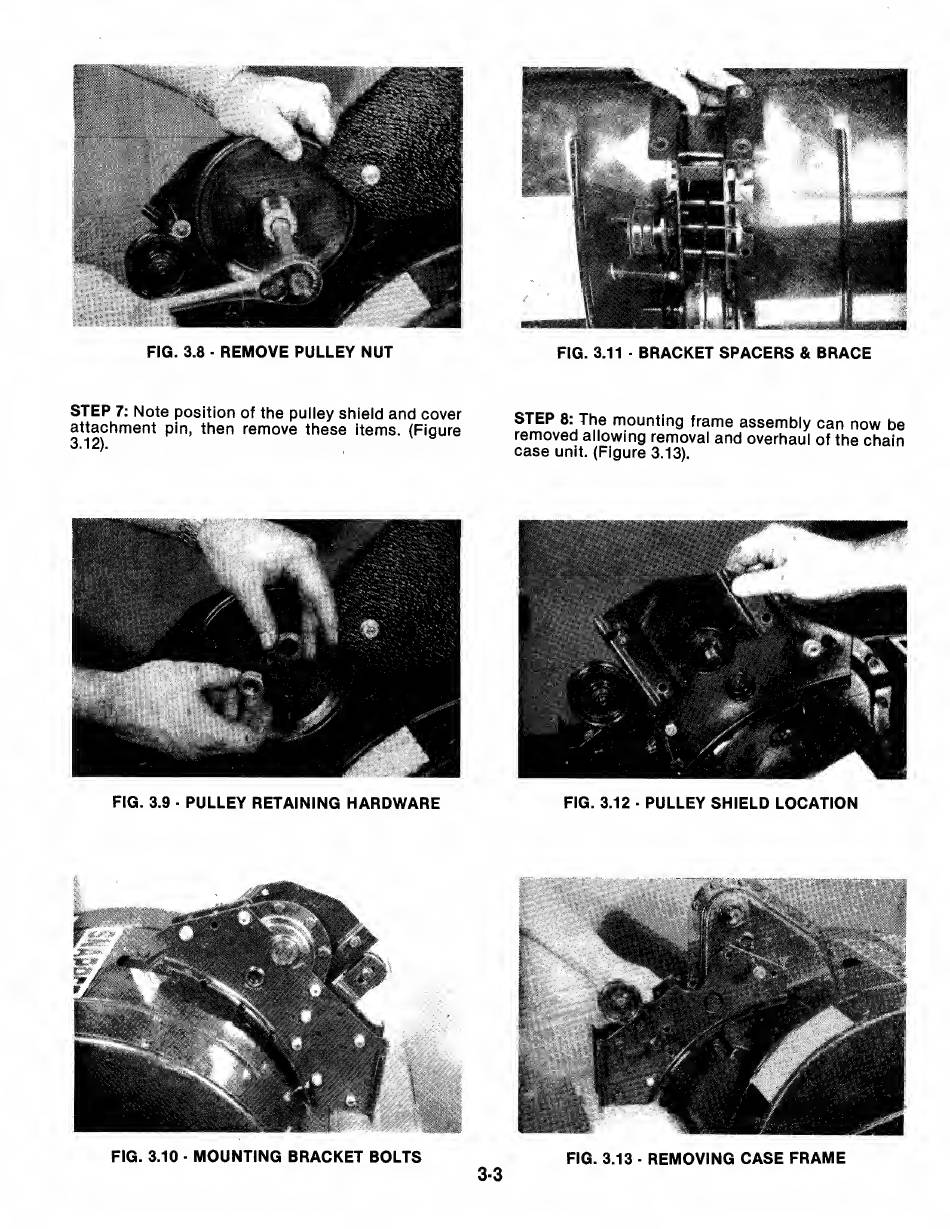

Snapper RT5 Series Service Manual page 12

STEP 7: Note position of the puiiey shieid and cover
attachment pin, then remove these items. (Fioure
3.12).
STEP 8: The mounting frame assembly can now be
removed allowing removal and overhaul of the chain
case unit. (Figure 3.13).
FIG. 3.8 - REMOVE PULLEY NUT
FIG. 3.11 - BRACKET SPACERS & BRACE
FIG. 3.9 ■ PULLEY RETAINING HARDWARE FIG. 3.12 ■ PULLEY SHIELD LOCATION
