Summary of Contents for TransAct BOHA!

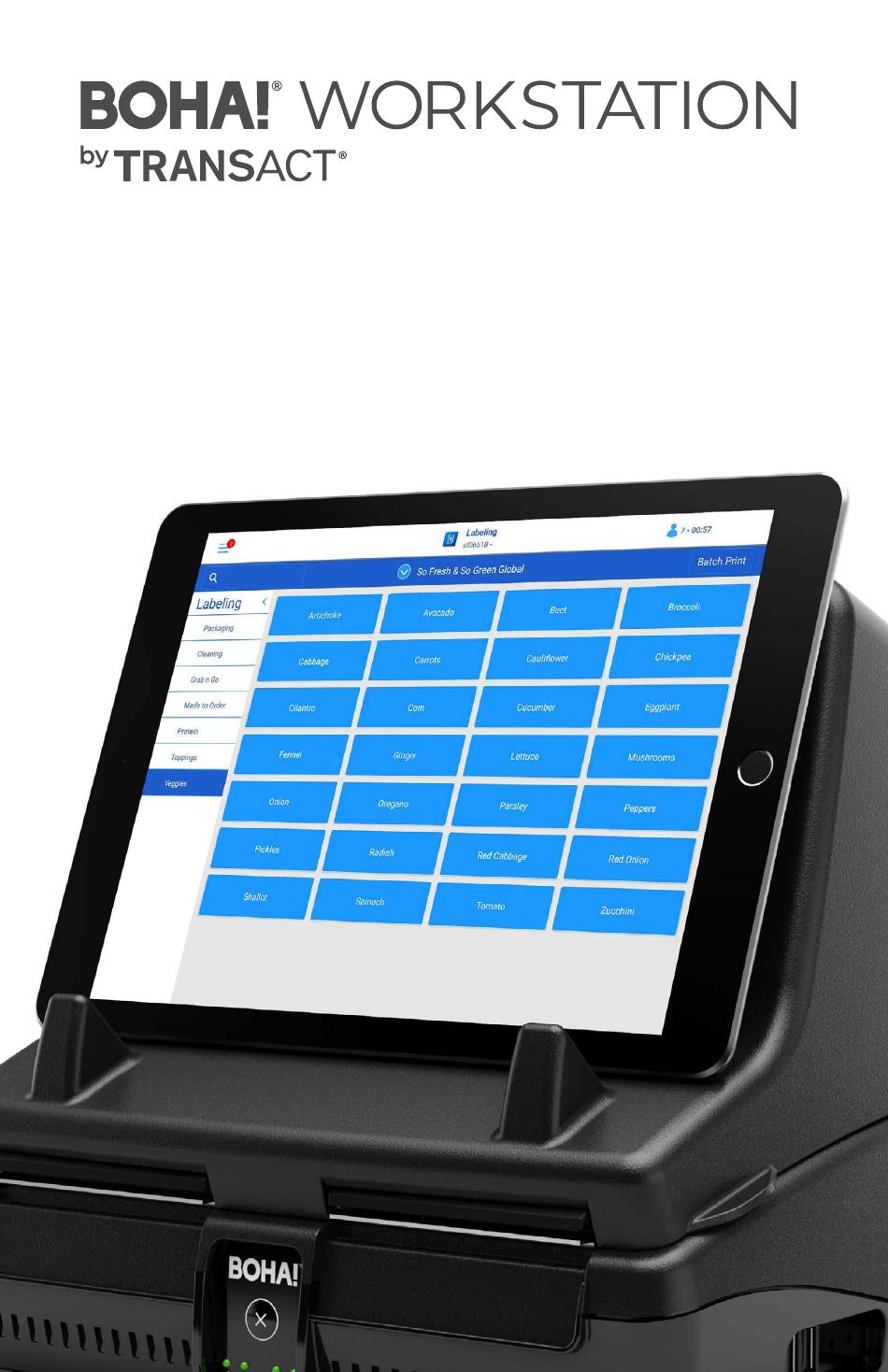

  • Page 1 QUICK START GUIDE Setting up BOHA! WorkStation...

  • Page 2: Table Of Contents

    BOHA! WORKSTATION QUICK START GUIDE ® Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Package Contents .

  • Page 3: Welcome

    WELCOME This guide will help you set up and operate the BOHA! WorkStation for use with ® BOHA! software . This process consists of four simple steps: 1 . Unboxing and powering on the BOHA! WorkStation 2 . Loading labels 3 .

  • Page 4: Package Contents

    PACKAGE CONTENTS The BOHA! WorkStation comes with the following items . If any items are missing, ® please contact TransAct Sales Support . 1 . BOHA! WorkStation Option: Tablet Mount (included if previously ordered with the WorkStation) Note: A tablet is not included with the tablet mount option .

  • Page 5: Before You Get Started

    BEFORE YOU GET STARTED 1 . Find a location for the BOHA! WorkStation that’s most convenient for prep ® staff and crew members to easily access . 2 . If the BOHA! WorkStation is going to be connected to the store Wi-Fi network, make sure the BOHA! WorkStation is in range of a Wi-Fi access point .

  • Page 6: Controls And Indicators

    CONTROLS & INDICATORS Front Control Panel Right Side Features USB-A Charging Ports (2) Left Side Features Left Printer Right Printer Status Status Network Status System Status Cancel Button AC Power Connection Cover Charging Port Power Button Bluetooth Button Rear Panel Connections USB-C Charging Port Ethernet Port Printer Controls...

  • Page 7: Control And Indicator Functions

    CONTROL & INDICATOR FUNCTIONS Control Functions Power Button Short Press ~1 sec Turn power on or request power off Long Press >5 sec Force power off Bluetooth Button Short Press ~1 sec Print network settings Cancel Button Short Press ~1 sec Cancel current label Long Press >5 sec...

  • Page 8: Setting Up Boha! Workstation

    SETTING UP BOHA! WORKSTATION ® 1 . Remove the BOHA! WorkStation from its protective packaging . 2 . Connect the AC power cord to the side of the BOHA! WorkStation as shown and plug into a power source . The BOHA! WorkStation will automatically power on when connected to power .

  • Page 9: Label Loading

    LABEL LOADING 1 . If there is a tablet on the BOHA! WorkStation, ® remove it before opening the front cover . Open the front cover of the BOHA! WorkStation by lifting on the tabs on either side of the cover . Note: Depending on the version that was ordered, your BOHA! Lifting Tabs...
  • Page 10 LABEL LOADING 4 . Pinch the blue bucket width adjustment lever on the side of the paper bucket and gently slide the sidewalls so they close in on the paper roll . The sidewalls should be straight against the label roll (as shown in Fig .

  • Page 11: Tablet Mount Option

    TABLET MOUNT OPTION If the BOHA! WorkStation was shipped with the tablet mount option, use the ® following instructions to mount a tablet onto the WorkStation . Note: The tablet mount option currently supports the iPad Generation 8 (or iPads with similar dimensions) .
  • Page 12 TABLET MOUNT OPTION b . Continue to hold the lever to the left and grasp the bottom edge of the mount cover and lift it all the way up (see Fig . 5) . c . Release the lever . Fig.5 2 .

  • Page 13: Connecting The Power Cord

    TABLET MOUNT OPTION Connecting the Charging Cord: 1 . Support the tablet with your left hand, and plug in the charging cord as shown in Fig . 8 . When the charging cord is connected, make sure that the right edge of the tablet is flush with the two right alignment tabs, then gently set the tablet backward into position in the mount .

  • Page 14: Network Connections

    NETWORK CONNECTIONS The BOHA! WorkStation and tablet must be on the same network ® to successfully print . Review the options below to find your set up process . For all options, ensure labels have been loaded in the print mechs prior to configuration . Option 1: Pre-configured Devices: Follow the steps for this option, if your device has already been configured to join your local network and your System LED indicator is solid green .

  • Page 15: Option 2: Manual Network Configuration

    NETWORK CONNECTIONS Option 2 – Manual Network Configuration: 1 . Press and hold the Bluetooth button on the left side of the BOHA! ® WorkStation until the System and Network LEDs both begin flashing . 2 . On a tablet or PC select Settings – Wi-Fi and choose the network BOHA-AP XXYYZZ .
  • Page 16 NETWORK CONNECTIONS 2 . The Home (Configuration Overview) page will be displayed showing the current settings . Configuration Overview Page...
  • Page 17 NETWORK CONNECTIONS 3 . Click on the “Menu” button in the lower right corner of the screen and select the Connectivity option . Menu (expanded view) Menu 1 . Menu open/close 2 . Home (configuration overview) 3 . Connectivity 4 . User Administration 5 .
  • Page 18 NETWORK CONNECTIONS Local Network Settings Configuration Access Settings 4 . Click on the in the Local Network section to display available networks and select your desired network . If your network is hidden, enter the information manually . 5 . Enter the Password for the selected Network ID . Note: Do not change the WorkStation Access Point Information .

  • Page 19: Option 3: Ethernet Connection

    NETWORK CONNECTIONS Option 3 – Ethernet Connection: 1 . Plug the Ethernet cord into the Ethernet port on the back of the BOHA! WorkStation . ® 2 . When the connection is complete, the Network LED on the BOHA! WorkStation front panel will change to solid green . 3 .

  • Page 20: Setting Up Boha! Labeling

    SETTING UP BOHA! LABELING ® Log into BOHA! Ops Your device may have been pre-assigned to your location and is ready for operation . To log in manually, there are two available methods: QR Code and Account Credentials . 1 . Open BOHA! Ops on your tablet 2 .
  • Page 21 SETTING UP BOHA! LABELING ® 3 . If you need to locate your Account Credentials: a . Log in to your BOHA! Control Center account at https://boha.transact-tech.com from your PC or tablet . b . Select Locations Manager.
  • Page 22 SETTING UP BOHA! LABELING ® c . Select your location from the hierarchy list . d . Select the information button .
  • Page 23 SETTING UP BOHA! LABELING ® Log in via QR Code 1 . Select the QR code icon . 2 . A QR code will display on the screen . SAMPLE...
  • Page 24 SETTING UP BOHA! LABELING ® 3 . Select the QR code icon on the BOHA! Ops app . 4 . Point the tablet camera at the QR code displayed on Control Center . 5 . Once the QR code is recognized, the app will log in .
  • Page 25 SETTING UP BOHA! LABELING ® Log in via Account Credentials 1 . Locate your Account Code, Location, and Location Code in the blue box . 2 . Enter your Account Credentials in the BOHA! Ops app and select Sign In .
  • Page 26 SETTING UP BOHA! LABELING ® Once logged in, BOHA! Labeling is now ready for operation . BOHA! Ops screen...

  • Page 27: Printing A Label

    PRINTING A LABEL 1 . Select Labeling . 2 . Select Add New Printer .
  • Page 28 PRINTING A LABEL 3 . Select your BOHA! WorkStation under Printers Found . 4 . Select the label size you have loaded to the left and/or right printers .
  • Page 29 PRINTING A LABEL 5 . Select Done . 6 . Select the menu item you need to print . Note: To print multiple quantities: a . Long press the menu item for two seconds or until the print panel appears . b .
  • Page 30 PRINTING A LABEL 7 . Press Print .

  • Page 31: Tablet Charging Connections

    TABLET CHARGING CONNECTIONS There are three USB charging ports provided on the BOHA! WorkStation, two ® USB type A connectors on the right side of the base and a USB type C connection located in the top cover . Cable guides are provided on the cover to route the charging cable when the tablet is placed on the BOHA! WorkStation .

  • Page 32: Boha! Workstation Name

    BOHA! WORKSTATION NAME ® In the event that more than one BOHA! Work Station is installed in a location, it will be useful to assign a unique name to the device . These names will be displayed in the BOHA! Ops application to simplify selection of a specific BOHA! Work Station for printing .

  • Page 33: Service & Support

    SERVICE & SUPPORT For questions regarding the use and servicing of your device, you have several options: 1 . Visit www.transact-tech.com, then select Service & Support . 2 . Email us at support@transact-tech.com 3 . In the USA call: 1-877-748-4222 International: +1-607-257-8901 Monday–Friday 8am–8pm, Eastern Time .
  • Page 36 ©2023 TransAct Technologies Inc . TransAct and BOHA! are registered trademarks 97-18007_RevG of TransAct Technologies Inc .
