Damon ESTES FS-10 Manual

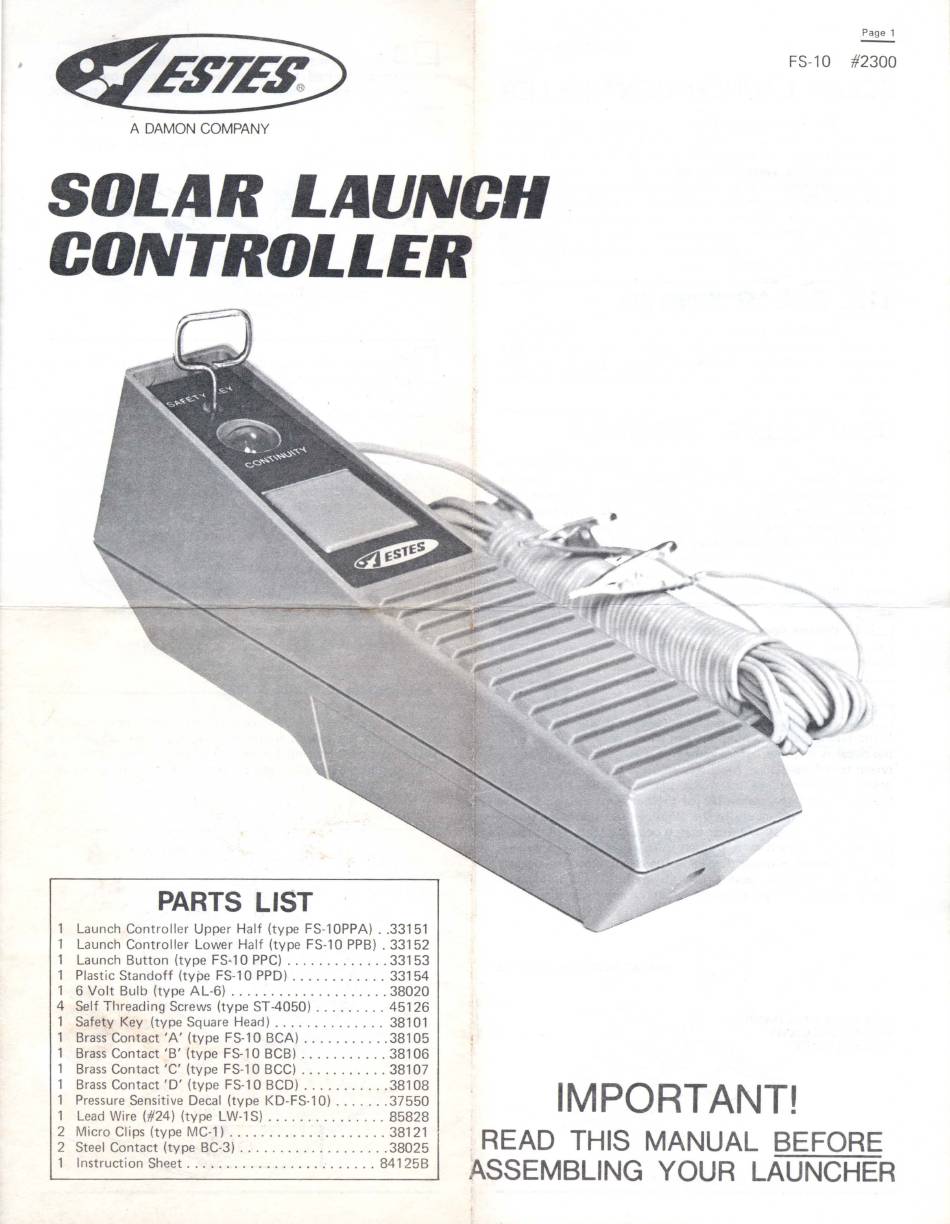

Page 1
FS-10 #2300
A DAMON COMPANY
SOLAR LAUNCH
CONTROLLER
PARTS LIST
1 Launch Controller Upper Half {type FS-10PPA} .. 33151
1 Launch Controller Lower Half {type FS-10 PPB) . 33152
1 Launch Button {type FS-10 PPC) ............. 33153
1 Plastic Standoff {type FS-10 PPD) ............ 33154
1 6 Volt Bulb {type AL-6) .................... 38020
4 Self Threading Screws {type ST-4050) ......... 45126
1 Safety Key {type Square Head) .............. 38101
1 Brass Contact 'A' {type FS-10 BCA) ........... 38105
1 Brass Contact 'B' {type FS-10 BCB) ........... 38106
1 Brass Contact 'C' {type FS-10 BCC) ........... 38107
1 Brass Contact 'D' {type FS-10 BCD} ........... 38108
1 Pressure Sensitive Decal {type KD-FS-10) ....... 37550
1 Lead Wire (#24) {type LW-1 S) ............... 85828
2 Micro Clips {type MC-1) .................... 38121
2 Steel Contact {type BC-3) .... . .............. 38025
1 Instruction Sheet ........................ 84125B
IMPORTANT!
READ THIS MANUAL BEFORE
ASSEMBLING YOUR LAUNCHER
