F-3
OPERATING INSTRUCTIONS
AND E-WARRANTY APPLICATION MANUAL
ENERGY EFFICIENCY
5 STAR RATING
ANNUAL ENERGY CONSUMPTION
ANNUAL ENERGY COST
5.76 kWh
$1.20
• 2 Watts High Energy Efficiency
• Equipped With Long-lasting Brushless DC Motor System
• 95% Savings Compared To Regular Fans With Similar Specification
Annual energy consumption and cost is calculated based on
$0.2076/kWh (Jan to Mar 2021), 8hrs/day operation at the lowest
speed setting and actual figures may vary in accordance to usage.
NOVITA.COM.SG/F-3
Advertisement
Table of Contents

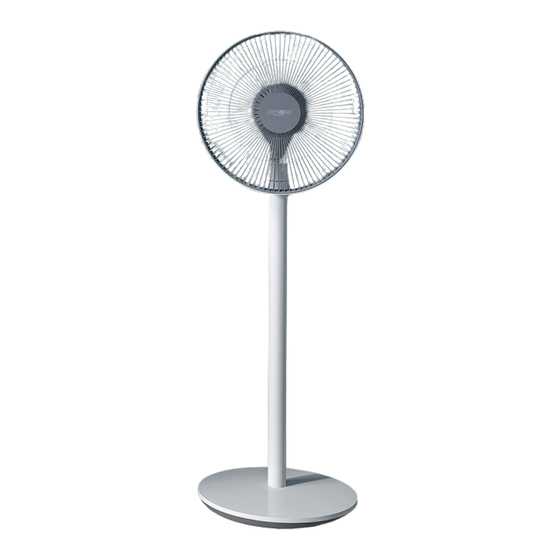

Summary of Contents for Novita GREENFAN F-3
- Page 1 • 95% Savings Compared To Regular Fans With Similar Specification Annual energy consumption and cost is calculated based on $0.2076/kWh (Jan to Mar 2021), 8hrs/day operation at the lowest speed setting and actual figures may vary in accordance to usage. NOVITA.COM.SG/F-3...
-
Page 2: Table Of Contents
OPERATING INSTRUCTION AND E-WARRANTY APPLICATION Please reach instructions before using the novita GreenFan F-3. ® CONTENT Product Package Product & Control Panel Description Remote Control Description Unit Installation and Set Up Connect to Power Supply/Charge Built-In Battery Using the novita GreenFan ®... -
Page 3: Product Package
PRODUCT PACKAGE Includes: Fan Head Assembly Motor Unit Centre Pole Fan Holder (Side Guard, Front Guard and Fan Blade) Base Unit Guard Adapter & Bluetooth Remote Holder Magnetic Dock Control 1 x AAA Battery Screw and Quick Screwdriver Starter Guide Please contact us immediately if any of the above-mentioned items are not included. -
Page 4: Product & Control Panel Description
Timer Button Smart Auto Mode Battery Indicator Speed / Timer Indicator Front View Back View Bottom View Base Gasket POWERED BY NOVITA Rear Cover for Base Unit Fan Head Assembly Motor Unit Base Unit Motor Unit Charging Interface Release Button... -
Page 5: Unit Installation And Set Up
UNIT INSTALLATION AND SET UP Note: Remove all items and parts from the packaging box. Place all the parts on a dry, stable and level surface. DO NOT turn on the fan or connect to the magnetic dock before the fan is completely assembled. Always keep the fan off during installation or disassembling and DO NOT press the power on/off button to prevent any unexpected operation of the fan. - Page 6 After snap fit of front and side guard front and side guard Right alignment Left alignment mark on side guard mark on side guard Alignment mark Alignment mark on front guard on front guard POWERED BY NOVITA POWERED BY NOVITA...
- Page 7 Lock the Front Guard Use the screwdriver provided to tighten the screw located at the bottom of the side guard in a clockwise direction to lock the front guard in position. The head unit assembly is completed. Screw Screwdriver FOR USAGE AS FLOOR-STANDING FAN FOR USAGE AS DESKTOP FAN Connect the assembled head unit to the Connect the centre pole to the base unit,...
- Page 8 DISCONNECTING THE JOINT To disconnect the motor unit and centre pole from the connecting joint, press the respective release button at the back of the unit. Back View POWERED BY NOVITA Motor Unit Release Button Centre Pole Centre Pole Release Button...
-
Page 9: Connect To Power Supply/Charge Built-In Battery
CONNECT TO POWER SUPPLY/CHARGE BUILT-IN BATTERY Note: F-3 can be used with or without the adapter and the magnetic dock. Connecting the Magnetic Dock Connect the adapter power connector to the dock. Align the magnetic dock to the base unit charging interface. Connect to power supply. The battery indicator flashes when the power is connected successfully. -
Page 10: Using The Novita Greenfan
USING THE NOVITA GREENFAN® F-3 Stop using the fan immediately if they are any abnormalities such as unusual noise, odour, high temperature or inconsistent fan shaking frequency. DO NOT lean on or tilt the fan during its operation. DO NOT manually swing the fan head unit repeatedly to avoid damage to the internal CAUTION transmission mechanism. - Page 11 Horizontal Angle (Auto) Press the button to activate the horizontal oscillation angle up to 140 . Press the button once again to station the oscillation at your preferred position. to the left to the right DO NOT use excessive force to tilt the fan horizontal oscillation angle to prevent damage to the oscillation mechanism. Do not move the fan head assembly beyond the indicated angles when manually adjusting the angle to prevent damage.
-
Page 12: Remote Control Battery Installation/Replacement
Timer Press the button consecutively to select timer setting from 01 to 04 hours to program the unit to stop its operation. Corresponding light indicator illuminates on the selected setting. When the timer operation is completed, the light indicator will return to the current fan speed setting. -
Page 13: Remote Control Bluetooth Reset Pairing
REMOTE CONTROL BLUETOOTH RESET/PAIRING BLUETOOTH REMOTE CONTROL RESET By default, the Bluetooth remote control is already paired up with F-3 and it can used straightaway. If user like to reset the Bluetooth connection, following the instructions below: Method 02: Method 01: Reset via Remote Control Reset via Unit Control Panel Press both the... -
Page 14: Cleaning & Maintenance
Use water or mild diluted household detergent with soft cloth or a sponge to wash the following parts. Dry it thoroughly (avoid direct sunlight) before assembling the parts back onto the unit. POWERED BY NOVITA Front Guard Fan Blade Side Guard Guard Holder Before cleaning and maintenance, please stop the fan, remove the base unit. -
Page 15: Safety Precautions
SAFETY PRECAUTIONS POWERED BY NOVITA POWERED BY NOVITA DO NOT insert fingers or DO NOT use the fan near Only use the provided DO NOT operate the unit on foreign objects inside the curtains or other obstacles adapter and magnetic dock uneven or unstable surface. -
Page 16: Safety Instructions
Always disconnect the fan from the adapter/magnetic dock before cleaning and maintenance, during assembly or disassembling the unit or before transporting the unit. Repairs of the fan should only be done by qualified service technicians from novita. Improper repair work can cause considerable danger to the user. -
Page 17: Troubleshooting
The adapter/magnetic dock is Contact novita Customer Care Centre. damaged. Detach and re-assemble the fan The fan centre pole is not properly components and ensure they are fitted installed to the base unit. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS POWERED BY NOVITA POWERED BY NOVITA Desktop Floor-Standing 325 x 325 x 618mm 325 x 325 x 1000mm Net Weight 2.9 Kg Power Consumption 24 Watts Rated Voltage ------ Max. RPM Up to 908 RPM Max. Air Flow Rate 24.69 m... -
Page 19: Novita Customer Service Guarantee
SERVICE TREKKING* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated. -
Page 20: Limited Warranty Terms & Conditions
D. Transportation, delivery and incidental cost incurred in fulfilment of this limited warranty. The purchaser/user shall be fully responsible for the due delivery of the Product for any repair work to novita and for the subsequent collec- tion. Any Product to be repaired must be sent to the service centre directly. No outdoor servicing will be provided. -
Page 21: Product Warranty Extension - Extended Carry-In Warranty
Product if found to be defective during the limited warranty period specified above. novita does not warrant uninterrupted or error-free operation of the product. - Page 22 COPYRIGHT 2021 NOVITA SG KC/M/F-3/V1...
Need help?
Do you have a question about the GREENFAN F-3 and is the answer not in the manual?
Questions and answers
Unable to pair the fan unit with the remote control. The Bluetooth indicator does not light up despite pressing the 2 buttons for pairing mode
To troubleshoot the Bluetooth pairing issue between the Novita F-3 fan unit and its remote control, follow these steps:
1. Enter Pairing Mode on the Fan Unit: Press and hold both the and buttons on the fan’s control panel simultaneously. The fan will beep once, and the normal wind, natural wind, and smart auto mode indicators will flash white 4 times, indicating the unit is in pairing mode.
2. Enter Pairing Mode on the Remote Control: Press and hold both the and buttons on the remote. The Bluetooth indicator on the remote will start flashing orange continuously.
3. Complete the Pairing: Press any button on the remote control. If pairing is successful, the unit will beep once, and all 8 indicators on the remote will light up.
If pairing fails:
- Make sure both the fan and remote are powered.
- Check the battery in the remote.
- Repeat the pairing steps carefully in the correct order.
This answer is automatically generated
Can the f3 **** work without the built in battery?
The Novita GREENFAN F-3 can be connected to a power supply, which suggests it can operate without relying solely on the built-in battery.
This answer is automatically generated
Can it be connected with android apps control?
