Skyfan DC SKYWCM Instruction Manual

Skyfan DC SKYWCM Instruction Manual

Wall control module

Advertisement

Quick Links

WALL CONTROL MODULE: SKYWCM
(Suits all Skyfan DC with Light models)
Please Note: Wall Control Module cannot be used either simultaneously, or in
conjunction with, a Skyfan remote Handset.

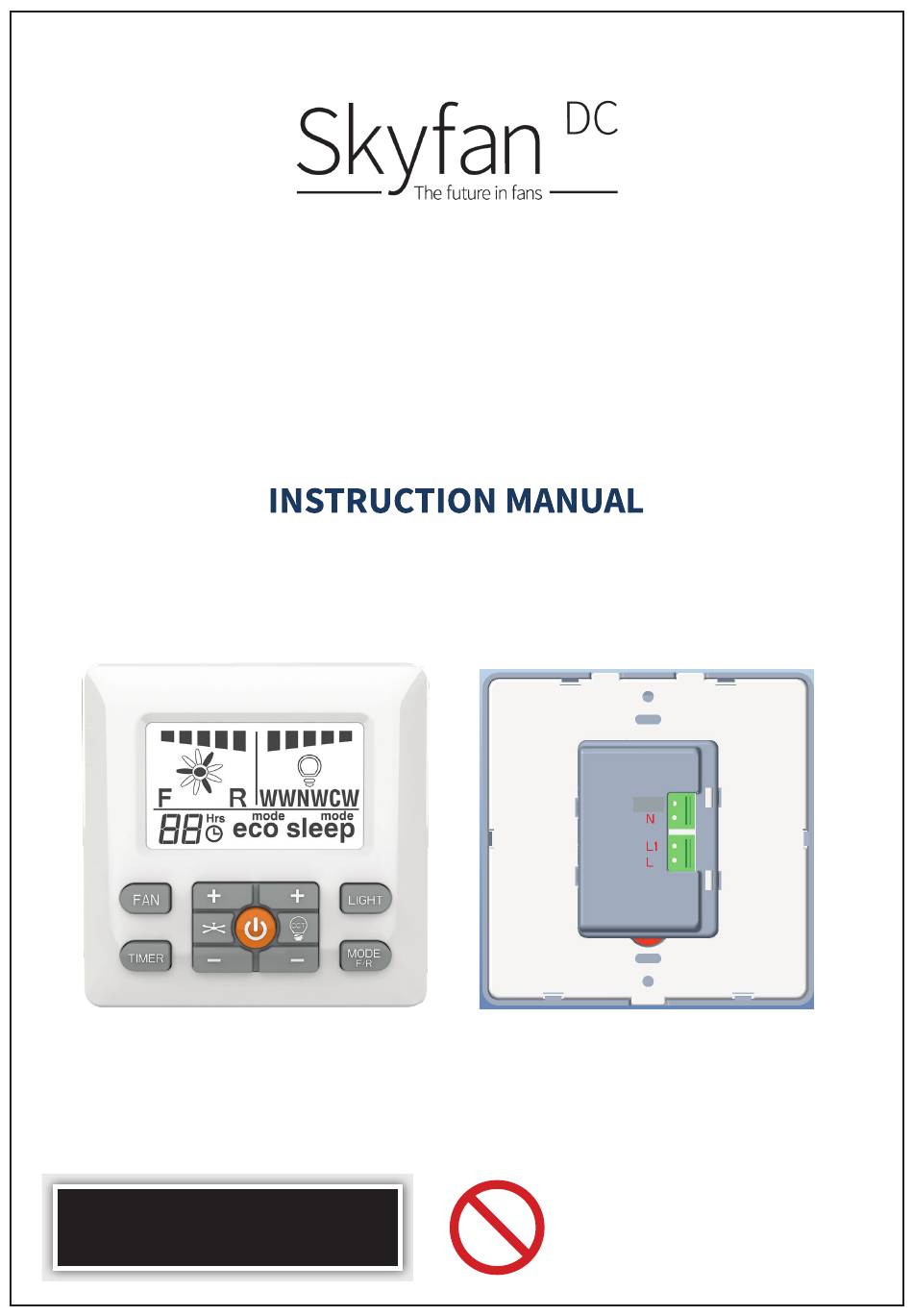

INSTRUCTION MANUAL
ELECTRICAL WIRING DIAGRAM
WARNING: FOR YOUR SAFETY, ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
OPERATION
LICENSED ELECTRICIAN IN ACCORDANCE WITH AS/NZS 3000 WIRING RULES.
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN IN
A CIRCUIT BREAKER (10A) TYPE C ACCORDING TO AS/NZS 60898-1 SHALL BE INSTALLED.
ACCORDANCE WITH AS/NZ3000 WIRING RULES.
N1
(FOR "WITH LIGHT" MODELS ONLY)
Using 1 wall controller to control 1 Skyfan DC Ceiling fan.
Images are for reference only and may vary slightly from actual product.
Wall Control Module Installation Manual Rev 1.3
MUST BE INSTALLED
CAUTION
DIY
BY A LICENSED
Read Instructions Carefully For Safe
Installation and Fan Operation
ELECTRICIAN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKYWCM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Skyfan DC SKYWCM

  • Page 1 A CIRCUIT BREAKER (10A) TYPE C ACCORDING TO AS/NZS 60898-1 SHALL BE INSTALLED. ACCORDANCE WITH AS/NZ3000 WIRING RULES. (FOR “WITH LIGHT” MODELS ONLY) Using 1 wall controller to control 1 Skyfan DC Ceiling fan.  Images are for reference only and may vary slightly from actual product.
  • Page 2 • Using 1 wall controller to control 1 x Skyfan DC with Light Ceiling Fan. (CAN BE LEFT VACANT OR USED AS “N” OUT) (TO FAN) (AC 220-240V) Connect “LIVE” supply to “L” on the controller, Connect fan to “L1” of the wall controller.
  • Page 3 Pair the Secondary fans. , a beep’ sound will be heard, and within 20 Turn secondary fan isolation switch “ON” seconds, press and hold on the master wall controller for 3 seconds. The fan will emit another ‘beep beep’ sound to indicate the pairing process has been successful. Repeat this process for each of the secondary fans.

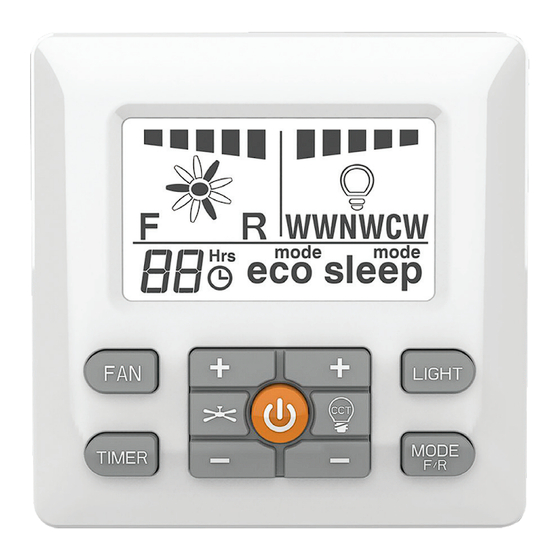

  • Page 4 Model: SKYWCM Suitable for all Skyfan DC with Light models Power ‘ON’ and ‘OFF’ (Isolation switch) Fan ‘ON’ and ‘OFF’ Increases fan speed until Max (speed 5) Decreases fan speed until Min (speed 1) LIGHT Switches light ‘ON’ and ‘OFF’...
