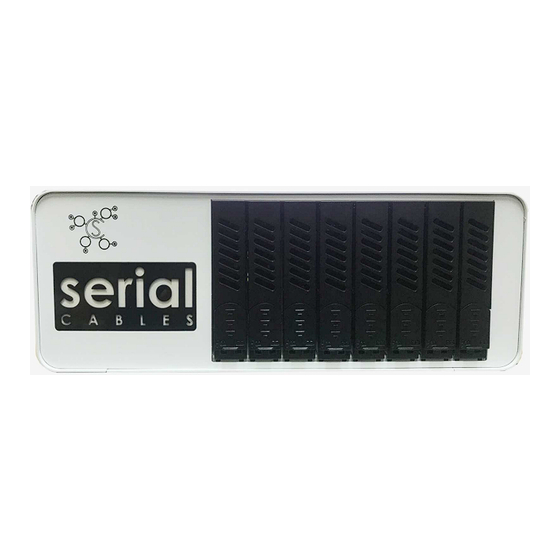

PCIe Gen5 8Bay Passive JBOF
User's Manual
REV: 1.0
Jan. 2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe Gen5 8Bay Passive JBOF and is the answer not in the manual?

Questions and answers

Summary of Contents for Serial Cables PCIe Gen5 8Bay Passive JBOF

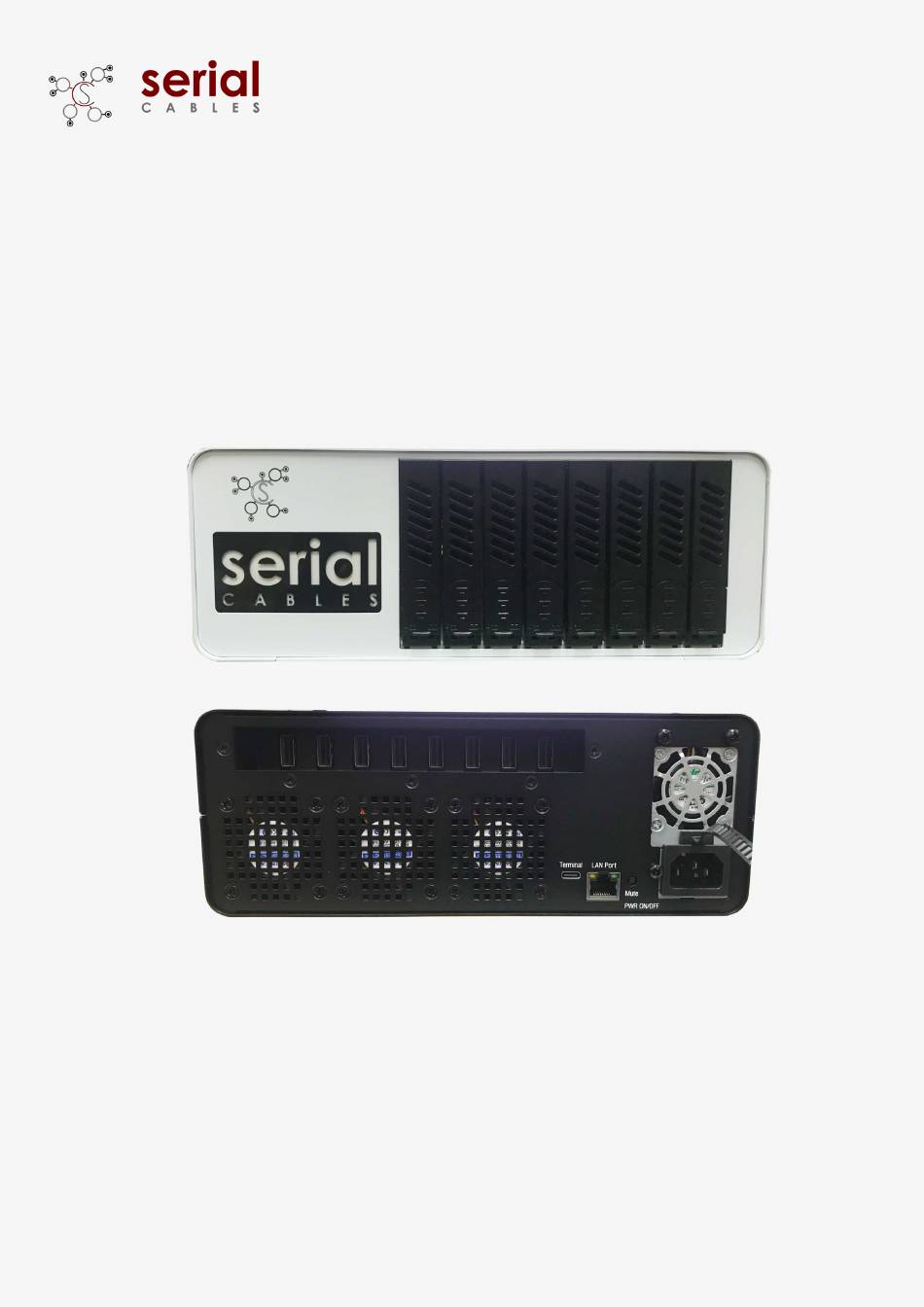

  • Page 1 PCIe Gen5 8Bay Passive JBOF User’s Manual REV: 1.0 Jan. 2023...
  • Page 2: Packing List

    PCIe Gen5 8Bays Passive JBOF Packing List 1. Gen5 8bays JBOF enclosure x1 2. Power cord clip of PSU 3. Power cord 4. screws and cooper pillar (For M.2 SSDs) 5. screws for interposer cards, U2/U3/E3 SSDs.
  • Page 3 PCIe Gen5 8Bays Passive JBOF SSDs Installa on E3 SSDs Move bracket to here for E3.L SSD Secure E3 SSDs to tray M.2 SSDs Secure E3 to M2 interposer cards. Install copper pillar for 2260/2280/22110 M.2 form-factor U.2/U.3 SSDs Secure E3 to U2/U3 interposer cards. Secure U2 or U3 SSDs...
  • Page 4: System Overview

    PCIe Gen5 8Bays Passive JBOF System Overview Slot 8 Slot 1 Drive Present LEDs: White Drive Fault LED:s Drive Ac vity LEDs: Blue Mute: Disable beeping for any failure events detected. Power Control: Power ON: Press for 2 sec. MCIO Ports Power OFF: Press for 3 sec Ethernet System FANs...
  • Page 5 PCIe Gen5 8Bays Passive JBOF Connec ng to Atlas2 MCIO based host cards SC mode SC mode SC Gen5 Host card SC Gen5 Host card MCIO Cables...
  • Page 6: Install Usb Driver

    PCIe Gen5 8Bays Passive JBOF Install USB Driver Download and install the CDC driver for unidentified device (VID_03EB&PID_2018) Available at: https://www.serialcables.com/wp-content/uploads/2018/11/SynergyUSBCDC_20180518.rar [Figure 1] [Figure 2] [Figure 3] [Figure 4] [Figure 5] [Figure 6]...
  • Page 7 PCIe Gen5 8Bays Passive JBOF [Figure 7] [Figure 8] [Figure 9] [Figure 10] [Figure 11] [Figure 12] [Figure 13] [Figure 14]...
  • Page 8: Cli Setup

    PCIe Gen5 8Bays Passive JBOF CLI Setup Step 1. Install and launch Tera Term applica;on (or Hyper Terminal requires version 3.0 or higher). Step 2: To ensure proper communica;ons between host adapter card and the VT100 Terminal emula;on, please configure the VT100 Terminal emula;on se@ngs to the values shown below: Step 3: For “Port”, select COM3 in this example.
  • Page 9 PCIe Gen5 8Bays Passive JBOF MCU FW Upgrading (Op on 1) Step 1. Type “fdl mcu” in CLI commands Step 2: Sending updated FW(i.e PCIe_Gen5_Passive_JBOF_FW_v002) via XMODEM. It will take few seconds to complete update process. Step 3. Power cycle host card to apply the new FW.
  • Page 10 PCIe Gen5 8Bays Passive JBOF MCU FW Upgrading (Op on 2) Step 1. Connect the USB port of JBOF to PC or laptop Step 2. Press the mute buEon in the rear of JBOF then power on. Mute bu@on Step 3. a.) it will show an added USB device in PC or laptop.
  • Page 11 PCIe Gen5 8Bays Passive JBOF MCU Commands List Commands Description help Show list of commands syspwr NVMe JBOF enclosure power ON/OFF control Ethernet IP configuration dhcp Ethernet DHCP function control setmac Set Ethernet MAC address Update PCIe switch config/FW or MCU FW Show environmental info, including temperatures, FANs, PSUs, voltages.
  • Page 12 PCIe Gen5 8Bays Passive JBOF syspwr Command Gen5 8bays enclosure power on/off control. This command allows users to remote power ON/OFF the NVMe JBOF enclosure from either switch controller board. -Usage: syspwr [on|off] Power on the JBOF enclosure. Power off the JBOF enclosure.
  • Page 13: Eth Command

    PCIe Gen5 8Bays Passive JBOF eth Command Ethernet IP configuration. Shows the Ethernet port configura;on , etc. MAC address, IP address, link status, gateway, MTU, DHCP. - Usage: eth <ipaddr(*)> <subnet(*)> <gateway(*)>...
  • Page 14: Dhcp Command

    PCIe Gen5 8Bays Passive JBOF dhcp Command Ethernet DHCP function control. Enable or disable DHCP func;on support for Ethernet port. dhcp - Usage: [on|off]...
  • Page 15 PCIe Gen5 8Bays Passive JBOF setmac Command Setting the MAC address to the Ethernet. To program any MAC address for tes;ng purpose. The new MAC address will be applied aNer MCU reset or switch controller board power cycle. -Usage: sage: setmac <xx:xx:xx:xx:xx:xx> Set MAC address to 00:11:22:33:44:55...
  • Page 16 PCIe Gen5 8Bays Passive JBOF fdl Command Xmodem download image. For On-board MCU FW upgrading. -Usage: fdl mcu Update MCU FW. Sending the new FWs via XMODEM. It will take few seconds for MCU FW updating.
  • Page 17 PCIe Gen5 8Bays Passive JBOF lsd Command Show environmental condi;ons informa;on. -Usage: lsd □ Two temp sensors located in back plane board. □ Three system FANs located in the rear of JBOF. □ PSU 12V output monitoring...
  • Page 18 PCIe Gen5 8Bays Passive JBOF ssdpwr Command Control the power of each EDSFF slot. - Usage: ssdpwr [<slot(D|all)> <on|off>] - slot(D) : slot number should be 1 ~ 8 Power off slot 1 Power on slot 1. Power off for all slots.
  • Page 19 PCIe Gen5 8Bays Passive JBOF showslot Command Show slot informa;on. - Usage: ssdpwr [<slot(D|all)> <on|off>] - slot(D) : slot number should be 1 ~ 8 SSD types support in interposer cards: E3 to U2 INT card E3 to U3 INT card E3 to M2 INT card EDSDD drive support: E3.S...
  • Page 20: Setmode Command

    PCIe Gen5 8Bays Passive JBOF setmode Command Set enclosure mode - Usage: setmode <mode(D)> - mode(D) : mode number should be 1 ~ 2 - mode1 : SC mode - mode2 : Vendor mode Set enclosure mode to mode 1. showmode Command Show enclosure mode - Usage: showmode...
  • Page 21 PCIe Gen5 8Bays Passive JBOF dual Command Set dual channel enable on/off in slots. - Usage: dual [<slot(D)|all> <on/off>] - slot(D) : slot number should be 1 ~ 8 - Ex : dual all on - Ex : dual 1 on...
  • Page 22 PCIe Gen5 8Bays Passive JBOF pwrdis Command Set pwrdis in slot pin3 level to high or low state. - Usage: pwrdis [<slot(D)|all> <h/l>(C)] - slot(D) : slot number should be 1 ~ 8 - h(C) : disable SSD power - l(C) : enable SSD power - Ex : pwrdis all h - Ex : pwrdis 1 h Set PWRDIS to “H”...
  • Page 23 PCIe Gen5 8Bays Passive JBOF hled Command Hled control To control the host LED in EDSFF SSDs to be ON or OFF. - Usage:hled <slot(D)|all> <on/off> - slot(D) : slot number should be 1 ~ 8 - Ex: hled 1 on - Ex: hled 1 off...
  • Page 24 PCIe Gen5 8Bays Passive JBOF buz Command Buzzer control - Usage: buz <on|off|en|dis> - [en]: enable the buzzer func;on - [dis]: disable the buzzer func;on - [on]: set buzzer to beep in one ;me - [off]: mute buzzer beeping...
  • Page 25 PCIe Gen5 8Bays Passive JBOF bist Command On-board devices diagnos;c. - Usage: bist...
  • Page 26 PCIe Gen5 8Bays Passive JBOF iicwr Command I2C read/write. - Usage: iicwr <Addr(H)> <Slot(D)> <ReadByte(D)> <WriteData(H)> - Addr(H) : Device address - Slot(D) : Slot should be 1 ~ 8 - ReadByte(D) : Max read byte is 128 byte - WriteData(D) : Max write byte is 128 byte - Ex : iicwr d4 1 8 0 Read 8 bytes data starts from register “0”...
  • Page 27 PCIe Gen5 8Bays Passive JBOF iicw Command I2C write. - Usage: iicw <Addr(H)> <Slot(D)> <WriteData(H)...> - Addr(H) : Device address - Slot(D) : Slot should be 1 ~ 8 - WriteData(D) : Max write byte is 128 byte - Ex : iicw d4 1 ff which install in slot 1 Write data “0xff”...
  • Page 28: Ver Command

    PCIe Gen5 8Bays Passive JBOF ver Command Show on-board MCU F/W informa;on. - Usage: ver...
  • Page 29 PCIe Gen5 8Bays Passive JBOF sysinfo Command Show system informa;on. Sysinfo command is for JBOF enclosure diagnos;c, it combines ver, lsd, ssdpwr, pwrdis, bist commands. - Usage: sysinfo...
