Congratulations on your Guide Gear® purchase.
Enjoy your new Guide Gear® item with confidence, knowing it has been
designed and built to deliver dependable quality and performance

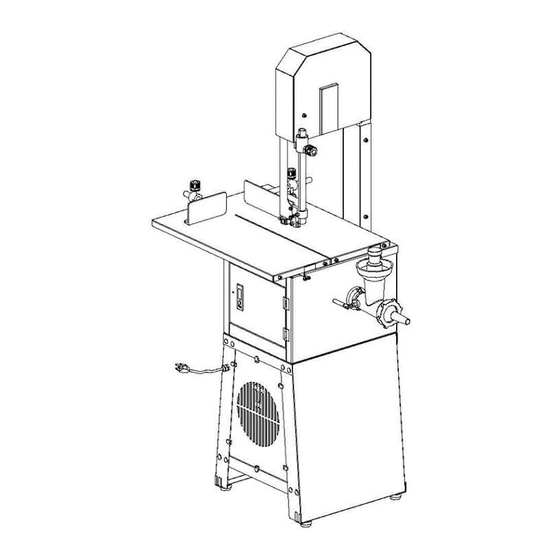

Item #424263 Guide Gear® Electric Meat Cutting Band Saw and Grinder
SAVE THIS MANUAL FOR FUTURE REFERENCE
sportsmansguide.com
sportsmansguide.com
at an exceptional value.
Item #424263: GG Electric Meat Cutting Band Saw and Grinder
Item #424263: GG Electric Meat Cutting Band Saw and Grinder
1 of 14
Advertisement
Table of Contents
Summary of Contents for Sportsman's Guide Guide Gear 424263
- Page 1 Congratulations on your Guide Gear® purchase. Enjoy your new Guide Gear® item with confidence, knowing it has been designed and built to deliver dependable quality and performance at an exceptional value. Item #424263 Guide Gear® Electric Meat Cutting Band Saw and Grinder SAVE THIS MANUAL FOR FUTURE REFERENCE sportsmansguide.com sportsmansguide.com...
-
Page 2: Warnings And Cautions
For future reference, please complete the owner's record below and save the receipt with this manual: Motor Serial Number/Lot Date Code: __________________________ Purchase Date: ______________________ For assistance with your product, please contact For missing or replacement parts, please Sportsman’s Guide customer service at contact Uriah's customer service at 1-800-888-3006 1-888-326-8502... - Page 3 WARNINGS AND CAUTIONS CONTINUED WARNINGS AND CAUTIONS CONTINUED • NEVER use this product with a malfunctioning switch. Any electrical appliance that cannot be controlled with the power switch is dangerous and must be repaired by an authorized professional before using. •...
-
Page 4: Extension Cords
EXTENSION CORDS • ALWAYS use a proper extension cord when operating this product. The cord needs to be properly wired and in good condition. • ALWAYS use an extension cord that is appropriately rated and of the proper gauge to carry the current this product will draw. - Page 5 MEAT PROCESSOR SPECIFICATIONS Part Description Part Description Rubber Feet Cover Steel Stand Blade Guard Meat Grinder Assembly Locking Handle Fence Tube Connector Pusher Meat Grinder Intake Pusher Locking Knob Stuffer Tool Sliding Stainless Steel Table Blade Guard Adjustment Knob Front Access Door Front Motor Access Panel sportsmansguide.com sportsmansguide.com...
-
Page 6: Package Contents
PACKAGE CONTENTS • Electric Meat Cutting Band Saw with Meat Grinder 2 1/2" Grinding Plate • • Funnel Attachment Stuffer Tool • Saw Blade • PARTS LIST Please refer to this Parts List table during assembly. Description Qty. Description Specifications Qty. - Page 7 DIAGRAM A DIAGRAM B (also same as Figure 1 on the next page - page 8) sportsmansguide.com sportsmansguide.com Item #424263: GG Electric Meat Cutting Band Saw and Grinder Item #424263: GG Electric Meat Cutting Band Saw and Grinder 7 of 14...
- Page 8 ASSEMBLY INSTRUCTIONS WARNING: NEVER plug this product into a power source until assembly is complete. Before assembling, review the components diagram in Figure 1 below and the Parts List on page 6. Assemble the stand first and gradually add all other components. Then end with attaching the motor housing.
- Page 9 Once the base is assembled, attach the Drive Belt to the motor wheel (A) and to the Spindle Wheel (B) in the compartment directly above. If the two wheels do not line up properly, loosen the four bolts (C) holding the motor in place and slide the motor up or down, depending on need. Once the wheels line up, re-tighten the bolts.
- Page 10 MOUNTING A NEW BLADE: Use replacement blades (BSB-MBS) measuring 82” x 5/8” with 4 teeth per inch. To mount a new blade, begin by placing the upper portion of the blade onto the upper drive wheel, with the blade teeth facing down and toward you. While doing this, insert the blade in the slot located on the upper guide body (N).
- Page 11 ASSEMBLING THE POWER SWITCH WARNING: NEVER connect the product to a power supply before assembly is complete. WARNING: NEVER use sharp tools when assembling the power switch, as they may damage the insulation on the wires. If you are unfamiliar with electrical work, contact an authorized professional to perform the install.
-
Page 12: Cutting Meat
WARNING LABELS: B1 - ALWAYS KEEP HANDS AWAY FROM BLADE. B2 - NEVER INSERT YOUR HAND INTO GRINDER INTAKE B3 - KEEP HANDS A SAFE DISTANCE FROM THE TRANSMISSION SHAFT WHEN REMOVING THE GRINDER. ALWAYS read through this manual, especially the WARNINGS and CAUTIONS, before each use. ASSEMBLING THE TABLE, FENCE &... -
Page 13: Replacement Parts
USING THE MEAT GRINDER WARNING: NEVER attempt to grind bones or frozen meat as they may damage the grinder. WARNING: NEVER use fingers, utensils or anything other than the food pusher to press meat into the grinder intake. WARNING: ALWAYS turn the product OFF and disconnect from the power supply before attaching or removing any of the accessories/attachments. - Page 14 SG 07.22 sportsmansguide.com Item #424263: GG Electric Meat Cutting Band Saw and Grinder 14 of 14...
