Shelly Qubino Wave PM Mini General User And Safety Manual

Wave PM Mini
L
110 - 240 V AC
N
O O L N
Wave PM Mini
110-240 V AC, 50/60 Hz
max. 16 A / 3840 W @ 240 V AC

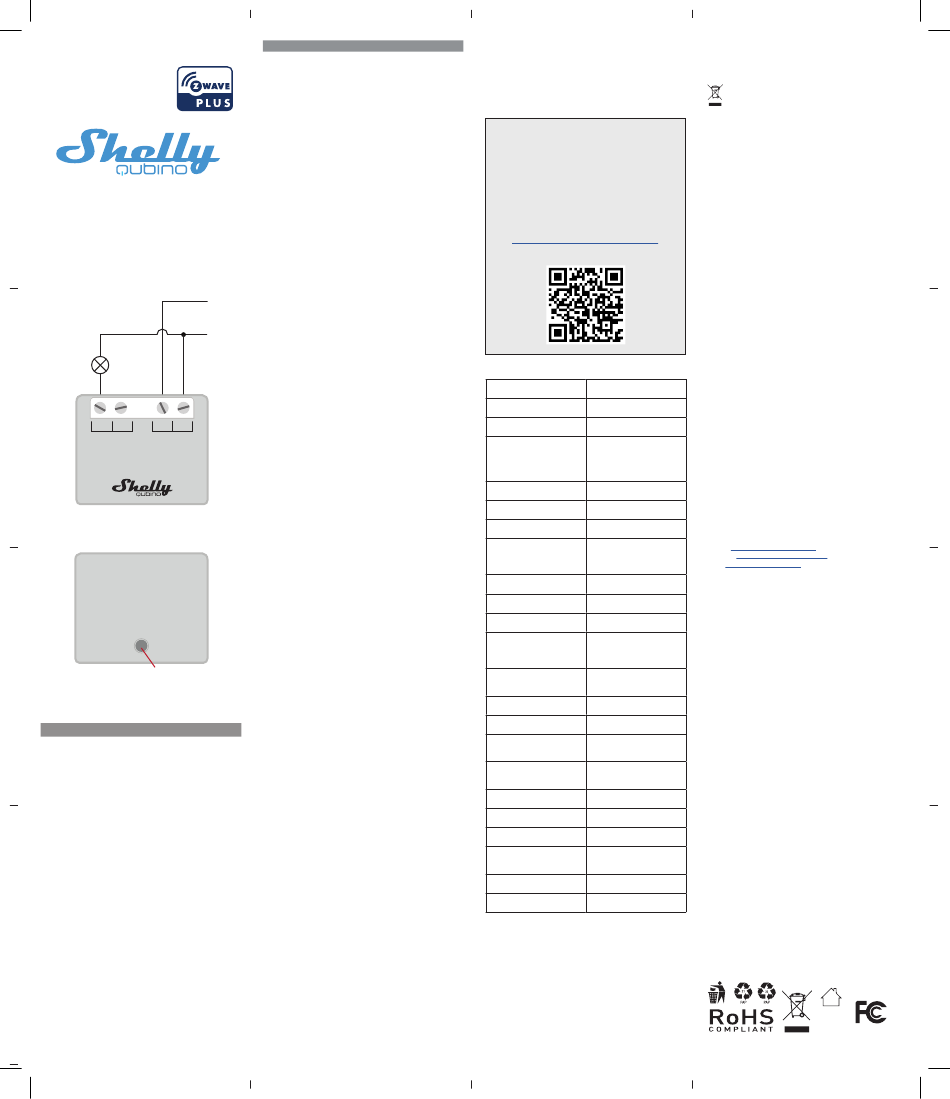

Fig.1/
S
Fig.2/
EN
LEGEND
Device terminals:
• N: Neutral terminal
• L: Live terminal (110–240 V AC)
• O (O1): Load circuit output terminals (bridged internally)
Wires:
• N: Neutral wire
• L: Live wire (110-240 V AC)
Button:
• S: S button (Fig.2)
V 0.0.1
EN
USER AND SAFETY GUIDE
Z-Wave smart power meter
®
READ BEFORE USE
This document contains important technical and safety infor-
mation about the Device, its safe use and installation.
Before beginning the installation, please read care-
⚠CAUTION!
fully and entirely this guide and any other documents accompany-
ing the Device. Failure to follow the installation procedures could
lead to malfunction, danger to your health and life, violation of law
or refusal of legal and/or commercial guarantee (if any). Shelly
Europe Ltd. is not responsible for any loss or damage in case of
incorrect installation or improper operation of this device due to
failure of following the user and safety instructions in this guide.
TERMINOLOGY
Gateway – A Z-Wave gateway, also referred to as a Z-Wave
®
controller, Z-Wave main controller, Z-Wave primary controller,
® ®
or Z-Wave ® hub, etc., is a device that serves as a central hub for
a Z-Wave smart home network. The term "gateway" is used in
®
this document.
S button - The Z-Wave Service button, which is located on
®
Z-Wave devices and is used for various functions such as in-
®
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term "S button" is used in this
document.
Device – In this document, the term "Device" is used to refer to
the Shelly Qubino device that is a subject of this guide.
ABOUT SHELLY QUBINO
Shelly Qubino is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with a
smartphone, tablet, PC, or home automation system. They work
on Z-Wave wireless communication protocol, using a gateway,
®
which is required for the configuration of devices. When the
gateway is connected to the internet, you can control Shelly
Qubino devices remotely from anywhere. Shelly Qubino devic-
es can be operated in any Z-Wave network with other Z-Wave
®
certified devices from other manufacturers. All mains operated
nodes within the network will act as repeaters regardless of
vendor to increase reliability of the network. Devices are de-
signed to work with older generations of Z-Wave devices and
®
gateways.
ABOUT THE DEVICE
The Device is a small form factor smart power meter, which al-
lows remote monitoring of electric appliances power consump-
tion with a load of up to 16 A.
INSTALLATION INSTRUCTIONS
The Device can be retrofitted into standard electrical wall boxes,
behind power sockets and light switches or other places with
limited space.
For the installation instructions, refer to the wiring schemes
(Fig. 1) in this user guide.
Risk of electric shock. Make sure that after in-
⚠WARNING!
stalling the device, its screw terminals are not accessible to
users and protected by accidental short circuits!
The operation of the service button must be man-
⚠WARNING!
aged by a professional installer. Risk of electric shock.
⚠CAUTION! Danger of electrocution. Mounting/installation of
the Device to the power grid has to be performed with caution,
by a qualified electrician.
⚠CAUTION! Danger of electrocution. Every change in the
connections has to be done after ensuring there is no voltage
present at the Device terminals.
Use the Device only with a power grid and appli-
⚠CAUTION!
ances that comply with all applicable regulations. A short circuit
in the power grid or any appliance connected to the Device may
damage it.
Do not open the Device. It does not contain any
⚠CAUTION!
parts that can be maintained by the user. For safety and licens-
ing reasons, unauthorized change and/or modification of the
Device is not permitted.
⚠CAUTION! The load current circuit must be secured by a ca-
ble protection switch in accordance with EN60898-1 (tripping
characteristic B or C, max. 10 A rated current, min. 6 kA inter-
rupting rating, energy limiting class 3).
No SELV/PELV circuits may be connected to the
⚠CAUTION!
terminals of the inputs and outputs, including the extension
inputs.
Do not connect the Device to appliances exceed-
⚠CAUTION!
ing the given max. load!
Do not shorten the antenna.
⚠CAUTION!
Place the antenna as far away as
⚠RECOMMENDATION:
possible from metal elements as they can cause signal inter-
ference.
Connect the Device only in the way shown in
⚠CAUTION!
these instructions. Any other method could cause damage and/
or injury.
⚠CAUTION! Do not install the Device where it can get wet.
Do not use the Device if it has been damaged!
⚠CAUTION!
Do not attempt to service or repair the Device
⚠CAUTION!
yourself!
Before starting the mounting/installation of the
⚠CAUTION!
Device, check that the breakers are turned off and there is no
voltage on their terminals. This can be done with a mains volt-
age tester or multimeter. When you are sure that there is no volt-
age, you can proceed to connecting the wires.
Do not allow children to play with the push-but-
⚠CAUTION!
tons/ switches connected to the Device. Keep the devices for
remote control of Shelly Qubino (mobile phones, tablets, PCs)
away from children.
Connect the Device using solid sin-
⚠RECOMMENDATION:
gle-core cables or stranded cables with ferrules. The cables
should have insulation with increased heat resistance, not less
than PVC T105°C (221°F).
away from children.
For inductive appliances that cause
⚠RECOMMENDATION:
voltage spikes during switching on/off, such as electrical mo-
tors, fans, vacuum cleaners and similar ones, RC snubber (0.1
µF / 100 Ω / 1/2 W / 600 VAC) should be connected parallel
to the appliance.
Connect the load-s to the O terminals of the Device and the Neu-
tral wire, as shown on Fig. 1.
Connect the Live wire to an L terminal of the Device.
Connect the Neutral wire to a N terminal of the Device.
EXTENDED USER GUIDE
For more detailed installation instructions,
use cases, and comprehensive guidance
on adding/removing the Device to/from
a Z-Wave network, factory reset, LED
®
signalization, Z-Wave ® command classes,
parameters, and much more, refer to the
extended user guide at:
®
https://shelly.link/WavePMMini-KB-US
SPECIFICATIONS
Power supply 110-240 V AC, 50/60 Hz
Power consumption < 0.3 W
®
Power measurement (W) Yes
External protection 10 A, tripping characteristic
B or C
6 kA interrupting rating
Energy limiting class 3
Max. measurement power 3840 W
Max. measurement current 16 A
Overheating protection Yes
Distance Up to 40 m indoors (131
ft.) (depends on local
condition)
Z-Wave repeater Yes
®
CPU Z-Wave S800
®
Z-Wave frequency bands 908.4 MHz
®
Maximum radio frequency < 25 mW
power transmitted in
frequency band(s)
Size (H x W x D) 29x35x16 ±0.5 mm /
1.11x1.35x0.63 ±0.02 in
Weight 13 ±1 g / 0.46 ±0.04 oz
Mounting Wall box
Screw terminals max. 0.4 Nm / 3.54 lbin
torque
Conductor cross section 0.5 to 1.5 mm² / 20 to
16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Color Light grey
Ambient temperature -20°C to 40°C / -5°F to
105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.
SUPPORTED LOAD TYPES
Resistive (incandescent bulbs, heating devices)
Inductive with RC Snubber (LED light drivers, transformers,
fans, refrigerators, air-conditioners)
Capacitive (capacitor banks, electronic equipment, motor start
capacitors)
IMPORTANT DISCLAMER
Z-Wave® wireless communication may not always be 100%
reliable. This Device should not be used in situations in which
life and/or valuables are solely dependent on its functioning. If
the Device is not recognized by your gateway or appears incor-
rectly, you may need to change the Device type manually and
ensure that your gateway supports Z-Wave Plus® multi-channel
devices.
DISPOSAL & RECYCLING
This refers to the waste of electrical and electronic equipment.
It is applicable in the US and other countries to collect waste
separately.
This symbol on the product or in the accompanying literature
indicates that the product should not be disposed of in the daily
waste. Wave PM Mini US must be recycled to avoid possible
damage to the environment or human health from uncontrolled
waste disposal and to promote the reuse of materials and
resources. It is your responsibility to dispose of the device
separately from general household waste when it is already
unusable.
FCC NOTES
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause un-
desired operation. The manufacturer is not responsible for any
radio or TV interference caused by unauthorized modification or
change to this equipment. Such modifications or change could
void the user's authority to operate the equipment. This equip-
ment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
RF exposure statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. The device has been
evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
ORDERING CODE: QMEM-0A1PC16US
MANUFACTURER
Shelly Europe Ltd.
Address: 103 Cherni vrah Blvd., 1407 Sofia, Bulgaria
Tel.: +359 2 988 7435
E-mail: zwave-shelly@shelly.cloud
Support: https://support.shelly.cloud/
Web: https://www.shelly.com
Changes in the contact data are published by the Manufacturer
at the official website.
FCC ID: 2BDC6-WAVEPMMINI
