- Page 1 HDMI 2.0/12G-SDI Signal Generator User Manual 500830-V2 © MuxLab Inc. 2024 94-001048-A/SE-001048-A...
-
Page 2: Table Of Contents
3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Product Panel Overview............................6 6.1 Front Panel................................6 6.2 Rear Panel................................6 7. Operation Control & Function..........................7 8. USB Port Serial Driver Installation........................12 9. Cascading the Control Bus..........................12 10. Applications................................13 © MuxLab Inc. 2024 94-001048-A/SE-001048-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction

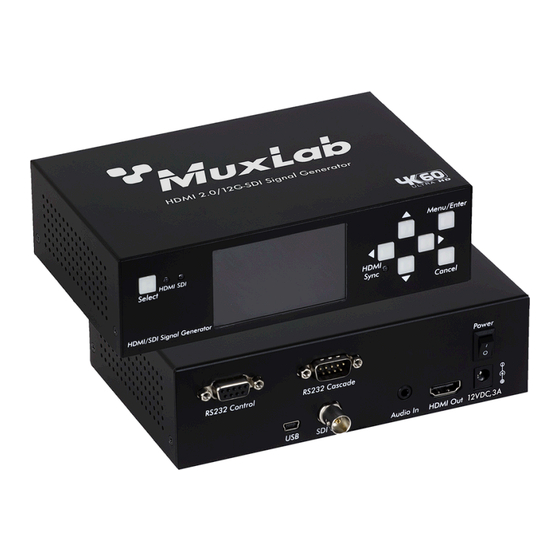

HDMI 2.0/12G-SDI Signal Generator 2. Introduction The HDMI 2.0/12G-SDI Signal Generator (model: 500830-V2) is a portable test tool that can generate HD/3G/12G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their sink devices. -
Page 5: Specifications
6.69 x 1.97” x 4.29” (170mm x 50mm x 109mm), not including connectors Dimensions Weight 2.80lbs (1.27kg), shipping weight Regulatory: FCC, CE, RoHS Flammability: 94V0 Compliance 2 years Warranty Order Information 500830-V2 HDMI 2.0/12G-SDI Signal Generator (UPC: 627699018309) Companion Product 500831 HDMI 2.0/3G-SDI Signal Analyzer (sold separately) © MuxLab Inc. 2024 94-001048-A/SE-001048-A... -
Page 6: Product Panel Overview
HPD is not present from the sink device. The link will blink if an EDID error exists. 5. Convenient and ergonomic buttons for operating and navigating menus and settings with Up, Down, Left, Right, Enter (Menu) and Cancel buttons. 6.2 Rear Panel © MuxLab Inc. 2024 94-001048-A/SE-001048-A... -
Page 7: Operation Control & Function
SDI Out LED is On. If this LED is Off, but the HDMI Out LED is On, then press the ‘Select’ button to change to SDI mode. © MuxLab Inc. 2024 94-001048-A/SE-001048-A... - Page 8 The main menu is located on the left portion of the screen, which allows for serial port selection, Auto Search machine function, Address Management function, Output port on/off and information via OSD showing video and audio parameters. © MuxLab Inc. 2024 94-001048-A/SE-001048-A...
- Page 9 HDMI 2.0/12G-SDI Signal Generator b) Timing control menu: c) Timing detail menu: © MuxLab Inc. 2024 94-001048-A/SE-001048-A...
- Page 10 HDMI 2.0/12G-SDI Signal Generator d) Pattern select menu: e) Setting menu: © MuxLab Inc. 2024 94-001048-A/SE-001048-A...
- Page 11 (Bus), these devices must have unique (different) identification address. Each address can have a binding note, which has at most 10 characters. After the address table is saved, it can be selected via the address selector on the main menu. © MuxLab Inc. 2024 94-001048-A/SE-001048-A...
-
Page 12: Usb Port Serial Driver Installation
4. There are two RS232 ports. The first RS232 port is used for control, while the second RS232 port is for cascading and can be used to connect to the next Signal Analyzer down-stream. In this way, many Signal Analyzers can be cascaded and controlled easily. © MuxLab Inc. 2024 94-001048-A/SE-001048-A... -
Page 13: Applications
RS232 Cascade port to the next down-stream Signal Analyzer or Signal Generator RS232 Control port, and so on. 10. Applications The HDMI 2.0/12G-SDI Signal Generator (500830-V2) is intended to be used to test HDMI sink devices, which may include HDMI or SDI matrix, switches, Switchers, splitters, TV sets, etc. (see figure below). - Page 14 HDMI 2.0/12G-SDI Signal Generator 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: HDMI 2.0/12G-SDI Signal Generator 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500830-V2 salesteam@muxlab.com | www.muxlab.com Follow us:...
