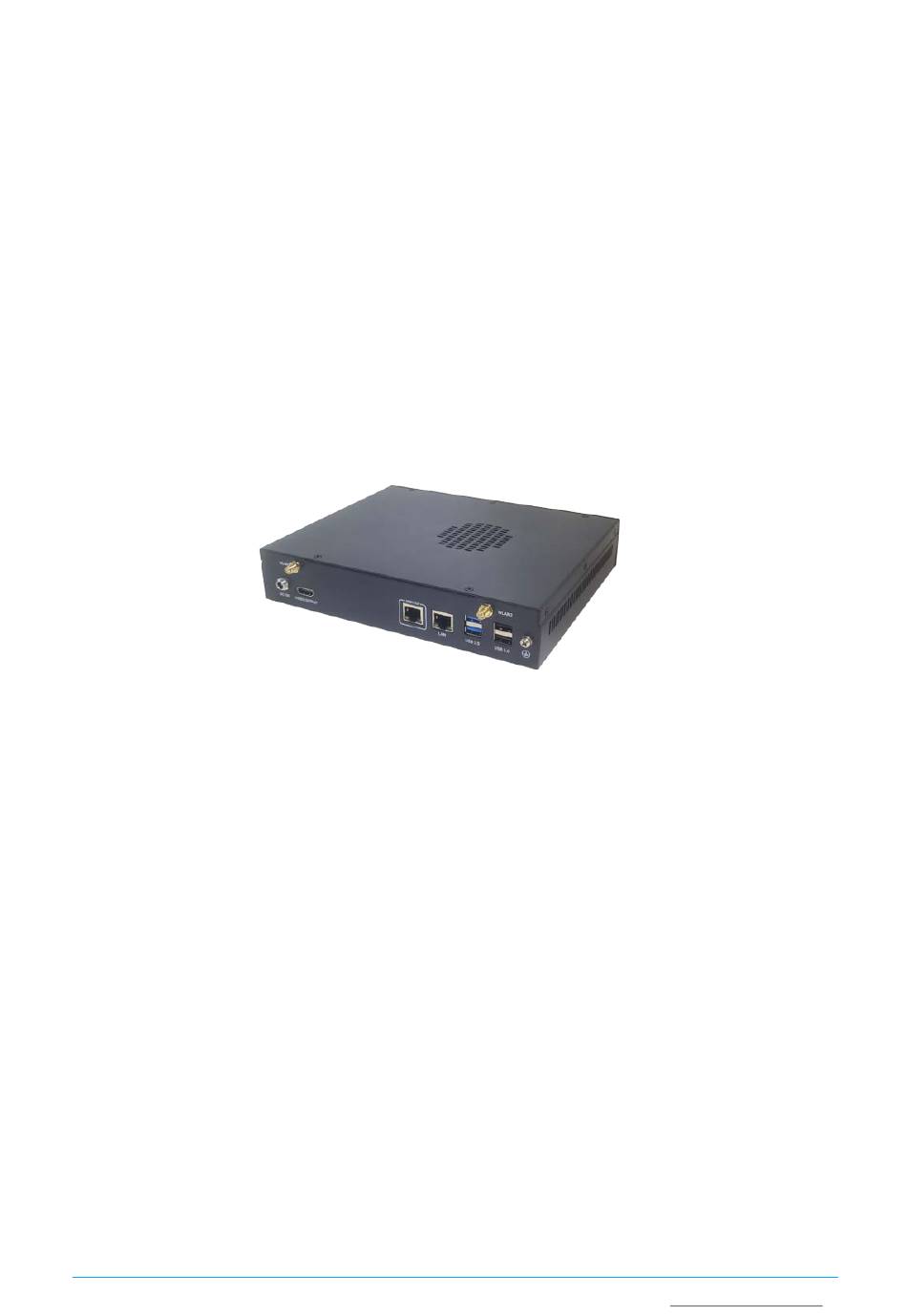

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions HT6200 HDBaseT Multimedia Player User Manual Version: 1.2 © Vantron Technology, Inc. All rights reserved. HT6200 | User Manual www.vantrontech.com...
- Page 2 World-leading provider of embedded/IoT products and solutions Revision History: Version Description Date V1.0 First release Jan. 27, 2023 V1.1 Added a topology for 4K video output July. 16, 2023 Added description on using the watchdog V1.2 Dec. 25, 2023 timer tool HT6200 | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
4.4.2 Making a Bootable USB Drive for Windows 10 ............29 4.4.3 System installation ....................30 Driver Introduction ....................31 Watchdog Timer ...................... 32 CHAPTER 5 DISPOSAL AND WARRANTY ................33 Disposal ........................34 Warranty ........................35 Appendix Regulatory Compliance Statement ..............36 HT6200 | User Manual www.vantrontech.com... -
Page 4: Foreword
Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual. - Page 5 Please refer to the Appendix for Regulatory Compliance Statement. Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations HT6200 | User Manual www.vantrontech.com...
- Page 6 The use or placement of the operation tools shall comply with the code of practice of • such tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. HT6200 | User Manual www.vantrontech.com...
- Page 7 • Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector • Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • •...
-
Page 8: Chapter 1 Introduction
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION HT6200 | User Manual www.vantrontech.com... -
Page 9: Product Overview
The only difference between the models under HT6200 is the number of the HDBaseT output ports: 1 for HT6201 and 2 for HT6202. -
Page 10: Terminology
Output Input/output Power or ground Analog Media Dependent Interface HDBT HDBaseT HDSRC Handwritten digit string recognition Digital Drive Controller Universal Serial Bus CK/CLK Clock (Line) SSRX Super speed receive signal SSTX Super speed transmit signal HT6200 | User Manual www.vantrontech.com... -
Page 11: Unpacking
& power cord 2 x Wi-Fi & BT antenna 1 x Qualified certificate Actual accessories might vary slightly from the list above as the customer order might be different from the standard configuration options. HT6200 | User Manual www.vantrontech.com... -
Page 12: Specifications
Mechanical Installation VESA (75mm x 75mm, M3 x 6mm) Heat dissipation Operating: 0℃ ~ +40℃ Temperature Storage: -20℃ ~ +60℃ Environment Operating: 10%~90% RH (non-condensing) Condition Humidity Storage: 5%~95% RH (non-condensing) Certification CE, FCC, CCC HT6200 | User Manual www.vantrontech.com... -
Page 13: Product Layout
Device Blue: The device is turned on powered up Red: The device is turned off LED indicator Device not LED indicator is off powered up Reset button Restart the device upon a short press HT6200 | User Manual www.vantrontech.com... - Page 14 Connect the device to an electrical ground to prevent Grounding screw potential electrical hazards Main antenna for maintaining stable and strong wireless Wi-Fi main antenna connection Diversity antenna for maintaining stable and strong Wi-Fi diversity antenna wireless connection HT6200 | User Manual www.vantrontech.com...
-
Page 15: Operating System
225mm x 180.8mm x 44mm 1.9 Power Characteristics HT6200 is designed to work with 12V ~ 24V DC power input via the power jack on the back of the device, with a recommended current of 5A. The power consumption of the device is about 65W without connecting peripherals. -
Page 16: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED HT6200 | User Manual www.vantrontech.com... -
Page 17: Uhd Video Output Topology
CAT 5e or better cable and an HDMI cable for 4K UHD output at a maximum distance of 100 meters. Scenario 3: Use a CAT 5e or better cable to connect HT6200 to a display that has an HDBaseT input port for 4K UHD output at a maximum distance of 100 meters. -
Page 18: Setting Up The Device
In the following section, the outline drawings of HT6201 are used for illustration of its application in scenario II as set out in 2.1. 1. Install HT6200 to any appropriate arm or rack with a 75 x 75 VESA pattern; Screw recommended: M3 x4 Thread depth: 6mm 2. - Page 19 Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 4. Connect any of the HDBaseT output port of HT6200 to an HDBaseT receiver using a CAT 5e or better cable; HT6200 HDBaseT receiver 5.
-
Page 20: Chapter 3 Harware Description
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 HARWARE DESCRIPTION HT6200 | User Manual www.vantrontech.com... -
Page 21: Power Jack
This section briefs on the hardware definition and connector/jumper pinout. 3.1 Power Jack HT6200 is designed to work with 12V ~ 24V DC power input via the power jack on the back of the device. Specification of the power jack: 2.5mmd, 5.5mmD, 5A, 24V, Male, Lock, WDT, THR, RoHS 3.2 Ethernet Jack... -
Page 22: Hdbaset Output Ports
Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.3 HDBaseT Output Ports HT6200 offers one/two HDBaseT output ports intended for connecting different HDBaseT technology compatible receives/displays to extend display. HT6201 has one port and HT6202 has two ports. - Page 23 Ethernet MDI0- Signal HDSRC_P1_R Ethernet MDI1+ Signal HDSRC_N1_R Ethernet MDI1- Signal HDBT_B_+1.8V POWER HDBT_B_+1.8V POWER HDSRC_P2_R Ethernet MDI2+ Signal HDSRC_N2_R Ethernet MDI2- Signal HDSRC_P3_R Ethernet MDI3+ Signal HDSRC_N3_R Ethernet MDI3- Signal HDBT_B_+3.3V POWER HBTB_HDMI_HDCP_LED HDBT_B_+3.3V POWER HBTB_LINK_HDBT_LED HT6200 | User Manual www.vantrontech.com...
-
Page 24: Hdmi (Video Output)
World-leading provider of embedded/IoT products and solutions 3.4 HDMI (Video output) HT6200 offers an HDMI 1.4b (Type-A) with resolution up to 3840 x 2160 @30Hz for delivering high-definition video and high-resolution audio. Specification: Type-A, No FLN, Female, Right Angle, WDT, SMT, RoHS... -
Page 25: Usb 3.0
World-leading provider of embedded/IoT products and solutions 3.5 USB 3.0 HT6200 implements two stacked USB 3.0 Type-A ports ideally for connecting USB peripherals such as a keyboard, mouse, scanner, bootable USB device, etc. Specification: 3.0, Type A, 2 Ports, Female, 17.5mmL, Right Angle, WDT, THR, RoHS... -
Page 26: Usb 2.0
World-leading provider of embedded/IoT products and solutions 3.6 USB 2.0 HT6200 implements two stacked USB 2.0 Type-A ports ideally for connecting USB peripherals such as a keyboard, mouse, scanner, bootable USB device, etc. Specification: 2.0, Type A, 2 Ports, Female, 17.5mmL, Right Angle, WDT, THR, RoHS... -
Page 27: Reset Button
World-leading provider of embedded/IoT products and solutions 3.9 Reset Button HT6200 provides a reset button for rebooting the device without using the ON/OFF button. 3.10 3.5mm Combo Audio Jack HT6200 offers a 3.5mm combo audio jack, designed to connect a headphone for immersive gaming, conference experiences or to connect an amplifier for use in such scenarios as digital signages, malls or remote diagnosis. -
Page 28: Chapter 4 Software Setup
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 SOFTWARE SETUP HT6200 | User Manual www.vantrontech.com... -
Page 29: System Information
• Default settings need to be customized. Please be aware that BIOS will be under continuous update for better system performance, therefore the description in this chapter might vary slightly and is for reference only. HT6200 | User Manual www.vantrontech.com... -
Page 30: Bios Setup
Security: System security settings where users can set the administrator and user passwords, manage the passwords, implement secure boot, etc. Boot: System boot options, boot manager, etc. • • Exit: BIOS load or exit options with or without changes saved HT6200 | User Manual www.vantrontech.com... -
Page 31: Selecting A Boot Option
UEFI USB Device/UEFI USB Device2 are specific boot entries associated with the USB device. This option allows you to boot the device from this bootable device. Please refer to 4.4.2 Making a Bootable USB Drive for Window 10 for the details of making a bootable USB device. HT6200 | User Manual www.vantrontech.com... -
Page 32: Installing Windows 10 System
4.4.1 Prerequisites • A USB drive with capacity no less than 8GB, preferably supporting USB 3.0 • Software release package of HT6200 A program for making the bootable device: rufus-xxx .exe (available in the release • package, usually in \4 Sw-Tests) •... -
Page 33: System Installation
3. Press F7 during the boot process to access the BIOS Boot Manager menu; 4. Select the bootable USB drive you just created for Windows system and press ENTER; 5. Wait for the installation of Windows on HT6200. HT6200 | User Manual... -
Page 34: Driver Introduction
Required if you plan to use the GPIO host controllers To manage the Intel CSME firmware To enable communication between the COM port on the device USB2COM and the target USB port To provide various features and enhancements for wireless and WIFI&BTH Bluetooth connectivity HT6200 | User Manual www.vantrontech.com... -
Page 35: Watchdog Timer
Feed WDT button to feed the dog, the time will be reset. If you click the Stop Feed WDT button or stop clicking the Feed WDT button during the countdown, the device will restart after the countdown finishes. HT6200 | User Manual www.vantrontech.com... -
Page 36: Chapter 5 Disposal And Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND WARRANTY HT6200 | User Manual www.vantrontech.com... -
Page 37: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. HT6200 | User Manual www.vantrontech.com... -
Page 38: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON. -
Page 39: Appendix Regulatory Compliance Statement
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. HT6200 | User Manual www.vantrontech.com...
