Elite Acoustics Engineering Gig-ISO 4 Manual

High current transformer isolated pedalboard power supply with 4 outputs
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Elite Acoustics Engineering
Gig-ISO 4
High Current Transformer Isolated
Pedalboard Power Supply with 4
outputs

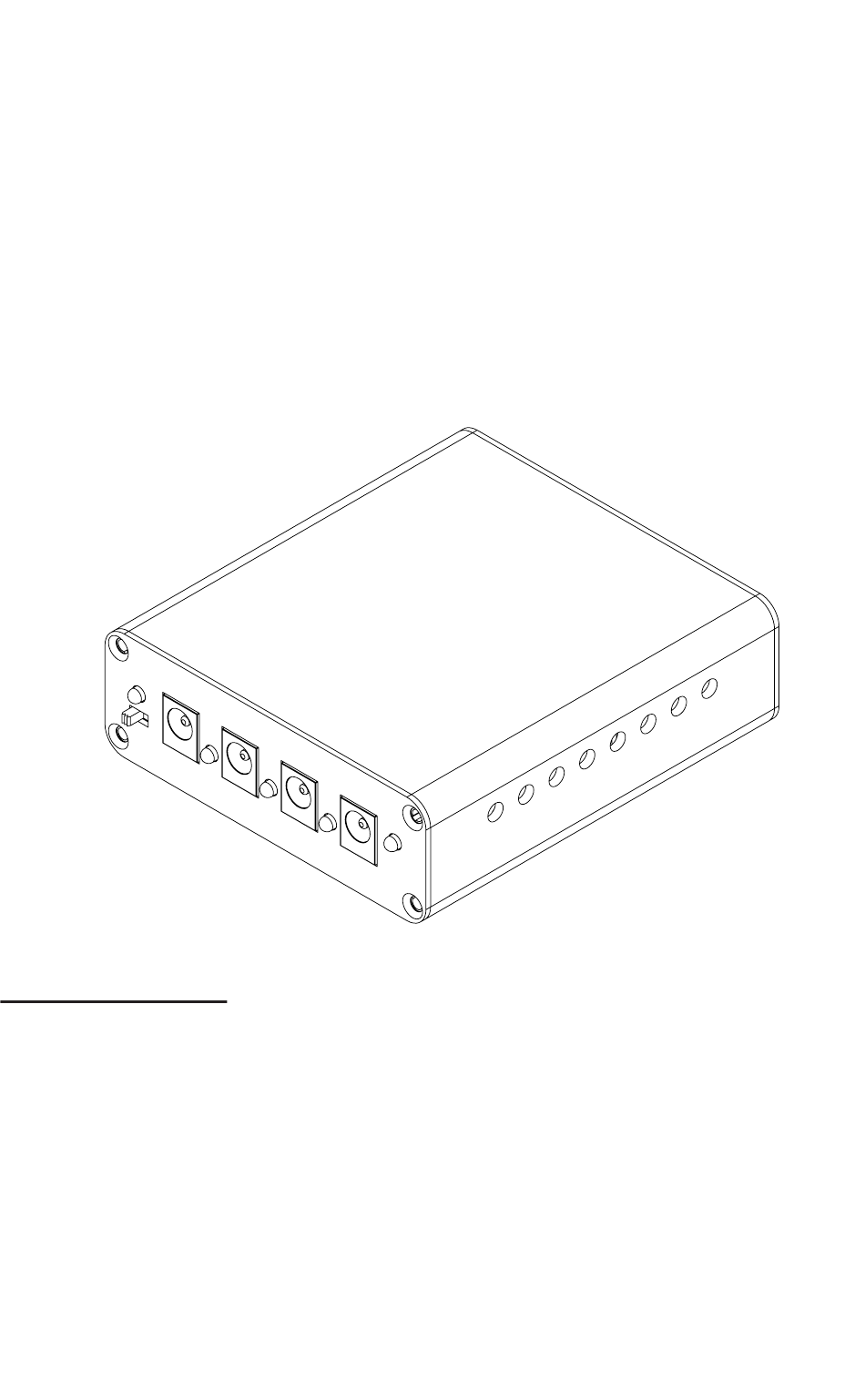

WHAT IS IN THE BOX
Your Gig-ISO 4 package contains the following:
(1) Gig-ISO 4 unit
(1) AC to 12VDC Power Supply Adapter
(2) BLACK (5.5/2.1mm) to BLACK (5/2.1mm) 9"
(2) BLACK (5.5/2.1mm) to BLACK (5/2.1mm) 18"
(1) BLACK (5.5/2.1mm) Center Negative to RED (5/2.1mm) REVERSE Center Positive
- 18"
-*use this type BLACK to RED for reverse polarity from Pedal Power supply (center
negative) to StompMix 4 or GigMix 4-1*
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
For more technical questions, please visit: www.eliteacoustics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gig-ISO 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Acoustics Engineering Gig-ISO 4

  • Page 1 High Current Transformer Isolated Pedalboard Power Supply with 4 outputs WHAT IS IN THE BOX Your Gig-ISO 4 package contains the following: (1) Gig-ISO 4 unit (1) AC to 12VDC Power Supply Adapter (2) BLACK (5.5/2.1mm) to BLACK (5/2.1mm) 9”...
  • Page 2 Front View Output 1 Selectable +9VDC 500mA or +12VDC 500mA Outputs 2 to 4 +9V DC 500mA with GREEN LED Indicators Power LED BLUE...
  • Page 3 DC INPUT THRU Rear View DC input +12VDC to +24VDC Minimum 2000mA DC INPUT DC THRU Ouput Same as INPUT voltage. THRU...
  • Page 4 SYSTEM SPECIFICATIONS • System: Built in a Aluminum Extrusion case, each output is isolated by it’s individual Transformer. • Output 2 - 4 : Isolated, Center Negative, 9VDC 500mA . Output 1: Isolated, Center Negative, Selectable +9VDC (500mA) or +12VDC (500mA) •...
  • Page 5 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
