Summary of Contents for Toolots KD-1400W

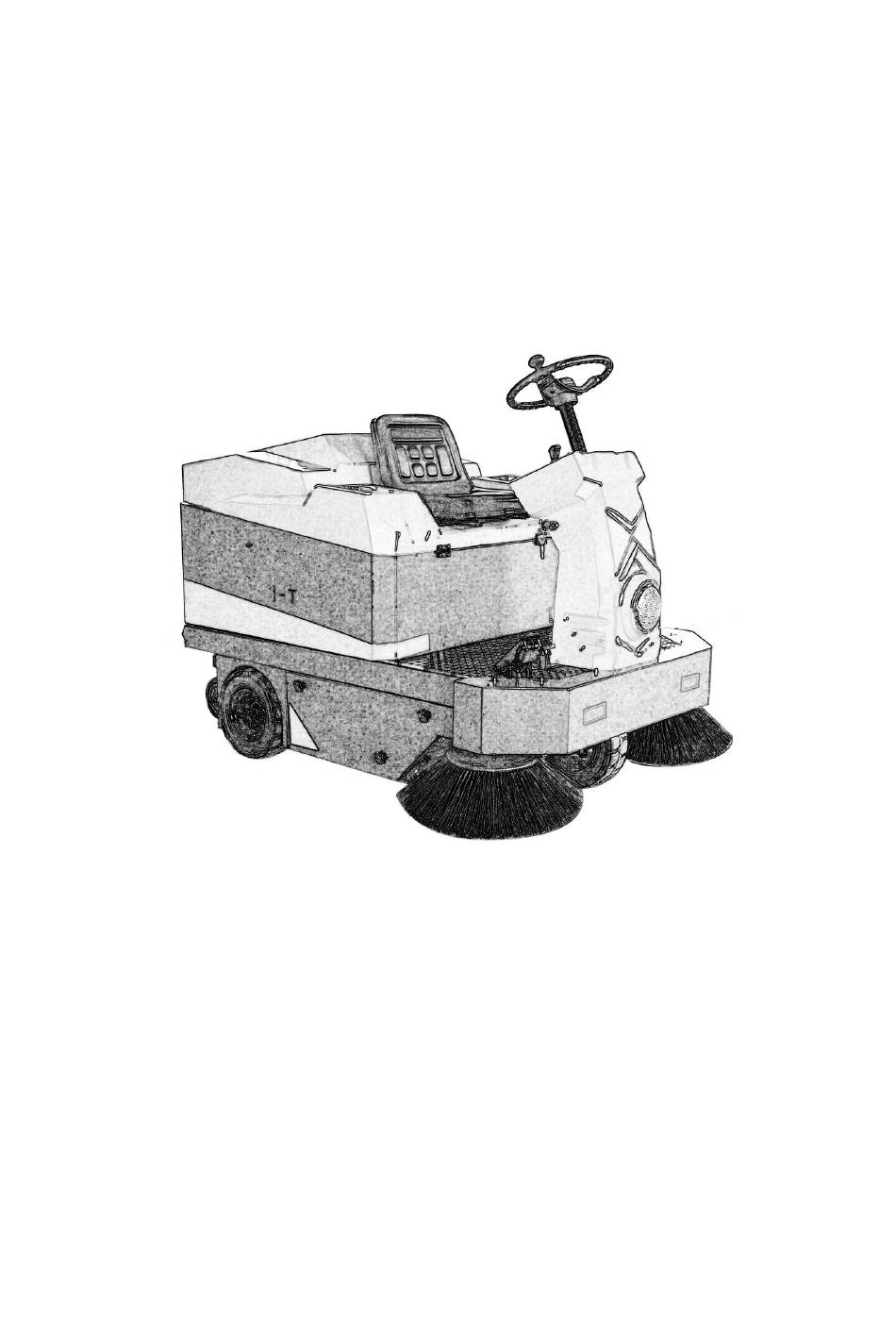

- Page 1 Operating instruction KD‐1400W...
- Page 2 Pay attention to!!! 1、this machine is used only as a cleaning tool, and for any other purpose than the instructions stated in this guide, we shall not be liable for any damage resulting therefrom. 2、This sweeper can clean the general garbage,should not clean the rope,toxic and harmful, high temperature debris, so as not to wrap, burning the main brush and side brush, so that it can not work normally.
- Page 3 Sweeper operation instructions Turn on the power switch to confirm that the machine power is normal; the normal voltage is 48 to 54 V, and 48 volts. Do not use power loss. The battery must be charged as soon as possible. It is forbidden to store it for a long time without electricity.
- Page 4 Introduction of the sweeper parameters content parameter unit voltage Clean the width Main brush width 27.5 Brush the diameter Working efficiency 64585‐96878 sqft/h Working time Dumpster capacity Walking motor Rolling brush motor 1.07 Brush the motor 0.13 Speed of travel 0‐12 Km/h Battery capacity...
- Page 5 The adjustment of brush The main function of edge brush is to use its own rotation to collect the garbage on both side to the middle, from the main brush to the dustbin. The advantage of edge brush is that it can sweep out the garbage at the corners and dead corners, and improve the cleaning efficiency.
- Page 6 Adjustment of main brush The width of the main brush touching the ground should be 2‐4mm. When the main brush touches the ground too wide, the normal operation of the machine will be affected, and the spare parts are easy to heat up, reducing the service life of the machine.
- Page 7 Filter cleaning and replacement The garbage filter element needs to be checked regularly. When the filter cannot be cleaned or damaged, it needs to be replaced. As shown in the following figure, clean the filter element steps: 1、Unplug the dust motor plug; 2、Unscrew the 4 hand screw nuts;...
- Page 8 Common fault description question cause handle Reduce the speed of Work too fast working The sweeper leaks too The brush pressure is too Adjust the pressure of the large leaves or large small brush particles of garbage The bristles are deformed Remove the winding or wrapped with filaments material...
- Page 9 The battery burned Replace the battery Charger damage Replace the charger The electric dust device is Switch bad Change the switch not working The fuse burned Change the fuse The motor load is too large Check and reduce the load Motor damage Replace the motor Bearing wear and tear...
