Revision
Date
1.0
May 23, 2024
HDZero Monitor User Manual
Description
Initial draft
For more product information, please visit:
www.hd-zero.com
All Rights Reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOZERO HDZero and is the answer not in the manual?

Questions and answers

Summary of Contents for DIVIMATH HOZERO HDZero

  • Page 1 HDZero Monitor User Manual Revision Date Description May 23, 2024 Initial draft For more product information, please visit: www.hd-zero.com All Rights Reserved...
  • Page 2: Table Of Contents

    Contents Introduction ..............................3 Diagram ..............................3 Features ..............................5 Specification .............................. 5 Included Accessories ..........................5 Power ................................ 6 Firmware Update ............................6 Band & Channel ............................6 To Change Channel ..........................7 To Change Band ............................ 7 Sources ..............................7 To Change Source ..........................
  • Page 3: Introduction

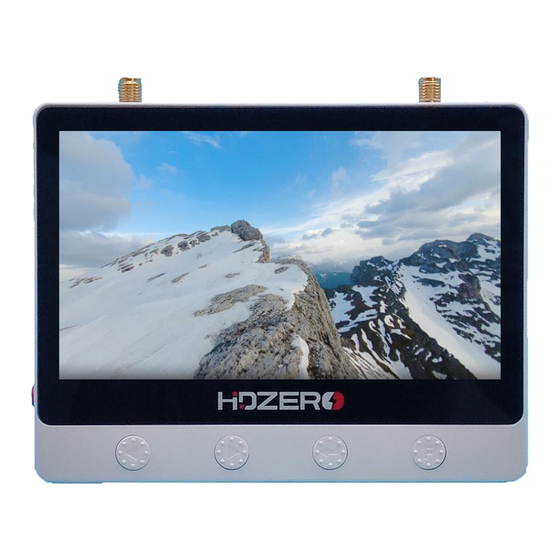

    Introduction Experience seamless viewing of HDZero and Analog video feeds with the HDZero Monitor. Similar to the HDZero Event VRX that is widely used for major racing events, this monitor effortlessly detects the transmission type and displays the appropriate feed instantly. With instant power-on functionality and compatibility with a wide range of flight batteries (2s-6s voltage), you can dive into your FPV adventures without delay.
  • Page 4 Battery Box Screw Hole Battery Tie Hole *The product does not include the battery in the box. You can obtain 3D CAD files and print it through the open source community. HDZero & Analog Ant HDZero Ant Video in Audio out Ground...
  • Page 5: Features

    Features ● Instant boot-up – just flip the red slide switch similar to HDZero Goggle ● HDZero/Analog auto-switching (like Event VRX) ● Shared antennas for HDZero and Analog ● 4.3-inch high-brightness (800 nits) 720p LCD with anti-glare screen protector ● Deinterlaced/Up-scaled analog video with adaptive comb filter ●...
  • Page 6: Power

    Power HDZero Monitor provides two different power supply interfaces: DC(5.5mm*2.0mm) and XT30. And built-in polarity protection. The voltage range input is 2S-6S(6-25V). Power consumption is approximately 9.0 watts when receiving HDZero video and recording. HDZero Monitor will automatically identify cell counts based on voltage when powered on, and will alarm when the cell voltage is lower than 2.8v(flashing OSD voltage display).
  • Page 7: To Change Channel

    E1 - E8 F1 - F8 R1 - R8 L1 - L8 To Change Channel Press & hold To Change Band Sources HDZero Monitor supports two signal sources: RF In and Line In. For RF In: HDZero Monitor will automatically switch between RF Analog and RF HDZero until the rf signal is locked.
  • Page 8: To Change Source

    To Change Source Recording Insert the SD card into the slot before recording video. The recommended SD card specifications are as follows: 8GB-32GB FAT32, unit size is 4096 Bytes After the SD card is correctly recognized, the SD card OSD located in the upper right corner of the screen will be hidden.
  • Page 9: Osd

    Press & hold You can enable/disable the FC OSD display. You need to set it via the HDZero Programmer App. CAD Model You can download the CAD file from https://github.com/hd-zero/hdzero-tooling, You can print the battery box or sunshield nased on the 3D model.
