- Page 1 Instructions for use LAP-TEQ PLUS Atmosphere...
-
Page 2: Table Of Contents
Before You Begin Table of contents Before You Begin ......................... 3 Intended use ......................... 3 What do the symbols used mean? ..................4 For your safety ..........................5 General safety instructions ....................5 Job security ........................... 5 Electrical safety ........................5 Safety of persons ......................... -
Page 3: Before You Begin
Before You Begin 1 Before You Begin 1.1 Intended use The LAP-TEQ PLUS Atmosphere is an additional sensor in the LAP-TEQ family for ambient temperature and relative humidity that can display the sensor values on the LAP-TEQ display. The temperature can be displayed in °C or °F. The Atmosphere can be connected directly (without connection cable) to the LAP-TEQ display. -
Page 4: What Do The Symbols Used Mean
Before You Begin 1.2 What do the symbols used mean? Hazard warnings and instructions are clearly marked in the instructions for use. The following symbols are used: Danger! Imminent danger of death or injury Immediately dangerous situation that will result in death or serious injury. Warning! Probable danger to life or injury Generally dangerous situation that may result in death or serious injury. -
Page 5: For Your Safety
For your safety 2 For your safety Warning! Failure to comply with the safety instructions and instructions may result in electric shock, fire and/or serious injury Read all safety instructions and instructions. 2.1 General safety instructions • Keep all safety notices and instructions for future reference. The term device used in the safety instructions refers to mains-powered devices (with a power cord) and battery-powered devices (without a power cord). -
Page 6: Service
For your safety 2.5 Service • Have your device repaired only by qualified personnel and only with original spare parts. This ensures that the safety of the power tool is maintained. • When working with the device, make sure that there is sufficient lighting. Poor visibility can lead to an increased risk of accidents. -
Page 7: Product

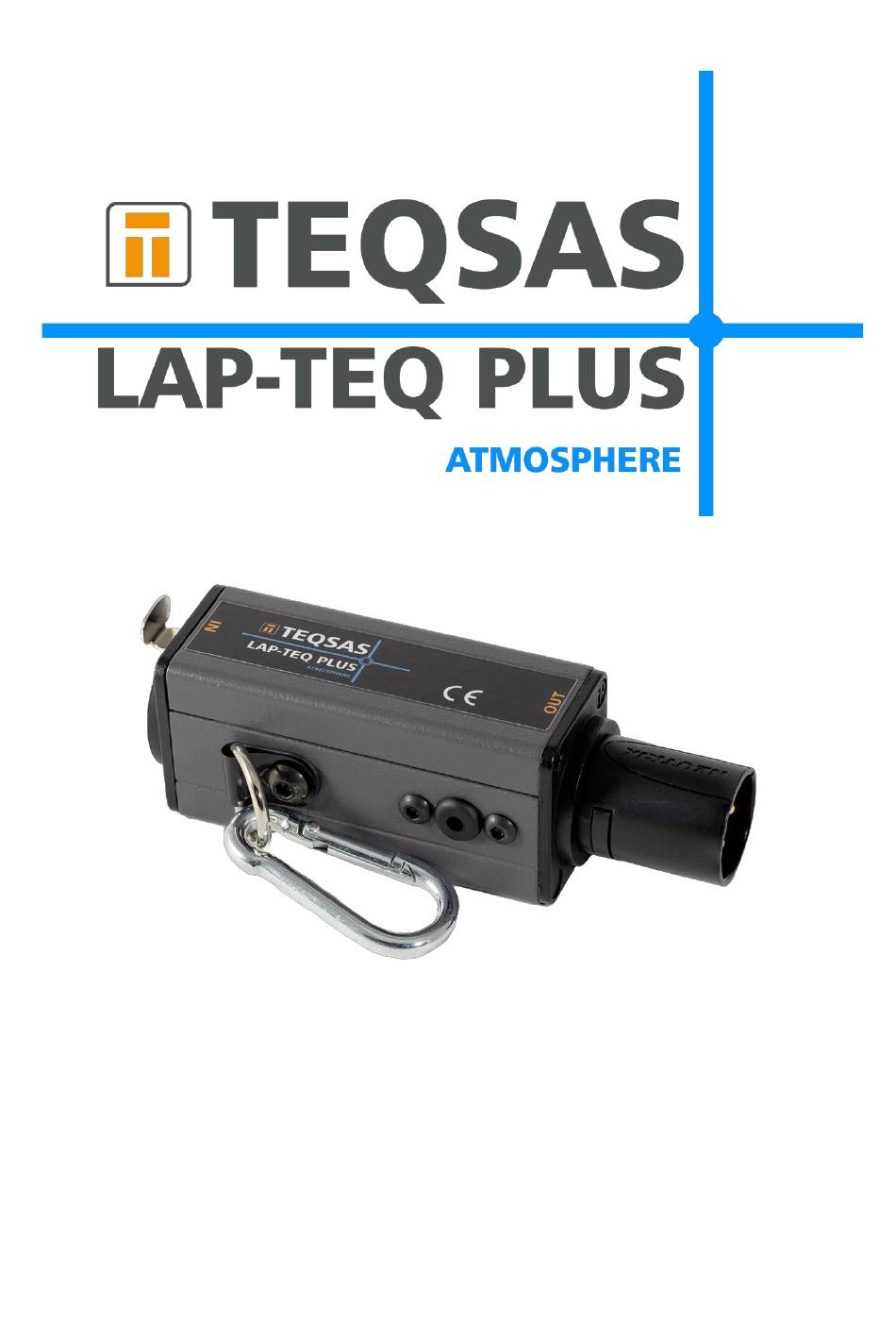

Product 3 Product 3.1 Your device at a glance 1. LAP-TEQ port for additional sensors in daisy-chain operation 2. Output for measurement data 3. Pressure compensation valve for temperature, humidity and pressure sensor... -
Page 8: Commissioning
Commissioning 4 Commissioning 4.1 Connection The Atmosphere can be connected directly to the LAP-TEQ PLUS display (without a connection cable). Other LAP-TEQ sensors can be connected in series. During the startup process, you can choose which sensor you want to see on the respective display options. By default, a combination of the measured values of both sensor types is displayed in daisy-chain operation. -
Page 9: Cleaning And Maintenance
Cleaning and maintenance 5 Cleaning and maintenance Danger! Danger to life due to electric shock! Before working on the device, pull the XLR cable to the display module (power supply). Attention! Risk of device damage! Do not submerge the appliance in water when cleaning, as this can cause water to penetrate the electrical system and damage it. -
Page 10: Faults And Help
If you are unable to fix the error yourself, please contact our service directly. Please note that improper repairs will also void the warranty claim and you may incur additional costs. 6.1 Service Center TEQSAS GmbH Otto-Hahn-Straße 20a 50354 Hürth... -
Page 11: Storage
Storage 7 Storage Clean and dry all parts and store them in a clean and dry place. If you do not use or transport the device for a longer period of time, use the original packaging. -
Page 12: Disposal
Disposal 8 Disposal The packaging is made of environmentally friendly materials that you can dispose of at the local recycling points. Appliances marked with the adjacent symbol must not be disposed of with household waste. You are obliged to dispose of such waste electrical and electronic equipment separately. -
Page 13: Specifications
Specifications 9 Specifications LAP-TEQ PLUS Atmosphere Ab. Ambient temperature for use 0 – 40°C Ab. Ambient temperature for storage -20 – 50°C Dimensions 102 x 25 x 31mm Weight The manufacturer reserves the right to make technical changes to the product/product group without prior notice. -
Page 14: Ec Declaration Of Conformity
In the event of a modification of the device that has not been agreed with us, this declaration loses its validity. Manufacturer: Teqsas GmbH Otto-Hahn-Straße 20a 50354 Hürth The manufacturer is solely responsible for issuing this declaration of conformity.
