Read and understand all instructions before beginning installation. Disconnect power to motor and test upon
completion. Wireless sensing edge systems should be installed by qualified personnel to ensure the requirements
herein have been met. Keep these instructions with the installation. Always abide by local and national electrical code
specifications when wiring accessories to motor controls.
Avoid visible cords and reels with the Two-Channel Wireless Edge Receiver (MWR22B) and Transmitter (MWT12B
and/or MWTA12B) System. This system is designed to provide a wireless signal transmission from a non-monitored
sensing edge to motor controls with on-board diagnostics for easy setup and troubleshooting. The transmitter is
available with an optional audible alarm that activates when the battery has 25% of power remaining. Consult your
manual for detailed instructions about connecting to the motor.
CONTENTS
One of the following:
•
MWR22B Two-Channel Wireless Edge Receiver
•
MWT12B Wireless Edge Transmitter
-
(4) #6 x ¾" self-drilling transmitter mounting screws
-
(2) AA 1.5V alkaline batteries
•
MWTA12B Wireless Edge Transmitter
with Low Battery Alarm
-
(4) #6 x ¾" self-drilling transmitter mounting screws
-
(2) AA 1.5V lithium batteries
Note: To pair a Wireless Edge Transmitter (MWT12B or
MWTA12B) with a Single-Channel Wireless Edge Receiver
(MWR12B), please refer to the installation instructions at
www.milleredge.com.

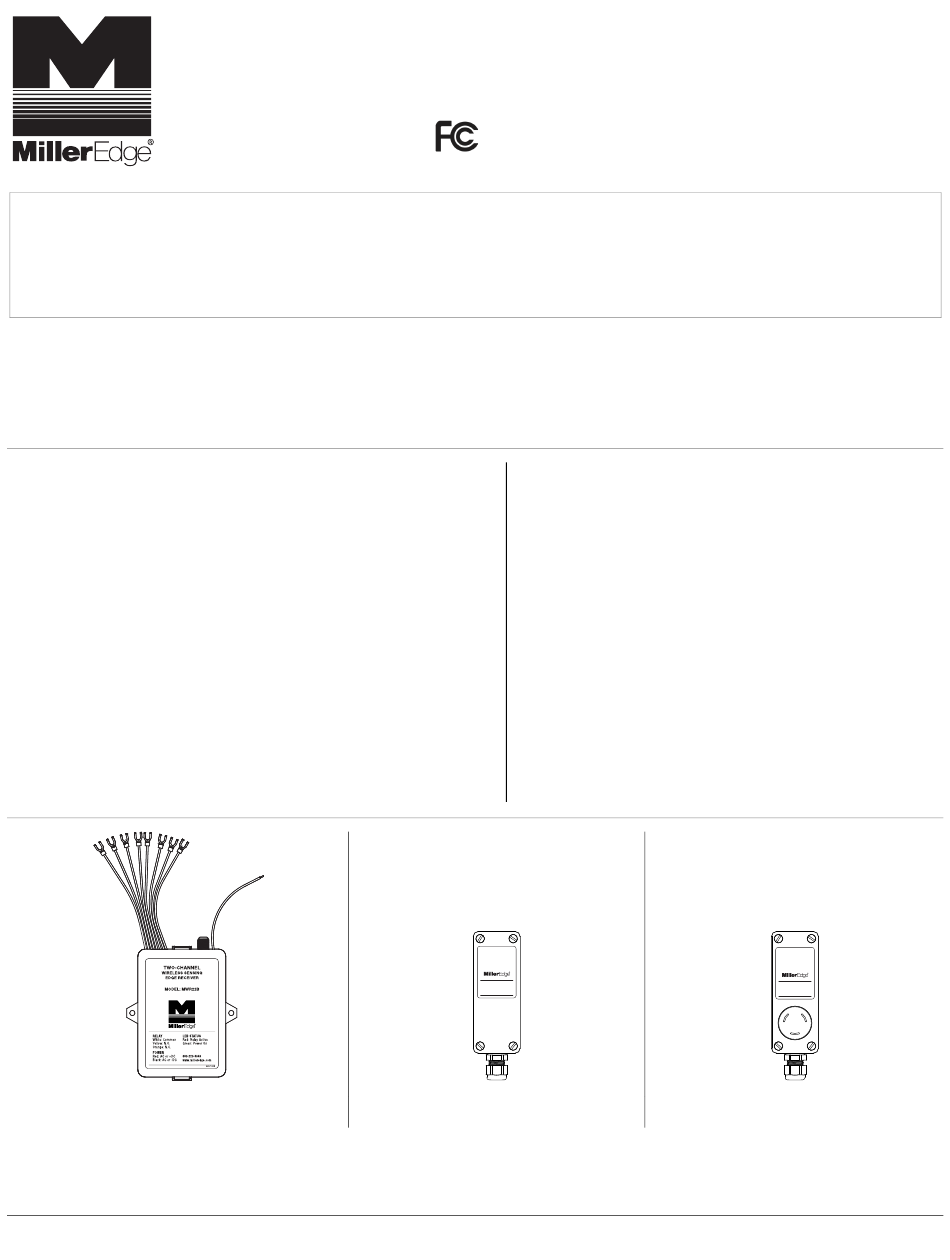

IMAGE 1: MWR22B
Two-Channel Wireless Edge System
www.milleredge.com
Two-Channel Wireless Edge System
WARNING
IMAGE 3: MWT12B
Wireless Edge Transmitter
info@milleredge.com
INSTALLATION INSTRUCTIONS
MODEL: MWR22B, MWT12B, MWTA12B
REQUIRED (not included)
• Miller Edge sensing edge:
- 2-Wire non-monitored
• 1/8" flat blade screwdriver
• 1/4" flat blade screwdriver
• #2 Phillips screwdriver
• 18-26 AWG wire to connect receiver to operator
RECOMMENDED
• Coaxial cable for exterior mounted antenna
• Coaxial bulkhead adapter, female/female
• Multimeter capable of reading measuring continuity
• MET-101 Edge Tester by Miller Edge
• Receiver mounting hardware
• Operator manufacture's manual
Wireless Sensing
Edge Transmitter
MODEL: MWT12B
LED STATUS
Green On:
Edge Active or
Test Button Active
Use (2) 1.5 AA lithium batteries
228-19A
MWR22B-MWT12B-MWTA12B_Inst_20240412
800-220-3343
Wireless Sensing
Edge Transmitter
with Low Battery Alarm
MODEL: MWTA12B
LED STATUS
Green On:
Edge Active or
Test Button Active
Use (2) 1.5 AA lithium batteries
228-19B
IMAGE 3: MWTA12B Wireless Edge
Transmitter with Low Battery Alarm
1/6
Advertisement
Table of Contents
Summary of Contents for Miller Edge MWR22B
- Page 1 Keep these instructions with the installation. Always abide by local and national electrical code specifications when wiring accessories to motor controls. Avoid visible cords and reels with the Two-Channel Wireless Edge Receiver (MWR22B) and Transmitter (MWT12B and/or MWTA12B) System. This system is designed to provide a wireless signal transmission from a non-monitored sensing edge to motor controls with on-board diagnostics for easy setup and troubleshooting.
-
Page 2: Receiver Installation
Two-Channel Wireless Edge System MWR22B, MWT12B, MWTA12B RECEIVER INSTALLATION 1. Remove the operator cover and turn off the power to the operator. 2. Determine where to place the antenna (outside of any metal enclosures) so it is in the line of sight with the transmitter(s) during the entire range of travel. -
Page 3: Transmitter Installation
Two-Channel Wireless Edge System MWR22B, MWT12B, MWTA12B TRANSMITTER II. TRANSMITTER SETUP & PAIRING ENCLOSURE LID 1. Remove the lid of the transmitter and insert the two AA (4) LID SCREWS batteries onto the removable circuit board, paying attention to their polarity. -
Page 4: Final Test
Verify the sensing edge resistance is infinite ohms when not depressed and less than 5 ohms when pressed. IMAGE 6 6. If the system fails to perform after following the above steps, contact Miller Edge Tech Support at 800-220-3343. -
Page 5: Maintenance
The Two-Channel Wireless Edge Receiver (MWR22B) and Transmitter (MWT12B and/or MWTA12B) System carry a 2-year warranty from date of shipment from Miller Edge for credit or replacement. This warranty applies to normal use, which is found to have defective materials or workmanship, as determined solely by an authorized factory representative. - Page 6 The receiver SW9 should always be 0 (center position) for a trinary, and 0 (off) for a binary switch. • SW9 on the transmitter controls which relay on the MWR13 or MWR22B (multi-channel receiver) activates. To change relays, simply change SW9 on the transmitter.
